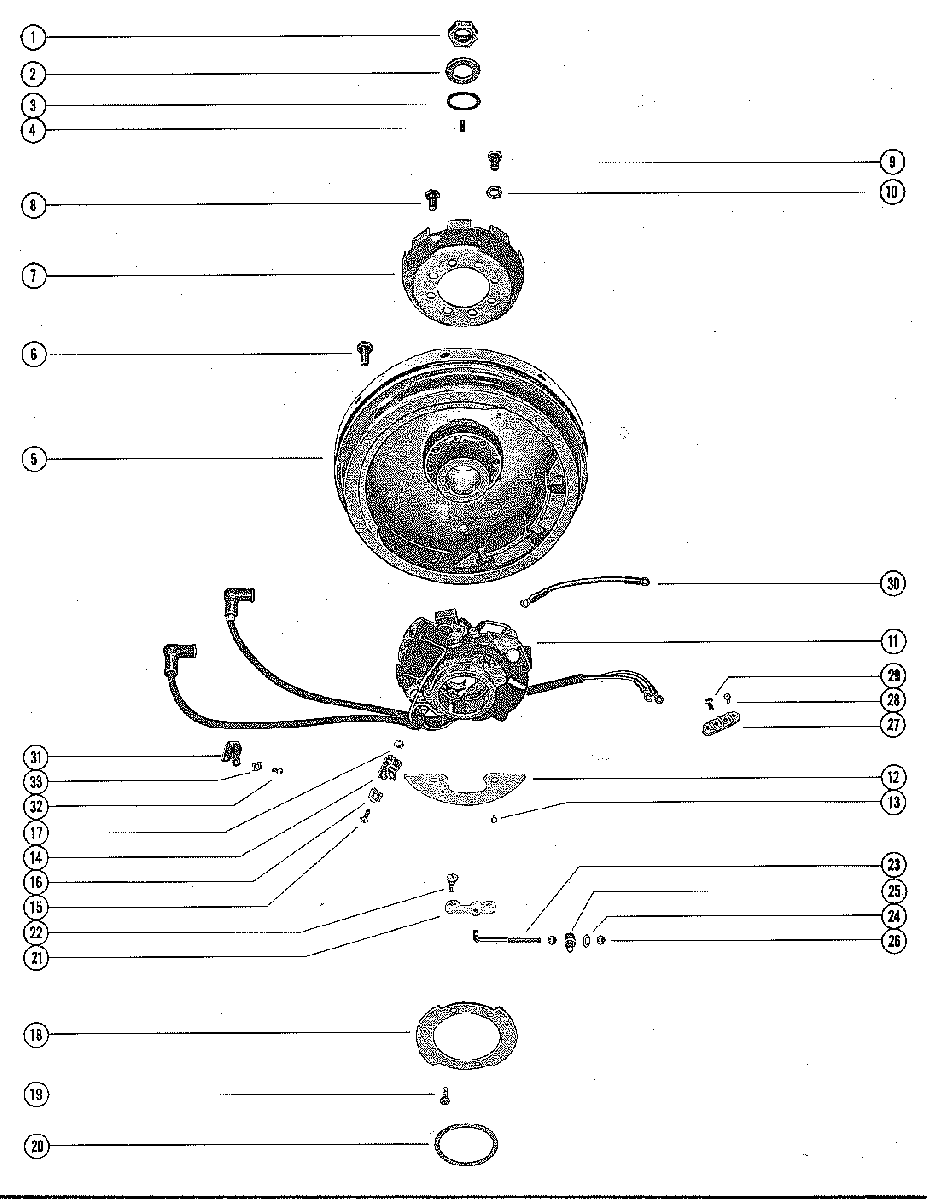

FLYWHEEL ASSEMBLY AND THROTTLE CONTROL LINKAGE для Mercury - 200 2296267 THRU 2827676

  • №
    Артикул
    Название
  • 1
    11-22339 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-36281 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    25-37340 "O" RING, FLYWHEEL HUB
    "O" RING, FLYWHEEL HUB
  • 4
    28-20094 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 5
    221-3347A1 FLYWHEEL ASSEMBLY, COMPLETE
    FLYWHEEL ASSEMBLY, COMPLETE
  • 6
    10-35563 SCREW, FLEXIBLE PLATE TO FLYWHEEL (9/16")
    SCREW, FLEXIBLE PLATE TO FLYWHEEL (9/16")
  • 7
    50-33000A1 RATCHET ASSEMBLY, FLYWHEEL
    RATCHET ASSEMBLY, FLYWHEEL
  • 8
    10-32417 SCREW, RATCHET TO FLYWHEEL (5/8")
    SCREW, RATCHET TO FLYWHEEL (5/8")
  • 9
    10-34290 SCREW, RATCHET TO FLYWHEEL (5/8")
    SCREW, RATCHET TO FLYWHEEL (5/8")
  • 10
    13-26992 LOCKWASHER, RATCHET TO FLYWHEEL SCREW
    LOCKWASHER, RATCHET TO FLYWHEEL SCREW
  • 11
    398-3297A1 STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)
    FOR ADDITIONAL PARTS OF A-398-3297A1 STATOR PLATE ASSEMBLY, COMPLETE, SEE PAGE 6
    STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)
    FOR ADDITIONAL PARTS OF A-398-3297A1 STATOR PLATE ASSEMBLY, COMPLETE, SEE PAGE 6
  • 12
    48033A1 SHIELD ASSEMBLY, LEAD WIRE - STATOR PLATE
    SHIELD ASSEMBLY, LEAD WIRE - STATOR PLATE
  • 13
    10-49049 SCREW, LEAD WIRE SHIELD TO STATOR PLATE (5/16")
    SCREW, LEAD WIRE SHIELD TO STATOR PLATE (5/16")
  • 14
    54-45806 CLIP, STATOR LEADS TO STATOR
    CLIP, STATOR LEADS TO STATOR
  • 15
    10-35400 SCREW, STATOR LEADS CLIP ATTACHING (7/16")
    SCREW, STATOR LEADS CLIP ATTACHING (7/16")
  • 16
    8M0084613 "D" WASHER, STATOR LEADS SCREW
    "D" WASHER, STATOR LEADS SCREW
  • 17
    11-24656 NUT, STATOR LEADS SCREW
    NUT, STATOR LEADS SCREW
  • 18
    34601 RING, HOLD DOWN - STATOR PLATE
    RING, HOLD DOWN - STATOR PLATE
  • 19
    10-35400 SCREW, HOLD DOWN RING TO STATOR PLATE (7/16")
    SCREW, HOLD DOWN RING TO STATOR PLATE (7/16")
  • 20
    15-33910015 SHIM, STATOR PLATE TO CRANKCASE TOP
    SHIM, STATOR PLATE TO CRANKCASE TOP
  • 21
    46381 BRACKET, STATOR PLATE
    BRACKET, STATOR PLATE
  • 22
    10-29722 SCREW, BRACKET TO STATOR PLATE
    SCREW, BRACKET TO STATOR PLATE
  • 23
    46407 LINK ROD, THROTTLE CONTROL
    SERIAL 00000000-02432535
    LINK ROD, THROTTLE CONTROL
    SERIAL 00000000-02432535
  • 23
    52581 LINK ROD, THROTTLE CONTROL
    SERIAL 02432536-09999999
    LINK ROD, THROTTLE CONTROL
    SERIAL 02432536-09999999
  • 24
    12-30164 WASHER, LINK ROD SWIVEL TO THROTTLE LEVER
    WASHER, LINK ROD SWIVEL TO THROTTLE LEVER
  • 25
    33973 SWIVEL, LINK ROD TO THROTTLE LEVER
    SWIVEL, LINK ROD TO THROTTLE LEVER
  • 26
    11-859124 NUT, THROTTLE CONTROL LINK ROD
    NUT, THROTTLE CONTROL LINK ROD
  • 27
    45559 TERMINAL BLOCK, STATOR PLATE GROUND LEADS
    TERMINAL BLOCK, STATOR PLATE GROUND LEADS
  • 28
    10-72169 SCREW, TERMINAL BLOCK TO REAR MOUNTING BRACKER (1/2")
    SCREW, TERMINAL BLOCK TO REAR MOUNTING BRACKER (1/2")
  • 30
    53203 GROUND STRAP, STATOR PLATE TO CYLINDER BLOCK
    GROUND STRAP, STATOR PLATE TO CYLINDER BLOCK
  • 31
    54-22627 CLIP, STATOR LEADS FASTENING
    CLIP, STATOR LEADS FASTENING
  • 31
    54-26550 CLIIP, STATOR LEADS FASTENING
    CLIIP, STATOR LEADS FASTENING
  • 32
    10-62568 SCREW, STATOR LEADS FASTENING CLIP (3/8")
    SCREW, STATOR LEADS FASTENING CLIP (3/8")
  • 33
    8M0084613 "D" WASHER, STATOR LEADS FASTENING CLIP SCREW
    "D" WASHER, STATOR LEADS FASTENING CLIP SCREW
