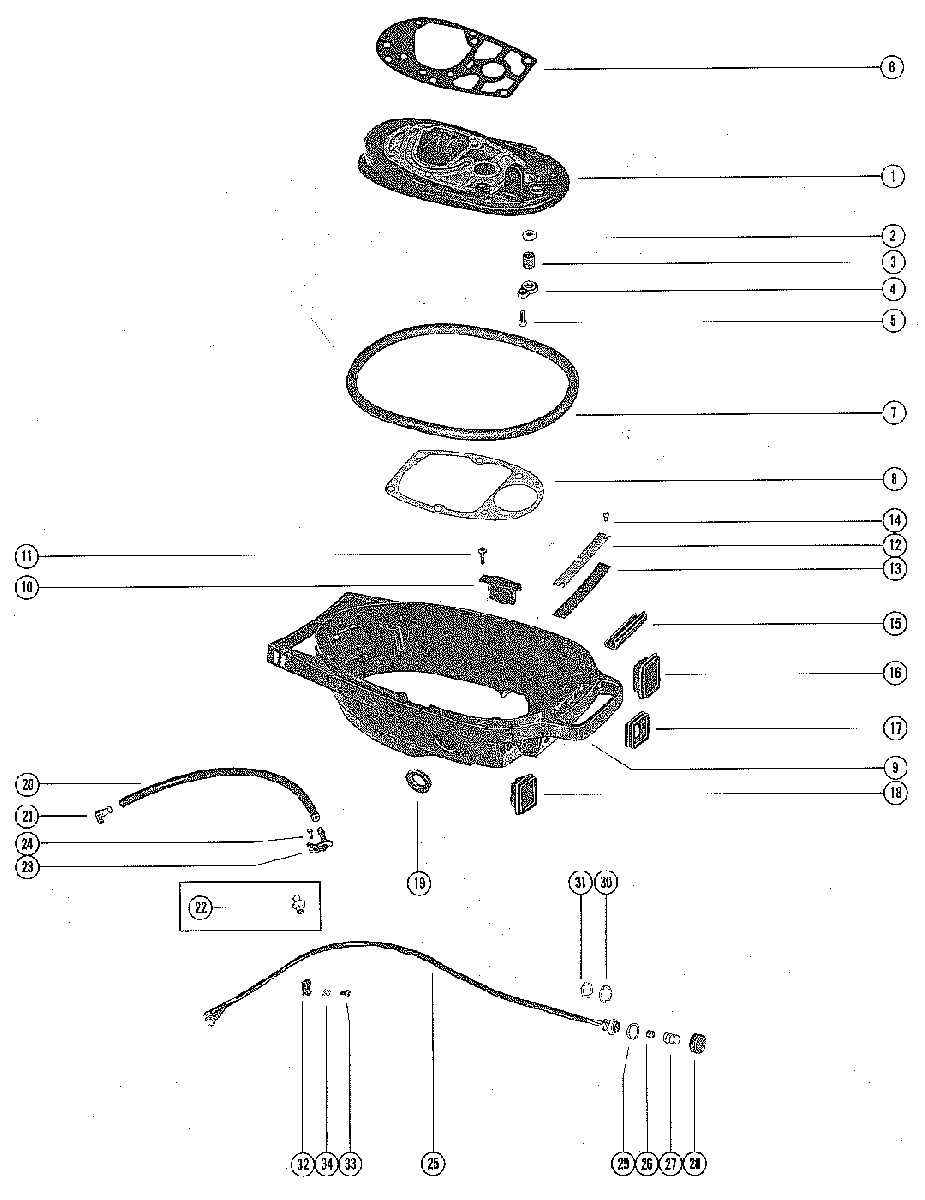

BOTTOM COWL ASSEMBLY для Mercury - 200 2296267 THRU 2827676

  • №
    Артикул
    Название
  • 1
    58978A2 PLATE ASSEMBLY, MOUNTING
    PLATE ASSEMBLY, MOUNTING
  • 2
    23-86215 WASHER, NHLON - WATER INLET TUBE
    WASHER, NHLON - WATER INLET TUBE
  • 3
    26-25329 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 4
    33513 RETAINER, WATER INLET TUBE SEAL
    RETAINER, WATER INLET TUBE SEAL
  • 5
    10-20540 SCREW, RETAINER TO MOUNTING PLATE (5/8")
    SCREW, RETAINER TO MOUNTING PLATE (5/8")
  • 6
    27-39401 GASKET, POWERHEAD TO MOUNTING PLATE
    GASKET, POWERHEAD TO MOUNTING PLATE
  • 7
    39622 SEAL, MOUNTING PLATE TO BOTTOM COWL
    SEAL, MOUNTING PLATE TO BOTTOM COWL
  • 8
    27-39402 GASKET, MOUNTING PLATE TO DRIVE SHAFT HOUSING
    GASKET, MOUNTING PLATE TO DRIVE SHAFT HOUSING
  • 9
    2129-3956A2 BOTTOM COWL ASSEMBLY
    BOTTOM COWL ASSEMBLY
  • 9
    2129-3956A2 BOTTOM COWL ASSEMBLY
    BOTTOM COWL ASSEMBLY
  • 10
    48472 COVER, HARNESS HOLE
    COVER, HARNESS HOLE
  • 11
    10-20189 SCREW, COVER TO BOTTOM COWL (3/4")
    SCREW, COVER TO BOTTOM COWL (3/4")
  • 12
    46266A2 COVER PLATE ASSEMBLY, BOTTOM COWL
    COVER PLATE ASSEMBLY, BOTTOM COWL
  • 13
    39591 PAD, SOUND - COVER PLATE
    PAD, SOUND - COVER PLATE
  • 14
    10-62568 SCREW, COVER PLATE TO BOTTOM COWL (3/8")
    SCREW, COVER PLATE TO BOTTOM COWL (3/8")
  • 15
    39630 CUSHION, RUBBER - BOTTOM COWL
    CUSHION, RUBBER - BOTTOM COWL
  • 16
    60886 BOOT, THROTTLE CABLE - BOTTOM COWL
    BOOT, THROTTLE CABLE - BOTTOM COWL
  • 17
    39778 BOOT, FUEL ADAPTOR - BOTTOM COWL
    BOOT, FUEL ADAPTOR - BOTTOM COWL
  • 18
    39780 BOOT, SHIFT CABLE - BOTTOM COWL
    BOOT, SHIFT CABLE - BOTTOM COWL
  • 19
    39058 SEAL, SHIFT HANDLE - BOTTOM COWL
    SEAL, SHIFT HANDLE - BOTTOM COWL
  • 20
    32-8M0108355 HOSE, TELL TALE - COWL TO CYLINDER BLOCK (11")
    HOSE, TELL TALE - COWL TO CYLINDER BLOCK (11")
  • 21
    22-996642 ELBOW, TELL TALE HOSE TO CYLINDER BLOCK
    ELBOW, TELL TALE HOSE TO CYLINDER BLOCK
  • 22
    22-291112 CONNECTOR, TELL TALE HOSE TO BOTTOM COWL
    CONNECTOR, TELL TALE HOSE TO BOTTOM COWL
  • 23
    52889 NOZZLE, TELL TALE HOSE TO BOTTOM COWL
    PART OF A-2129-3728A2 BOTTOM COWL ASSEMBLY
    NOZZLE, TELL TALE HOSE TO BOTTOM COWL
    PART OF A-2129-3728A2 BOTTOM COWL ASSEMBLY
  • 24
    10-41228 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
    PART OF A-2129-3728A2 BOTTOM COWL ASSEMBLY
    SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
    PART OF A-2129-3728A2 BOTTOM COWL ASSEMBLY
  • 25
    48071A1 STOP SWITCH ASSEMBLY
    STOP SWITCH ASSEMBLY
  • 26
    30859 INSULATOR, SLEEVE - INNER SWITCH TERMINALS
    INSULATOR, SLEEVE - INNER SWITCH TERMINALS
  • 27
    24-30858A1 SPRING AND CONTACT ASSEMBLY
    SPRING AND CONTACT ASSEMBLY
  • 28
    38950A1 COVER ASSEMBLY, STOP SWITCH
    COVER ASSEMBLY, STOP SWITCH
  • 29
    12-38949 WASHER, SEALING - STOP SWITCH
    WASHER, SEALING - STOP SWITCH
  • 30
    13-21972 LOCKWASHER, STOP SWITCH CONNECTOR
    LOCKWASHER, STOP SWITCH CONNECTOR
  • 31
    11-21971 NUT, STOP SWITCH TO BOTTOM COWL
    NUT, STOP SWITCH TO BOTTOM COWL
  • 32
    54-26550 CLIP, STOP SWITCH LEADS FASTENING
    CLIP, STOP SWITCH LEADS FASTENING
  • 33
    10-35519 SCREW, CLIP TO BOTTOM COWL (1/2")
    SCREW, CLIP TO BOTTOM COWL (1/2")
  • 34
    8M0084613 "D" WASHER, CLIP TO BOTTOM COWL
    "D" WASHER, CLIP TO BOTTOM COWL
