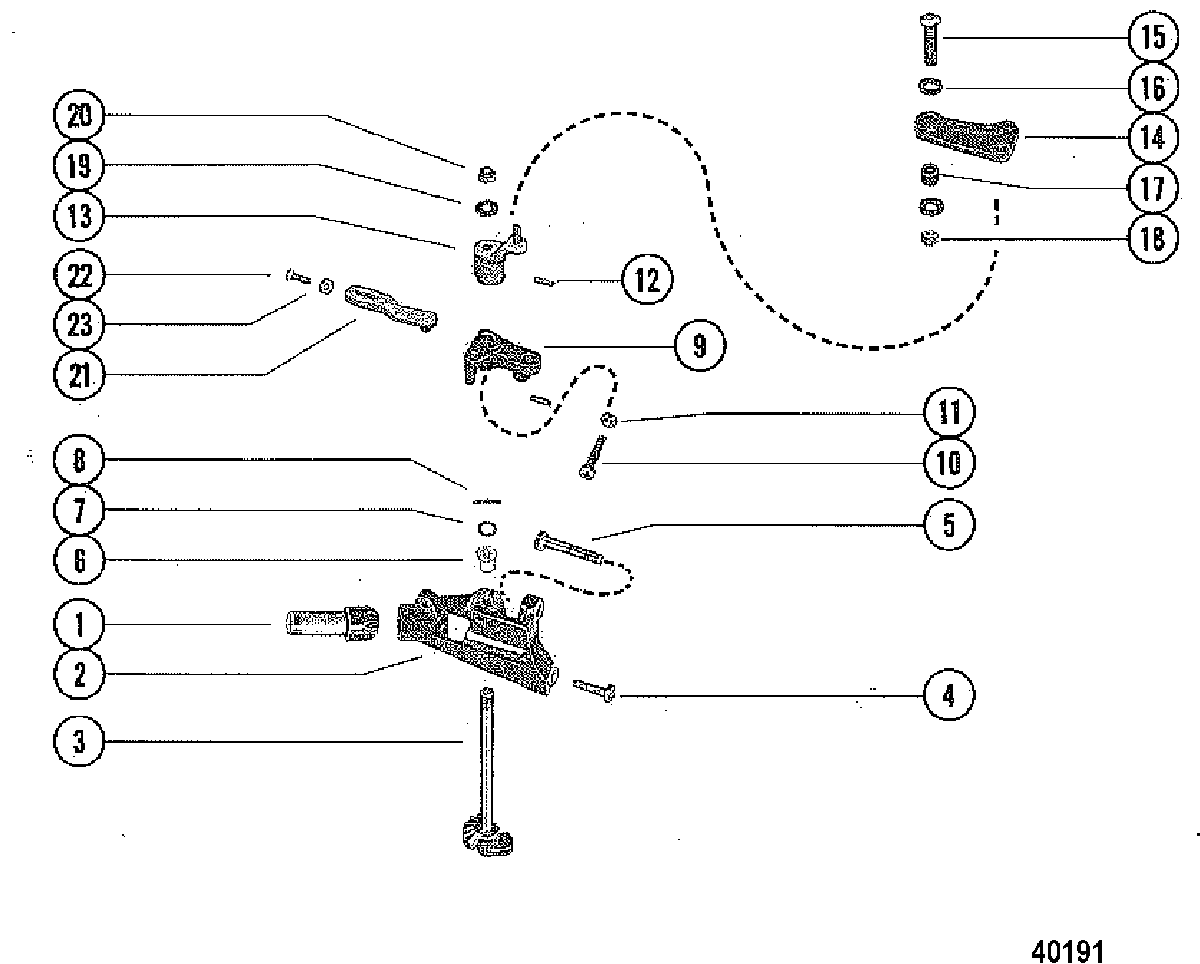

THROTTLE CONTROL LINKAGE для Mercury - 200, 20 7098523 & Up

  • №
    Артикул
    Название
  • 1
    43-60856 GEAR, PINON - THROTTLE CONTROL
    GEAR, PINON - THROTTLE CONTROL
  • 2
    76357 HOUSING, THROTTLE CONTROL
    HOUSING, THROTTLE CONTROL
  • 3
    43-60863 SHAFT AND GEAR, THROTTLE
    SHAFT AND GEAR, THROTTLE
  • 4 & 5
    10-76213 SCREW, (.250-20 x 1.120)
    SCREW, (.250-20 x 1.120)
  • 6
    23-33462 BUSHING
    BUSHING
  • 7
    12-20086 WASHER, THROTTLE SHAFT AND GEAR
    WASHER, THROTTLE SHAFT AND GEAR
  • 8
    17-36325 PIN, THROTTLE SHAFT AND GEAR
    PIN, THROTTLE SHAFT AND GEAR
  • 9
    46413 LEVER, Throttle, VERTICAL SHAFT
    LEVER, Throttle, VERTICAL SHAFT
  • 10
    10-72755 SCREW
    SCREW
  • 11
    11-29598 NUT, VERTICAL SHAFT THROTTLE LEVER SCREW
    NUT, VERTICAL SHAFT THROTTLE LEVER SCREW
  • 12
    17-24865 PIN
    PIN
  • 13
    60864 LEVER, STATOR PLATE - VERTICAL SHAFT
    LEVER, STATOR PLATE - VERTICAL SHAFT
  • 14
    64631 LEVER, STATOR PLATE CONTROL
    LEVER, STATOR PLATE CONTROL
  • 15
    10-69029 SCREW, (.250-28 x 1.750)
    SCREW, (.250-28 x 1.750)
  • 16
    12-71055 WASHER, STARTER HOUSING SCREW
    WASHER, STARTER HOUSING SCREW
  • 17
    23-46406 BUSHING, STATOR PLATE CONTROL LEVER
    BUSHING, STATOR PLATE CONTROL LEVER
  • 18
    11-35888 NUT, (.250-28) Stainless Steel, STARTER HOUSING TO CRANKCASE SCREW
    NUT, (.250-28) Stainless Steel, STARTER HOUSING TO CRANKCASE SCREW
  • 19
    12-24664 WASHER, (M4 x 20), SHAFT AND GEAR
    WASHER, (M4 x 20), SHAFT AND GEAR
  • 20
    11-826709109 NUT, (.250-28), SHAFT AND GEAR
    NUT, (.250-28), SHAFT AND GEAR
  • 21
    46405 LINK, THROTTLE CLUSTER
    LINK, THROTTLE CLUSTER
  • 22
    10-69011 SCREW, THROTTLE CLUSTER LINK (7/8")
    SCREW, THROTTLE CLUSTER LINK (7/8")
  • 23
    11-68219 NUT, (#10-32) Stainless Steel, JAM - THROTTLE CLUSTER LINK SCREW
    NUT, (#10-32) Stainless Steel, JAM - THROTTLE CLUSTER LINK SCREW
