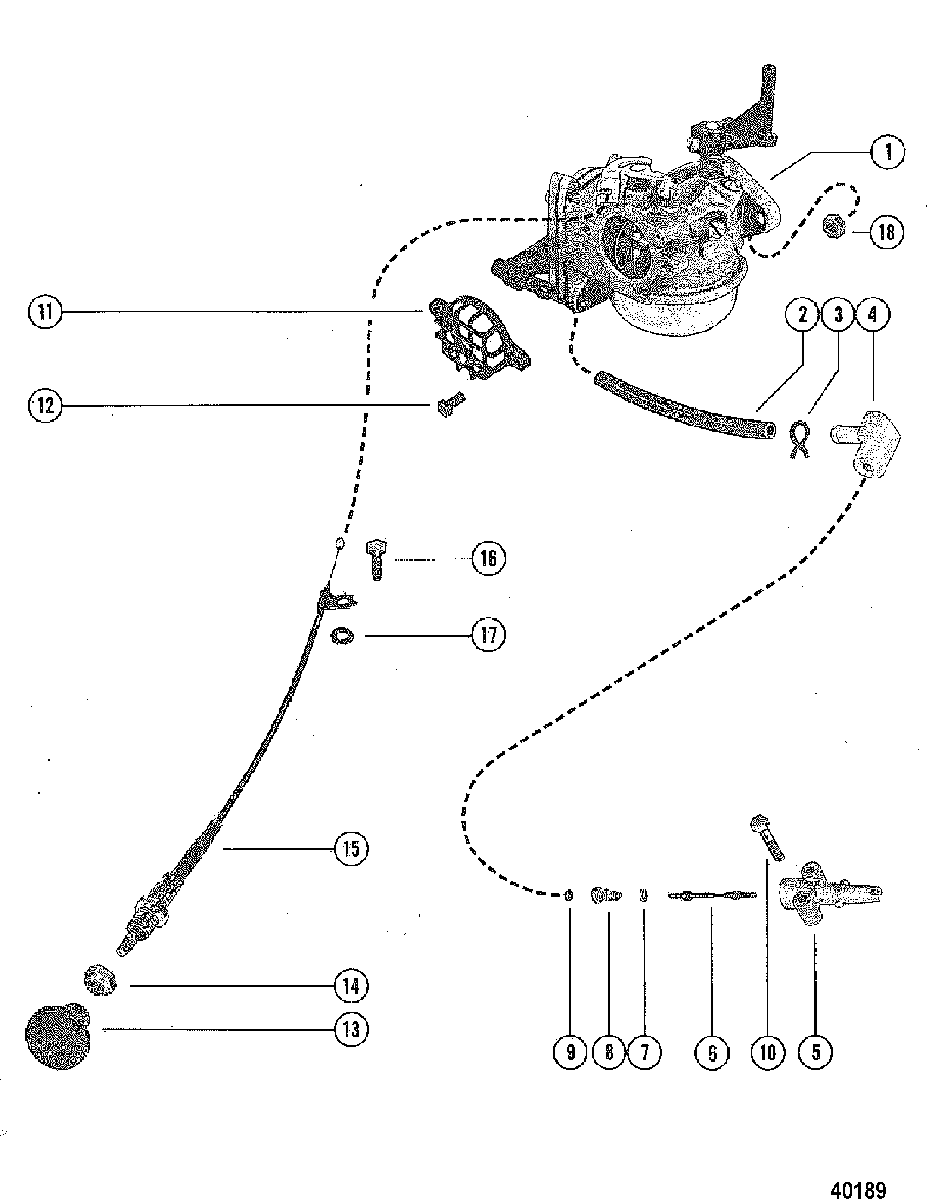

CARBURETOR AND CHOKE ASSEMBLY для Mercury - 200, 20 7098523 & Up

  • №
    Артикул
    Название
  • 1
    1367-6650A3 CARBURETOR ASSEMBLY, COMPLETE
    SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947
    CARBURETOR ASSEMBLY, COMPLETE
    SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947
  • 1
    1367-6650A3 CARBURETOR ASSEMBLY, COMPLETE
    SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
    CARBURETOR ASSEMBLY, COMPLETE
    SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
  • 2
    32-8M0108355 LINE, Fuel, ADAPTOR TO CARGURETOR (9-3/4")
    LINE, Fuel, ADAPTOR TO CARGURETOR (9-3/4")
  • 3
    54-68424 CLAMP, FUEL HOSE ATTACHING
    CLAMP, FUEL HOSE ATTACHING
  • 4
    22-63981 FITTING, FUEL LINE TO ADAPTOR
    FITTING, FUEL LINE TO ADAPTOR
  • 5
    22833 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 6
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 7
    25-16524 O-RING, ADAPTOR STEM
    O-RING, ADAPTOR STEM
  • 8
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 9
    30188 WASHER, ADAPTOR
    WASHER, ADAPTOR
  • 10
    10-37923 SCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWL
    SCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWL
  • 11
    65552 SCREEN, CARBURETOR
    SCREEN, CARBURETOR
  • 12
    10-69022 SCREW, (#10-32 x .500) Stainless Steel, SCREEN TO CARBURETOR
    SCREW, (#10-32 x .500) Stainless Steel, SCREEN TO CARBURETOR
  • 13
    86381 KNOB, CHOKE
    KNOB, CHOKE
  • 13
    86874 BUTTON, CHOKE
    (BELGIUM ONLY)
    BUTTON, CHOKE
    (BELGIUM ONLY)
  • 14
    11-73710 NUT, CHOKE CABLE TO BOTTOM COWL
    NUT, CHOKE CABLE TO BOTTOM COWL
  • 15
    72465 CABLE, Choke
    CABLE, Choke
  • 16
    10-690201 SCREW, (#10-32 x .875), CHOKE CABLE TO CARBURETOR
    SCREW, (#10-32 x .875), CHOKE CABLE TO CARBURETOR
  • 17
    12-56681 WASHER, (.203 x .500 x .032), CHOKE CABLE SCREW
    WASHER, (.203 x .500 x .032), CHOKE CABLE SCREW
  • 18
    11-22053 NUT, (5/16-24), CARBURETOR ATTACHING
    NUT, (5/16-24), CARBURETOR ATTACHING
