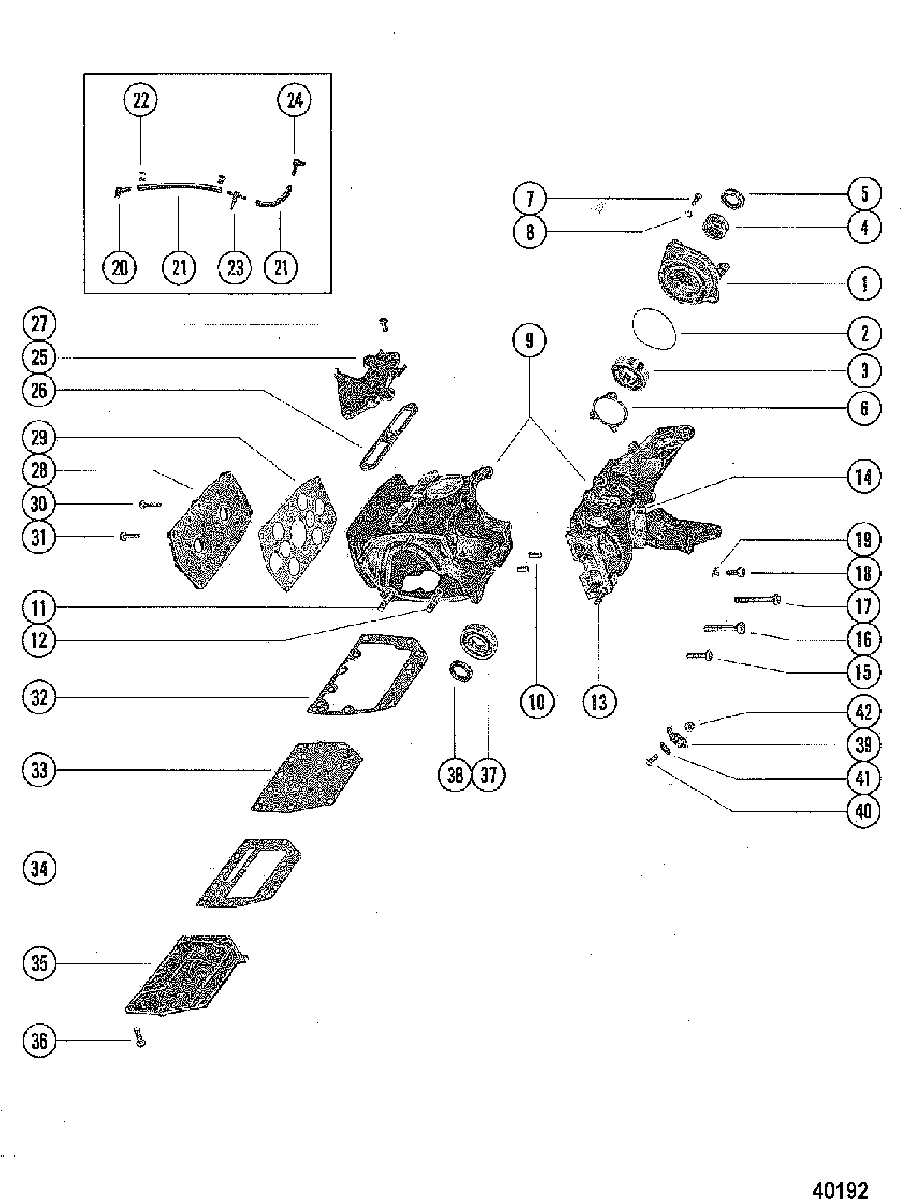

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 200, 20 7098523 & Up
-
№АртикулНазвание
-
11163-6437A1 CRANKCASE TOP ASSEMBLYCRANKCASE TOP ASSEMBLY
-
220071 O-RING, CRANKCASE TOPO-RING, CRANKCASE TOP
-
330-63326T BEARING, BALL - CRANKCASE TOP (UPPER)BEARING, BALL - CRANKCASE TOP (UPPER)
-
431-20594 BEARING, ROLLER - CRANKCASE TOP (UPPER)BEARING, ROLLER - CRANKCASE TOP (UPPER)
-
526-66300 SEAL, Oil, CRANKCASE TOP (UPPER)SEAL, Oil, CRANKCASE TOP (UPPER)
-
615-56191A1 SHIMSHIM
-
710-86750 SCREW, CRANKCASE TOP TO CYLINDR BLOCK (5/8")SCREW, CRANKCASE TOP TO CYLINDR BLOCK (5/8")
-
814-75670 TAB WASHER, CRANKCSAE TOP SCREWTAB WASHER, CRANKCSAE TOP SCREW
-
9848-6430A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLYCYLINDER BLOCK AND CRANKCASE ASSEMBLY
-
1017-23784 PIN, Dowel, CRANKCASE TO CYLINDER BLOCKPIN, Dowel, CRANKCASE TO CYLINDER BLOCK
-
1116-72743 STUD (2 1/8")STUD (2 1/8")
-
1216-8M0034434 STUD, (.312-18/.312-24 x 1.750)STUD, (.312-18/.312-24 x 1.750)
-
1316-8M0034434 STUD, (.312-18/.312-24 x 1.750)STUD, (.312-18/.312-24 x 1.750)
-
1416-8M0034422 STUD, (.312-18/.324-24 x 1.090)STUD, (.312-18/.324-24 x 1.090)
-
1510-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
1610-35385 SCREW, (.312-18 x 1-3/4)SCREW, (.312-18 x 1-3/4)
-
1710-67450 SCREW, (.312-18 x 2.250)SCREW, (.312-18 x 2.250)
-
1810-98260 SCREW, (.375-16 x .62), Use where ApplicableSCREW, (.375-16 x .62), Use where Applicable
-
1914-20091 TAB WASHER, Use where ApplicableTAB WASHER, Use where Applicable
-
2021-42863 FITTING, BLEED DRAIN
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLYFITTING, BLEED DRAIN
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY -
2132-9938779 HOSE, BLEED DRAIN
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLYHOSE, BLEED DRAIN
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY -
2254-56223 CLAMP, BLEED HOSE ATTACHING
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLYCLAMP, BLEED HOSE ATTACHING
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY -
2322-78917 TEE, INJECTION
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLYTEE, INJECTION
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY -
2422-78915 ELBOW, BLEED DRIAN
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLYELBOW, BLEED DRIAN
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY -
2576347 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
2627-279361 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
2710-49668 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
2710-24646 SCREW (5/8 Inch)SCREW (5/8 Inch)
-
281022-3567 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
2927-78410 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
3010-76596 SCREW, (.250-20 x 1.250)SCREW, (.250-20 x 1.250)
-
3110-76630 SCREW, (.250-20 x 1.00)SCREW, (.250-20 x 1.00)
-
3227-78411 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
3339308 PLATE, BAFFLE - EXHAUST MANIFOLDPLATE, BAFFLE - EXHAUST MANIFOLD
-
3427-78409 GASKET, BAFFLE PLATE TO MANIFOLD COVERGASKET, BAFFLE PLATE TO MANIFOLD COVER
-
3588797 COVER, EXHAUST MANIFOLD
SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & BelowCOVER, EXHAUST MANIFOLD
SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below -
3588797 COVER, EXHAUST MANIFOLD
SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & UpCOVER, EXHAUST MANIFOLD
SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up -
3610-28782 SCREW, (.312-18 x .880) Stainless SteelSCREW, (.312-18 x .880) Stainless Steel
-
3730-63326T BEARING, BALL - CRANKCASE (LOWER)BEARING, BALL - CRANKCASE (LOWER)
-
3826-66302 SEAL, Oil, CRANKCASE (LOWER)SEAL, Oil, CRANKCASE (LOWER)
-
3976255 INDICATOR, TIMING
ElectricINDICATOR, TIMING
Electric -
4010-20784 SCREW, INDICATOR TO CRANKCASE
ElectricSCREW, INDICATOR TO CRANKCASE
Electric -
4112-29245 WASHER, (.281 x .500 x .060) Stainless Steel, INDICATOR SCREW
ElectricWASHER, (.281 x .500 x .060) Stainless Steel, INDICATOR SCREW
Electric -
4211-35888 NUT, (.250-28) Stainless Steel, INDICATOR SCREW
ElectricNUT, (.250-28) Stainless Steel, INDICATOR SCREW
Electric -
-75392A77 POWERHEAD ASSEMBLY
SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & BelowPOWERHEAD ASSEMBLY
SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below -
-75392A80 POWERHEAD ASSEMBLY
SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & UpPOWERHEAD ASSEMBLY
SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
