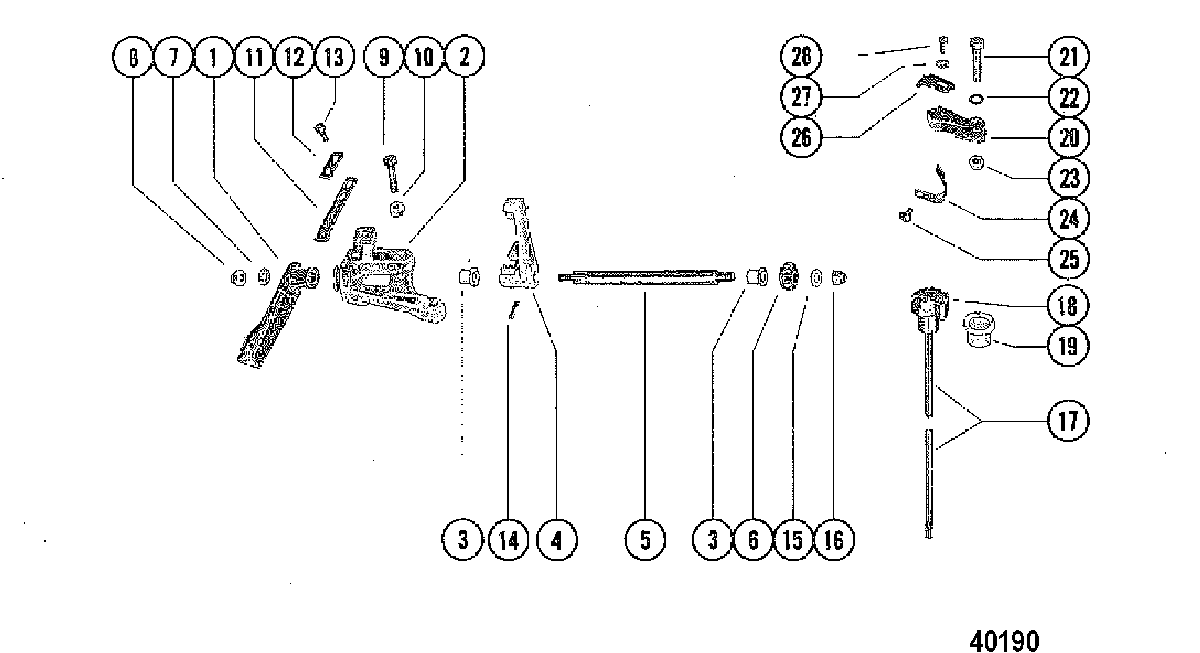

SHIFT CONTROL LINKAGE для Mercury - 200, 20 7098523 & Up

  • №
    Артикул
    Название
  • 1
    72946 HANDLE, NYLON - SHIFT CONTROL
    HANDLE, NYLON - SHIFT CONTROL
  • 2
    66412 BRACKET, MOUNTING - SHIFT SHAFT
    BRACKET, MOUNTING - SHIFT SHAFT
  • 3
    23-66375 BUSHING, NYLON - SHIFT SHAFT
    BUSHING, NYLON - SHIFT SHAFT
  • 4
    76994 LEVER, SHIFT CONTROL
    LEVER, SHIFT CONTROL
  • 5
    66379 SHAFT, SHIFT (HORIZONTAL)
    SHAFT, SHIFT (HORIZONTAL)
  • 6
    43-66377 SECTOR GEAR, SHIFT SHAFT
    SECTOR GEAR, SHIFT SHAFT
  • 7
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT CONTROL HANDLE
    WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT CONTROL HANDLE
  • 8
    11-826709109 NUT, SHIFT CONTROL HANDLE TO SHIFT SHAFT
    NUT, SHIFT CONTROL HANDLE TO SHIFT SHAFT
  • 9
    10-56500 SCREW, (.250-28 x 1.250)
    SCREW, (.250-28 x 1.250)
  • 10
    11-20184 NUT, (1/4-28), MOUNTING BRACKET SCREW
    NUT, (1/4-28), MOUNTING BRACKET SCREW
  • 11
    24-39627 SPRING, DETENT - MOUNTING BRACKET
    SPRING, DETENT - MOUNTING BRACKET
  • 12
    39601 PLATE, DETENT SPRING
    PLATE, DETENT SPRING
  • 13
    10-69022 SCREW, (#10-32 x .500) Stainless Steel
    SCREW, (#10-32 x .500) Stainless Steel
  • 14
    17-25905 PIN
    PIN
  • 15
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT SHAFT
    WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT SHAFT
  • 16
    11-35888 NUT, (.250-28) Stainless Steel, SECTOR GEAR TO SHIFT SHAFT
    NUT, (.250-28) Stainless Steel, SECTOR GEAR TO SHIFT SHAFT
  • 17
    61009A1 SHAFT ASSEMBLY, Shift Control, VERTICAL
    SHAFT ASSEMBLY, Shift Control, VERTICAL
  • 18
    43-58972 GEAR, SECTOR - SHIFT CONTROL SHAFT
    GEAR, SECTOR - SHIFT CONTROL SHAFT
  • 19
    23-30677 BUSHING, NYLON - SHIFT CONTROL SHAFT
    BUSHING, NYLON - SHIFT CONTROL SHAFT
  • 20
    58979 FOLLOWER, NEUTRAL SPEED LIMITER
    FOLLOWER, NEUTRAL SPEED LIMITER
  • 21
    10-24644 SCREW, (.250-28 x 1.38)
    SCREW, (.250-28 x 1.38)
  • 22
    15-28212 SHIM, LIMITER FOLLOWER SCREW
    SHIM, LIMITER FOLLOWER SCREW
  • 23
    11-20184 NUT, (1/4-28), LIMITER FOLLOWER SCREW
    NUT, (1/4-28), LIMITER FOLLOWER SCREW
  • 24
    29675A1 SPRING, NEUTRAL SPEED LIMITER FOLLOWER
    SPRING, NEUTRAL SPEED LIMITER FOLLOWER
  • 25
    22-390721 SCREW, SPRING TO LIMITER FOLLOWER (3/8")
    SCREW, SPRING TO LIMITER FOLLOWER (3/8")
  • 26
    72857 STOP, OVER-SPEED LIMITER
    STOP, OVER-SPEED LIMITER
  • 27
    12-24676 WASHER, (.200 x .440 x .032), LIMITER STOP SCREW
    WASHER, (.200 x .440 x .032), LIMITER STOP SCREW
  • 28
    10-35400 SCREW, LIMITER STOP TO FOLLOWER (7/16")
    SCREW, LIMITER STOP TO FOLLOWER (7/16")
