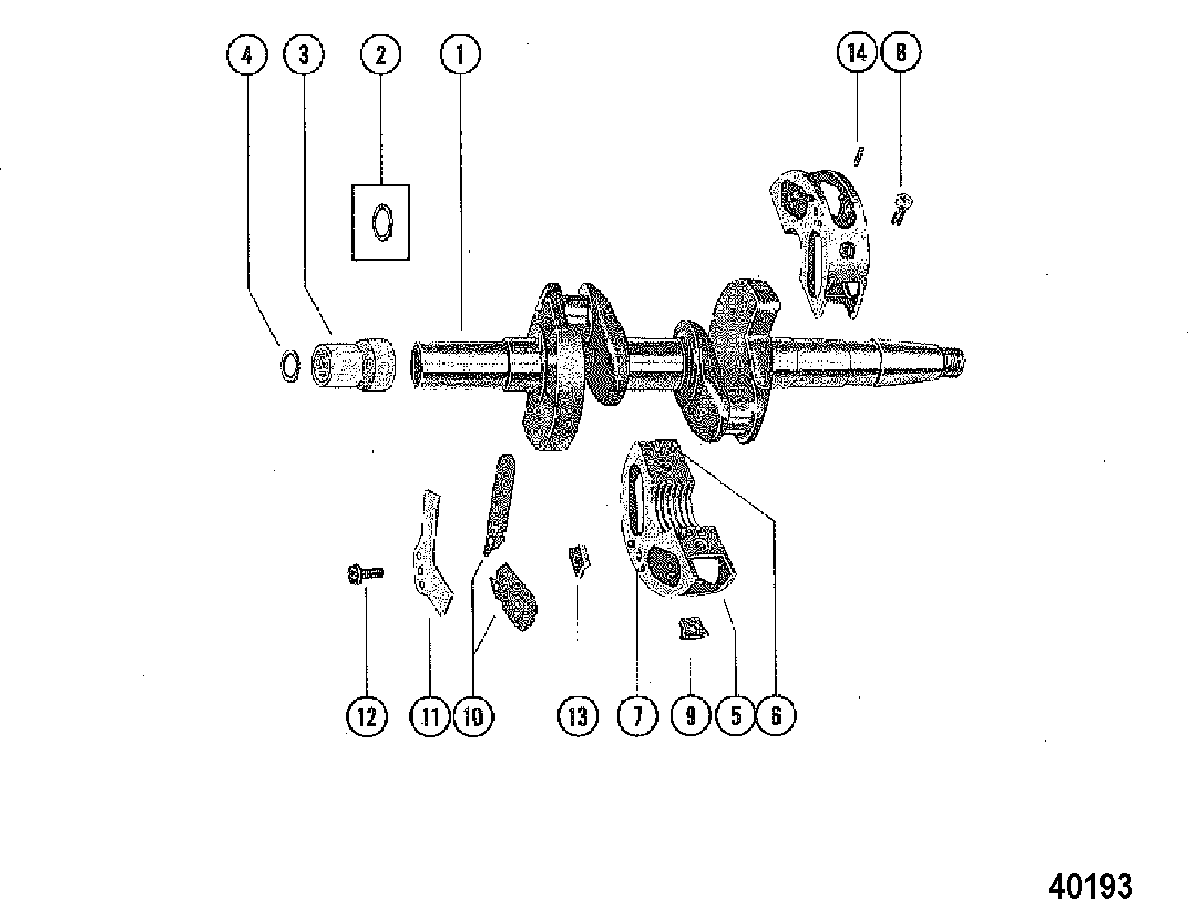

CRANKSHAFT AND CENTER MAIN BEARING ASSEMBLY для Mercury - 200, 20 7098523 & Up

  • №
    Артикул
    Название
  • 1
    415-6099 CRANKSHAFT
    SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
    CRANKSHAFT
    SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
  • 2
    26-73315 SEAL, CRANKSHAFT
    SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
    SEAL, CRANKSHAFT
    SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
  • 1
    415-7631A1 CRANKSHAFT ASSEMBLY
    SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
    CRANKSHAFT ASSEMBLY
    SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
  • 3
    88224A1 CARRIER ASSEMBLY
    SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
    CARRIER ASSEMBLY
    SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
  • 4
    12-88740 WASHER, FELT - CARRIER
    SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
    WASHER, FELT - CARRIER
    SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
  • 5
    534-3267T25 BEARING ASSEMBLY, Main
    BEARING ASSEMBLY, Main
  • 6
    17-20032 PIN, Dowel, CENTER MAIN BEARING
    PIN, Dowel, CENTER MAIN BEARING
  • 7
    17-65855 PIN, Dowel, REED STOP
    PIN, Dowel, REED STOP
  • 8
    10-45775 SCREW, (#12-28 x .560)
    SCREW, (#12-28 x .560)
  • 9
    11-45774 NUT, CENTER MAIN BEARING CLAMPING SCREW
    NUT, CENTER MAIN BEARING CLAMPING SCREW
  • 10
    34-88498A1 REED SET, CENTER MAIN BEARING (MATCHED)
    REED SET, CENTER MAIN BEARING (MATCHED)
  • 11
    34-64632 STOP, Reed, MAIN BEARING REED VALVE
    STOP, Reed, MAIN BEARING REED VALVE
  • 12
    10-77280 SCREW, (.190-32 x .560), REED STOP MOUNTING
    SCREW, (.190-32 x .560), REED STOP MOUNTING
  • 13
    11-20110 NUT, (#10-32), REED STOP MOUNTING SCREW
    NUT, (#10-32), REED STOP MOUNTING SCREW
  • 14
    17-20032 PIN, Dowel, MAIN BEARING TO CYLINDER BLOCK
    PIN, Dowel, MAIN BEARING TO CYLINDER BLOCK
