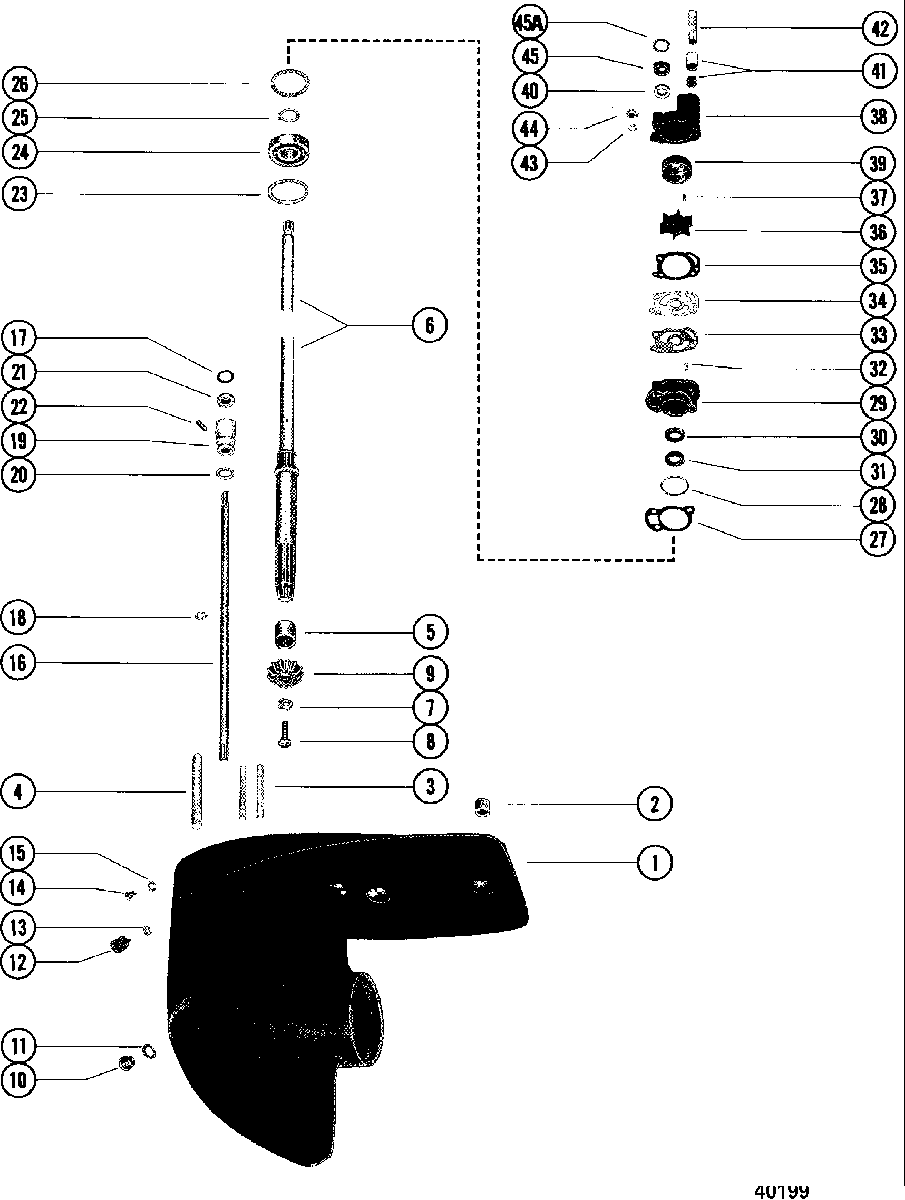

GEAR HOUSING ASSEMBLY, DRIVESHAFT для Mercury - 200, 20 7098523 & Up

№

Артикул

Название
-

1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below

GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below

0 ₽
-

1627-6006A4 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below

GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below

0 ₽
-

1627-6006A15 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up

GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up

0 ₽
-

1627-6006A16 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up

GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up

0 ₽
1

1627-6006A5 GEAR HOUSING ASSEMBLY

GEAR HOUSING ASSEMBLY

0 ₽
2

17-20201 PIN

PIN

0 ₽
3

16-58137 STUD (3-1/8 INCHES)

STUD (3-1/8 INCHES)

0 ₽
4

16-58135 STUD (4-13/16 INCHES)

STUD (4-13/16 INCHES)

0 ₽
5

31-28157 BEARING, ROLLER-DRIVESHAFT

BEARING, ROLLER-DRIVESHAFT

1 820 ₽
6

45-93300A1 DRIVESHAFT ASSEMBLY
(SHORT SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below

DRIVESHAFT ASSEMBLY
(SHORT SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below

0 ₽
6

45-93301A1 DRIVESHAFT ASSEMBLY
(LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below

DRIVESHAFT ASSEMBLY
(LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below

0 ₽
6

45-88094A1 DRIVESHAFT ASSEMBLY
(SHORT SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up

DRIVESHAFT ASSEMBLY
(SHORT SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up

0 ₽
6

45-88093A1 DRIVESHAFT ASSEMBLY
(LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up

DRIVESHAFT ASSEMBLY
(LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up

0 ₽
7

14-49911 TAB WASHER, PINION GEAR SCREW

TAB WASHER, PINION GEAR SCREW

0 ₽
8

10-49908 SCREW, (.250-28 x .750)

SCREW, (.250-28 x .750)

190 ₽
9

43-45189 GEAR, PINION

GEAR, PINION

13 100 ₽
10

10-79953Q04 SCREW, (.375-16)

SCREW, (.375-16)

1 000 ₽
11

12-191833 WASHER, GREASE FILLER SCREW

WASHER, GREASE FILLER SCREW

60 ₽
12

19-48750 PLUG, GEAR HOUSING FLUSHING

PLUG, GEAR HOUSING FLUSHING

560 ₽
13

12-49221 WASHER, (.187 x .500 x .062) Neoprene

WASHER, (.187 x .500 x .062) Neoprene

90 ₽
14

10-28653 SCREW, (#10-32 x 0.25)

SCREW, (#10-32 x 0.25)

150 ₽
15

19643 WASHER, GREASE VENT SCREW

WASHER, GREASE VENT SCREW

70 ₽
16

56829A1 SHAFT ASSEMBLY, SHIFT-LOWER
(SHORT SHAFT)

SHAFT ASSEMBLY, SHIFT-LOWER
(SHORT SHAFT)

0 ₽
16

56830A1 SHAFT ASSEMBLY, SHIFT-LOWER
(LONG SHAFT)

SHAFT ASSEMBLY, SHIFT-LOWER
(LONG SHAFT)

0 ₽
17

25-38933 O-RING, LOWER SHIFT SHAFT

O-RING, LOWER SHIFT SHAFT

110 ₽
18

53-22899 RING, Retaining

RING, Retaining

180 ₽
19

23-30676A1 BUSHING ASSEMBLY, SHIFT SHAFT

BUSHING ASSEMBLY, SHIFT SHAFT

9 000 ₽
20

25-26802 O-RING, (.424 x .103), SHIFT SHAFT BUSHING

O-RING, (.424 x .103), SHIFT SHAFT BUSHING

250 ₽
21

26-30696 SEAL, Oil, SHIFT SHAFT BUSHING

SEAL, Oil, SHIFT SHAFT BUSHING

580 ₽
22

10-39149 SCREW, (#10-24 x .500)

SCREW, (#10-24 x .500)

0 ₽
23

15-20804A1 SHIM SET, BALL BEARING TO GEAR HOUSIN (.002-3-5-10)

SHIM SET, BALL BEARING TO GEAR HOUSIN (.002-3-5-10)

0 ₽
24

30-69389 BEARING, BALL-DRIVESHAFT

BEARING, BALL-DRIVESHAFT

4 930 ₽
25

53-33463 RING, RETAINING-BALL BEARING

RING, RETAINING-BALL BEARING

110 ₽
26

15-20804A1 SHIM SET

SHIM SET

0 ₽
27

27-39626 GASKET

GASKET

130 ₽
28

25-33466 O-RING, WATER PUMP BASE

O-RING, WATER PUMP BASE

220 ₽
29

46-48744A1 BASE ASSEMBLY, Water Pump

BASE ASSEMBLY, Water Pump

7 580 ₽
30

26-20070 SEAL, Oil, WATER PUMP BASE

SEAL, Oil, WATER PUMP BASE

1 610 ₽
31

26-897154 SEAL, Oil, WATER PUMP BASE (SPRING LOADED)

SEAL, Oil, WATER PUMP BASE (SPRING LOADED)

1 170 ₽
32

17-8M0084627 PIN, Dowel

PIN, Dowel

190 ₽
33

27-39625 GASKET

GASKET

170 ₽
34

39624 PLATE

PLATE

710 ₽
35

27-396231 GASKET

GASKET

140 ₽
36

47-89982 IMPELLER, Component of Driveshaft Assembly

IMPELLER, Component of Driveshaft Assembly

5 600 ₽
37

28-56661 KEY, Component of Driveshaft Assembly

KEY, Component of Driveshaft Assembly

320 ₽
38

46-87458A2 BODY ASSEMBLY, Water Pump
SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below

BODY ASSEMBLY, Water Pump
SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below

7 790 ₽
38

46-87458A2 BODY ASSEMBLY, Water Pump
SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up

BODY ASSEMBLY, Water Pump
SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up

7 790 ₽
39

48754 INSERT, WATER PUMP BODY

INSERT, WATER PUMP BODY

0 ₽
40

26-20070 SEAL, Oil, WATER PUMP BODY

SEAL, Oil, WATER PUMP BODY

1 610 ₽
41

26-33613 SEAL, WATER PUMP BODY

SEAL, WATER PUMP BODY

690 ₽
41

23-86215 BEARING, WATER TUBE SEAL
SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up

BEARING, WATER TUBE SEAL
SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up

350 ₽
42

23-45170 SLEEVE, GUIDE-WATER INLET TUBE

SLEEVE, GUIDE-WATER INLET TUBE

2 010 ₽
43

12-36001 WASHER, WATER PUMP STUDS

WASHER, WATER PUMP STUDS

100 ₽
44

11-82670911 NUT, (.312-24) Stainless Steel, WATER PUMP STUDS

NUT, (.312-24) Stainless Steel, WATER PUMP STUDS

370 ₽
45

12-20684 RING

RING

100 ₽
45A

25-88198 O-RING, DRIVESHAFT
SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up

O-RING, DRIVESHAFT
SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up

120 ₽
-

46-48744A3 WATER PUMP ASSEMBLY, Complete

WATER PUMP ASSEMBLY, Complete

14 310 ₽
-

26-66303A1 SEAL KIT

SEAL KIT

10 390 ₽
