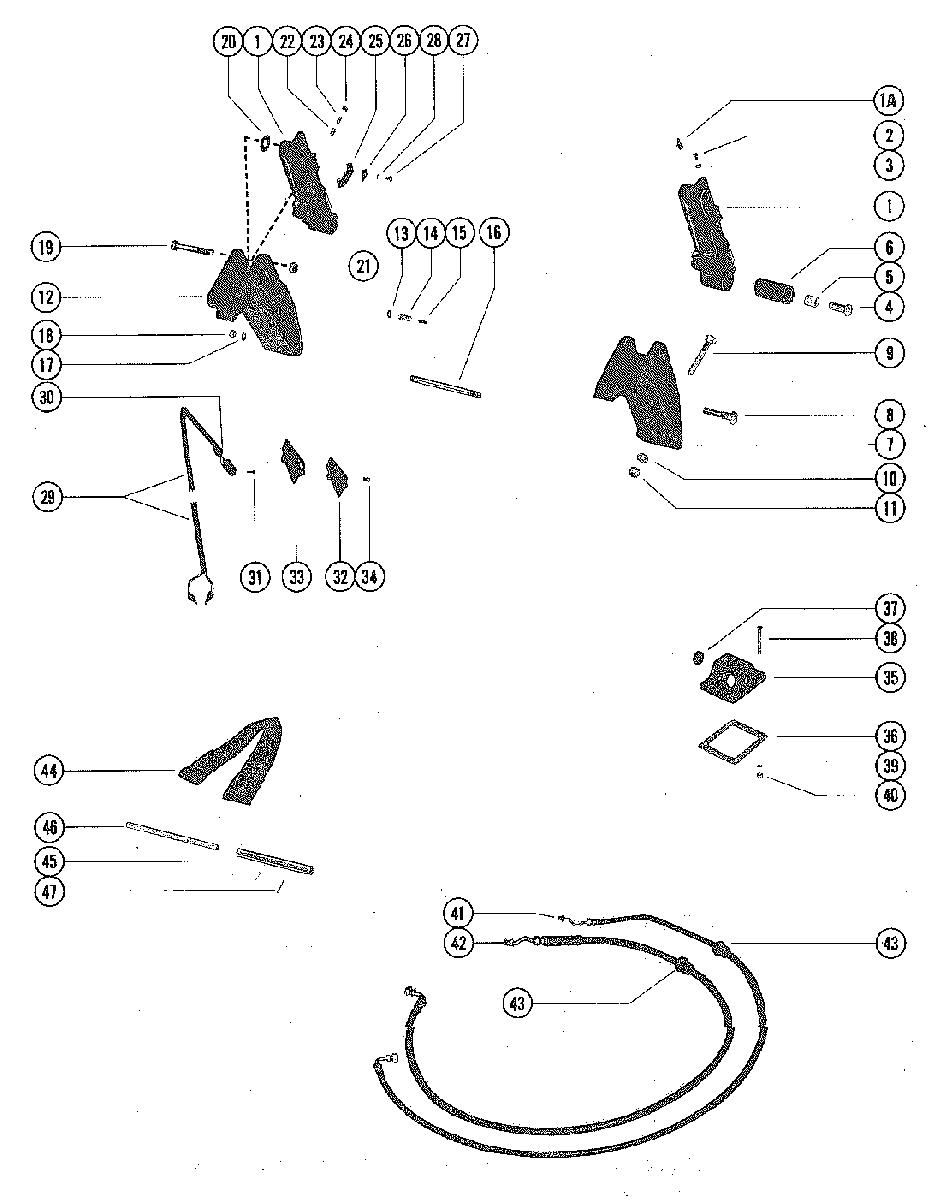

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercury - 1500 7010533 THRU 7112772
-
№АртикулНазвание
-
192194A14 TRIM CYLINDER ASSEMBLY
SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4403387 THRU 4602011TRIM CYLINDER ASSEMBLY
SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4403387 THRU 4602011 -
192194A14 TRIM CYLINDER ASSEMBLY
SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4602012 AND UP
CANADA 7093038 AND UPTRIM CYLINDER ASSEMBLY
SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4602012 AND UP
CANADA 7093038 AND UP -
1A22-74036 FITTING, GREASE
SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4602012 AND UP
CANADA 7093038 AND UPFITTING, GREASE
SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4602012 AND UP
CANADA 7093038 AND UP -
210-45265 SCREW, BLEED - SHOCK CYLINDERSCREW, BLEED - SHOCK CYLINDER
-
325-45016 "O" RING, SHOCK CYLINDER BLEED SCREW"O" RING, SHOCK CYLINDER BLEED SCREW
-
410-45264 SCREW, SHOCK CYLINDER TO LOWER SHOCK PIN (1 9/16")SCREW, SHOCK CYLINDER TO LOWER SHOCK PIN (1 9/16")
-
523-45280 SPACER, SHOCK CYLINDER - LOWERSPACER, SHOCK CYLINDER - LOWER
-
623-94907A1 BUSHING, RUBBER - SHOCK CYLINDERBUSHING, RUBBER - SHOCK CYLINDER
-
789108A3 BRACKET, MOUNTING - SHOCK CYLINDER (PORT)BRACKET, MOUNTING - SHOCK CYLINDER (PORT)
-
810-45263 SCREW, MOUNTING BRACKET TO UPPER SHOCK PIN (2 1/4")SCREW, MOUNTING BRACKET TO UPPER SHOCK PIN (2 1/4")
-
910-68298 BOLT, MOUNTING BRACKET TO BOAT TRANSOM (3 1/4")BOLT, MOUNTING BRACKET TO BOAT TRANSOM (3 1/4")
-
1012-46765 WASHER, MOUNTING BRACKET BOLTWASHER, MOUNTING BRACKET BOLT
-
1111-82670912 NUT, MOUNTING BRACKET BOLTNUT, MOUNTING BRACKET BOLT
-
1289807A1 BRACKET ASSEMBLY, MOUNTING - SHOCK CYLINDER (STARBOARD)BRACKET ASSEMBLY, MOUNTING - SHOCK CYLINDER (STARBOARD)
-
1326-70608 OIL SEAL, STARBOARD MOUNTING BRACKETOIL SEAL, STARBOARD MOUNTING BRACKET
-
1489290 PLUNGER, LIMIT SWITCH ACTUATINGPLUNGER, LIMIT SWITCH ACTUATING
-
1524-95881 SPRING, TENSION - LIMIT SWITCH PLUNGERSPRING, TENSION - LIMIT SWITCH PLUNGER
-
1616-45282 STUD, MOUNTING BRACKET AND CLAMP BRACKETSTUD, MOUNTING BRACKET AND CLAMP BRACKET
-
1713-26993 LOCKWASHER, MOUNTING BRACKET TO CLAMP BRACKET STUDLOCKWASHER, MOUNTING BRACKET TO CLAMP BRACKET STUD
-
1811-28770 NUT, MOUNTING BRACKET TO CLAMP BRACKET STUDNUT, MOUNTING BRACKET TO CLAMP BRACKET STUD
-
1910-45328 SCREW, SHOCK CYLINDER TO MOUNTING BRACKET (3 9/16")SCREW, SHOCK CYLINDER TO MOUNTING BRACKET (3 9/16")
-
2012-37807 WASHER, SHOCK CYLINDER SCREW (STARBOARD ONLY)WASHER, SHOCK CYLINDER SCREW (STARBOARD ONLY)
-
2111-20696 NUT, SHOCK CYLINDER SCREWNUT, SHOCK CYLINDER SCREW
-
2224-24390 SPRING, TENSION - ADJUSTING STUDSPRING, TENSION - ADJUSTING STUD
-
2316-8M0034461 STUD, ADJUSTING - CUT-OUT LIMIT SWITCH (15/16")STUD, ADJUSTING - CUT-OUT LIMIT SWITCH (15/16")
-
2411-859124 NUT, JAM - LIMIT SWITCH ADJUSTING STUDNUT, JAM - LIMIT SWITCH ADJUSTING STUD
-
2599897 CAM, LIMIT SWITCH ADJUSTING STUDCAM, LIMIT SWITCH ADJUSTING STUD
-
2686967 PLATE, RETAINING - LIMIT SWITCH CAMPLATE, RETAINING - LIMIT SWITCH CAM
-
2710-68513 SCREW, RETAINING PLATE AND CAM TO SHOCK CYLINDER (3/8")SCREW, RETAINING PLATE AND CAM TO SHOCK CYLINDER (3/8")
-
2813-26996 LOCKWASHER, RETAINING PLATE AND CAM SCREWLOCKWASHER, RETAINING PLATE AND CAM SCREW
-
2945326A2 SWITCH ASSEMBLY, CUT-OUT LIMITSWITCH ASSEMBLY, CUT-OUT LIMIT
-
3023-45354 BUSHING, RUBBER - CUT-OUT LIMIT SWITCHBUSHING, RUBBER - CUT-OUT LIMIT SWITCH
-
3110-47255 SCREW, CUT-OUT LIMIT SWITCH TO MOUNTING BRACKET (9/16")SCREW, CUT-OUT LIMIT SWITCH TO MOUNTING BRACKET (9/16")
-
3245287 COVER, LIMIT SWITCHCOVER, LIMIT SWITCH
-
3327-45275 GASKET, LIMIT SWITCH COVERGASKET, LIMIT SWITCH COVER
-
3410-24942 SCREW, LIMIT SWITCH COVER TO MOUNTING BRACKET (7/16")SCREW, LIMIT SWITCH COVER TO MOUNTING BRACKET (7/16")
-
3587774A1 COVER, INLET - TRANSOMCOVER, INLET - TRANSOM
-
3627-45274 GASKET, INLET COVERGASKET, INLET COVER
-
3725-45507 GROMMET, RUBBER - INLET COVERGROMMET, RUBBER - INLET COVER
-
3810-32866 SCREW, INLET COVER TO BOAT (2")SCREW, INLET COVER TO BOAT (2")
-
3912-20878 WASHER, INLET COVER SCREWWASHER, INLET COVER SCREW
-
4011-826709106 NUT, INLET COVER SCREWNUT, INLET COVER SCREW
-
4132-88005 HOSE
TRIM - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D.HOSE
TRIM - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D. -
4232-88006 HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. (#32-88006)HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. (#32-88006)
-
4323-35977 GROMMET, RUBBER - LIFT HOSE AND TRIM HOSEGROMMET, RUBBER - LIFT HOSE AND TRIM HOSE
-
4473519A1 TILT STOPTILT STOP
-
4563441 TUBE, MOUNTING-TILT STOP
UNITED STATES 3752619 AND BELOW
AUSTRALIA 8013419 AND BELOW
CANADA 7024372 AND BELOWTUBE, MOUNTING-TILT STOP
UNITED STATES 3752619 AND BELOW
AUSTRALIA 8013419 AND BELOW
CANADA 7024372 AND BELOW -
4617-63442 PIN, MOUNTING TUBE
UNITED STATES 3752619 AND BELOW
AUSTRALIA 8013419 AND BELOW
CANADA 7024372 AND BELOWPIN, MOUNTING TUBE
UNITED STATES 3752619 AND BELOW
AUSTRALIA 8013419 AND BELOW
CANADA 7024372 AND BELOW -
4569259 TUBE, MOUNTING - TILT STOP
UNITED STATES 4121435 THRU 4319879
AUSTRALIA 8028040 THRU 8034895
CANADA 7048783 THRU 7067284TUBE, MOUNTING - TILT STOP
UNITED STATES 4121435 THRU 4319879
AUSTRALIA 8028040 THRU 8034895
CANADA 7048783 THRU 7067284 -
4669258 PIN, MOUNTING TUBE
UNITED STATES 4121435 THRU 4319879
AUSTRALIA 8028040 THRU 8034895
CANADA 7048783 THRU 7067284PIN, MOUNTING TUBE
UNITED STATES 4121435 THRU 4319879
AUSTRALIA 8028040 THRU 8034895
CANADA 7048783 THRU 7067284 -
4718-36002 COTTER PIN, MOUNTING TUBE PIN
UNITED STATES 4121435 THRU 4319879
AUSTRALIA 8028040 THRU 8034895
CANADA 7048783 THRU 7067284COTTER PIN, MOUNTING TUBE PIN
UNITED STATES 4121435 THRU 4319879
AUSTRALIA 8028040 THRU 8034895
CANADA 7048783 THRU 7067284 -
-48664A1 REPAIR KIT (SEE NOTE A ABOVE)REPAIR KIT (SEE NOTE A ABOVE)
