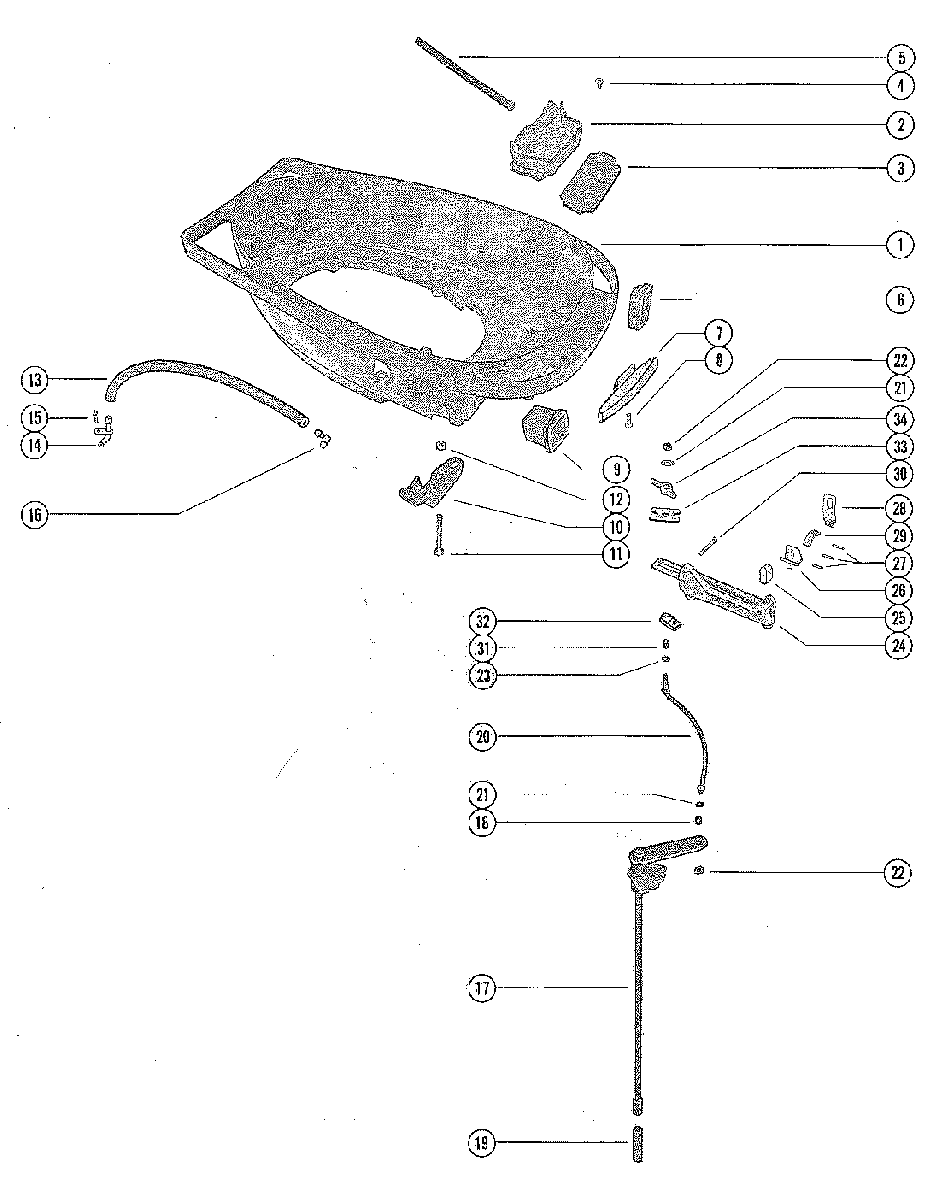

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 1500 7010533 THRU 7112772
-
№АртикулНазвание
-
12115-3919 COWL, BOTTOM
UNITED STATES 3751849 AND BELOW
AUSTRALIA 8013389 AND BELOW
CANADA 7024372 AND BELOWCOWL, BOTTOM
UNITED STATES 3751849 AND BELOW
AUSTRALIA 8013389 AND BELOW
CANADA 7024372 AND BELOW -
12115-8963A1 COWL, BOTTOM
UNITED STATES 3751850 THRU 4602011
AUSTRALIA 8013390 THRU 8034895
CANADA 7024373 THRU 7093097COWL, BOTTOM
UNITED STATES 3751850 THRU 4602011
AUSTRALIA 8013390 THRU 8034895
CANADA 7024373 THRU 7093097 -
12115-8963A1 COWL, BOTTOM
UNITED STATES 4602012 AND UP
CANADA 7093038 AND UPCOWL, BOTTOM
UNITED STATES 4602012 AND UP
CANADA 7093038 AND UP -
252862A2 DRIP TRAY ASSEMBLY, BOTTOM COWLDRIP TRAY ASSEMBLY, BOTTOM COWL
-
337940 PAD, SOUND - DRIP TRAYPAD, SOUND - DRIP TRAY
-
410-48408 SCREW, DRIP TRAY TO BOTTOM COWL (1/2")SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
-
532-8M0108355 HOSE, DRIP TRAY TO BOTTOM COWL (8")HOSE, DRIP TRAY TO BOTTOM COWL (8")
-
639616 BOOT, CONTROL CABLES - BOTTOM COLWBOOT, CONTROL CABLES - BOTTOM COLW
-
776369 SPACER, BOTTOM COWL (COWL FRONT COVER)SPACER, BOTTOM COWL (COWL FRONT COVER)
-
810-48591 SCREW, SPACER TO BOTTOM COWL (1/2")SCREW, SPACER TO BOTTOM COWL (1/2")
-
937637 BOOT, FUEL CONNECTOR - BOTTOM COWLBOOT, FUEL CONNECTOR - BOTTOM COWL
-
1037445 SUPPORT, WIRING HARNESS - BOTTOM COWLSUPPORT, WIRING HARNESS - BOTTOM COWL
-
1110-69029 SCREW, SUPPORT TO BOTTOM COWL (1 3/4")
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWSCREW, SUPPORT TO BOTTOM COWL (1 3/4")
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
1110-88488 SCREW, SUPPORT TO BOTTOM COWL (3 1/4")
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWSCREW, SUPPORT TO BOTTOM COWL (3 1/4")
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
1211-20184 NUT, SUPPORT SCREW
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWNUT, SUPPORT SCREW
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
1110-69029 SCREW, SUPPORT TO BOTTOM COWL (1 3/4")
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPSCREW, SUPPORT TO BOTTOM COWL (1 3/4")
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP -
1332-8M0108355 HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
-
1452889 NOZZLE, TELL TALE HOSE TO BOTTOM COWLNOZZLE, TELL TALE HOSE TO BOTTOM COWL
-
1510-48408 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
-
1622-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVERELBOW, TELL TALE HOSE TO EXHAUST COVER
-
1760304A55 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4403387 THRU 4602011SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4403387 THRU 4602011 -
1760304A54 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
UNITED STATES 4403387 THRU 4602011SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
UNITED STATES 4403387 THRU 4602011 -
1823-26600 BUSHING, SHIFT SHAFT
UNITED STATES 4403387 THRU 4602011BUSHING, SHIFT SHAFT
UNITED STATES 4403387 THRU 4602011 -
1993960A1 COUPLING, SHIFT SHAFT
UNITED STATES 4403387 THRU 4602011COUPLING, SHIFT SHAFT
UNITED STATES 4403387 THRU 4602011 -
1760304A55 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4602012 AND UP
CANADA 7093038 AND UPSHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4602012 AND UP
CANADA 7093038 AND UP -
1760304A54 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
UNITED STATES 4602012 AND UP
CANADA 7093038 AND UPSHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
UNITED STATES 4602012 AND UP
CANADA 7093038 AND UP -
2073402 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
2112-35462 WASHER, LINK RODWASHER, LINK ROD
-
2211-826709109 NUT, LINK RODNUT, LINK ROD
-
2313-29720 WASHER, WAVE - LINK RODWASHER, WAVE - LINK ROD
-
2452732A6 BRACKET, ANCHOR - CONTROL CABLESBRACKET, ANCHOR - CONTROL CABLES
-
2539519 CAP, BARREL RETAINER - ANCHOR BRACKETCAP, BARREL RETAINER - ANCHOR BRACKET
-
2687609A1 LEVER, NYLON - SHIFT CABLE LOCKINGLEVER, NYLON - SHIFT CABLE LOCKING
-
2717-47175 PIN, LOCKING LEVER AND COVER FASTENINGPIN, LOCKING LEVER AND COVER FASTENING
-
2839667 COVER, NYLON - SHIFT CABLECOVER, NYLON - SHIFT CABLE
-
2987609A1 LINK, LOCKING LEVER TO COVERLINK, LOCKING LEVER TO COVER
-
3010-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
-
3124-20099 SPRING, LINK ROD TO GUIDE BLOCKSPRING, LINK ROD TO GUIDE BLOCK
-
3237896 GUIDE BLOCK, LINK RODGUIDE BLOCK, LINK ROD
-
3352100 WEAR PLATE, LINK RODWEAR PLATE, LINK ROD
-
348M0036768 LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKETLATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
