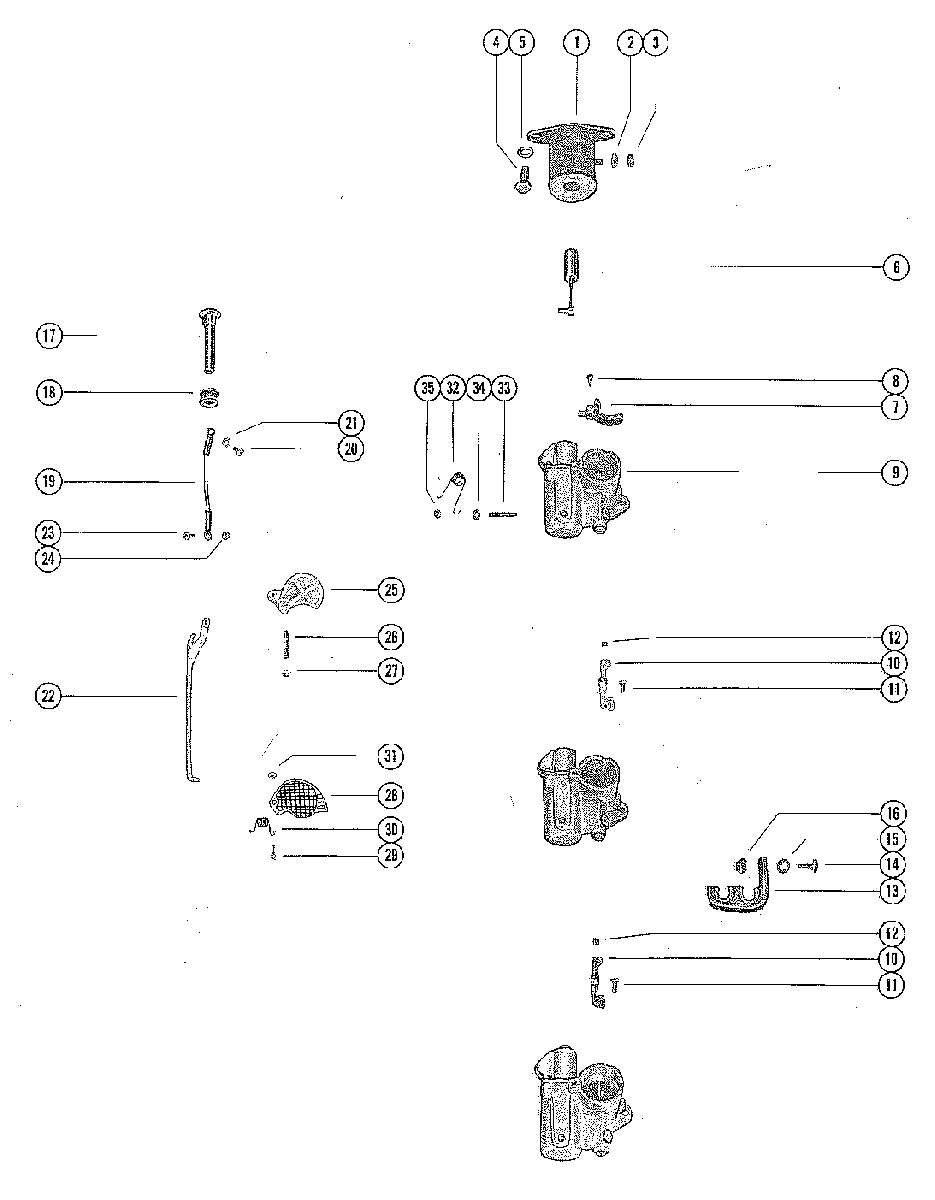

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 1500 7010533 THRU 7112772
-
№АртикулНазвание
-
154293A10 CHOKE SOLENOIDCHOKE SOLENOID
-
213-26996 LOCKWASHER, SOLENOID TERMINALLOCKWASHER, SOLENOID TERMINAL
-
311-68219 NUT, WOLENOID TERMINALNUT, WOLENOID TERMINAL
-
410-25299 SCREW, CHOKE SOLENOID (3/4")SCREW, CHOKE SOLENOID (3/4")
-
513-26993 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
690548A1 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOIDPLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
-
752518 CLUSTER, THROTTLE LEVER (UPPER CARBUREOTR)CLUSTER, THROTTLE LEVER (UPPER CARBUREOTR)
-
81395-6027 SCREW, CLUSTER TO THROTTLE LEVERSCREW, CLUSTER TO THROTTLE LEVER
-
91368-5259A16 CARBURETOR ASSEMBLY, COMPLETE(MERC 1500XS)CARBURETOR ASSEMBLY, COMPLETE(MERC 1500XS)
-
91368-5038A1 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3751849 AND BELOW
AUSTRALIA 8013389 AND BELOW
CANADA 7024372 AND BELOWCARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3751849 AND BELOW
AUSTRALIA 8013389 AND BELOW
CANADA 7024372 AND BELOW -
91368-5259A11 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782 -
91368-5701A5 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4121435 THRU 4602011
AUSTRALIA 8028040 THRU 8034895
CANADA 7048783 THRU 7093097CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4121435 THRU 4602011
AUSTRALIA 8028040 THRU 8034895
CANADA 7048783 THRU 7093097 -
91368-5701A13 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4602012 AND UP
CANADA 7093038 AND UPCARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4602012 AND UP
CANADA 7093038 AND UP -
1053720A2 THROTTLE PICK-UP BRACKET ASSEMBLYTHROTTLE PICK-UP BRACKET ASSEMBLY
-
1110-66104 SCREW, THROTTLE BRACKET MOUNTING (3/4")SCREW, THROTTLE BRACKET MOUNTING (3/4")
-
1228-89694 INSERT, THROTTLE COUPLINGINSERT, THROTTLE COUPLING
-
1359757 BRACKET, COIL LEAD RETAINER
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWBRACKET, COIL LEAD RETAINER
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
1410-64278 SCREW, COIL BRACKET (1")
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWSCREW, COIL BRACKET (1")
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
1512-29245 WASHER, COIL BRACKET SCREW
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWWASHER, COIL BRACKET SCREW
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
1611-20184 NUT, COIL BRACKET SCREW
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWNUT, COIL BRACKET SCREW
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
1790242A1 KNOB, CHOKE RODKNOB, CHOKE ROD
-
1825-20116 GROMMET, CHOKE RODGROMMET, CHOKE ROD
-
1949589 STRAP, CHOKE KNOB TO CHOKE RODSTRAP, CHOKE KNOB TO CHOKE ROD
-
2010-48591 SCREW, STRAP TO CHOKE KNOB (1/2")
USE WITH METAL CHOKE KNOBSCREW, STRAP TO CHOKE KNOB (1/2")
USE WITH METAL CHOKE KNOB -
2113-26996 LOCKWASHER, STRAP SCRW
USE WITH METAL CHOKE KNOBLOCKWASHER, STRAP SCRW
USE WITH METAL CHOKE KNOB -
2010-77137 SCREW, STRAP TO CHOKE KNOB (USE WITH NYLON CHOKE KNOB)SCREW, STRAP TO CHOKE KNOB (USE WITH NYLON CHOKE KNOB)
-
2248203 ROD, CHOKEROD, CHOKE
-
2310-48591 SCREW, STRAP TO CHOKE ROD (1/2")SCREW, STRAP TO CHOKE ROD (1/2")
-
2411-46438 NUT, STRAP TO CHOKE ROD SCREWNUT, STRAP TO CHOKE ROD SCREW
-
2548152 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
2616-69037 STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1 1/8")STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1 1/8")
-
2711-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUDNUT, CHOKE SHUTTER TO CARBURETOR STUD
-
2835-57819 SCREEN ASEEMBLY, FILTER - CARBURETORSCREEN ASEEMBLY, FILTER - CARBURETOR
-
2910-22523 SCREW, LOWER CARB. FITLER SCREEN TO CARB (3/4")SCREW, LOWER CARB. FITLER SCREEN TO CARB (3/4")
-
2910-23015 SCREW, UPPER CARB. FILTER SCREEN TO CARB. (1")SCREW, UPPER CARB. FILTER SCREEN TO CARB. (1")
-
2910-23015 SCREW, UPPER CARB. FILTER SCREEN TO CARB. (1")SCREW, UPPER CARB. FILTER SCREEN TO CARB. (1")
-
3024-57818 SPRING, UPPER FILTER SCREEN SCREWSPRING, UPPER FILTER SCREEN SCREW
-
3111-20110 NUT, CARBURETOR FILTER SCREEN FASTENING SCREWNUT, CARBURETOR FILTER SCREEN FASTENING SCREW
-
3224-48230 SPRING, CHOKE ROD TENSIONSPRING, CHOKE ROD TENSION
-
3310-657461 STUD, CHOKE ROD SPRING TO CARBURETOR (7/8")STUD, CHOKE ROD SPRING TO CARBURETOR (7/8")
-
3423-32427 SPACER, CHOKE ROD SPRING STUDSPACER, CHOKE ROD SPRING STUD
-
3511-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUDNUT, CHOKE ROD SPRING TO CARBURETOR STUD
