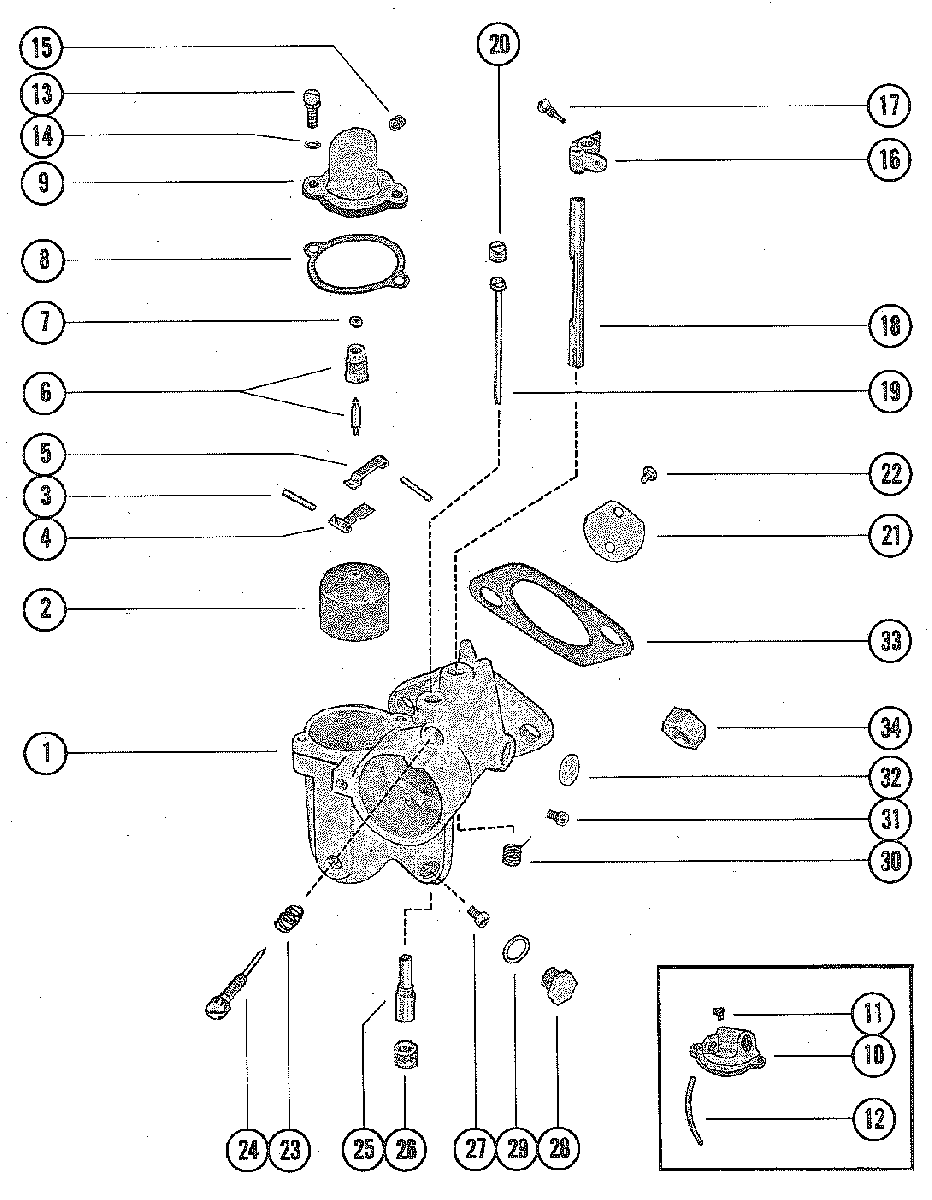

CARBURETOR ASSEMBLY для Mercury - 1500 7010533 THRU 7112772

  • №
    Артикул
    Название
  • 1
    1368-5259A16 CARBURETOR ASSEMBLY(SHORT SHAFT)
    CARBURETOR ASSEMBLY(SHORT SHAFT)
  • 1
    1368-5259A11 CARBURETOR ASSEMBLY(LONG SHAFT)
    UNITED STATES 3751850 THRU 4121434
    AUSTRALIA 8013390 THRU 8028039
    CANADA 7024373 THRU 7048782
    CARBURETOR ASSEMBLY(LONG SHAFT)
    UNITED STATES 3751850 THRU 4121434
    AUSTRALIA 8013390 THRU 8028039
    CANADA 7024373 THRU 7048782
  • 1
    1368-5701A5 CARBURETOR ASSEMBLY(LONG SHAFT)
    UNITED STATES 4121435 THRU 4602011
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7093097
    CARBURETOR ASSEMBLY(LONG SHAFT)
    UNITED STATES 4121435 THRU 4602011
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7093097
  • 1
    1368-5701A13 CARBURETOR ASSEMBLY(LONG SHAFT)
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    CARBURETOR ASSEMBLY(LONG SHAFT)
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
  • 2
    1395-8673 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 3
    90-8M0143356 PIN, FLOAT LEVER PINION
    PIN, FLOAT LEVER PINION
  • 4
    90-8M0143356 LEVER, FLOAT (LOWER)
    LEVER, FLOAT (LOWER)
  • 5
    90-8M0143356 LEVER, FLOAT (UPPER)
    LEVER, FLOAT (UPPER)
  • 6
    1395-83181 INLET NEEDLE, SEAT AND GASKET
    INLET NEEDLE, SEAT AND GASKET
  • 7
    90-8M0143356 GASKET, INLET SEAT
    GASKET, INLET SEAT
  • 8
    90-8M0143356 GASKET, FLOAT BOWL COVER
    GASKET, FLOAT BOWL COVER
  • 9
    1395-5261 COVER, FLOAT BOWL (SHORT SHAFT AND )
    UNITED STATES 3751850 THRU 4121434
    AUSTRALIA 8013390 THRU 8028039
    CANADA 7024373 THRU 7048782
    COVER, FLOAT BOWL (SHORT SHAFT AND )
    UNITED STATES 3751850 THRU 4121434
    AUSTRALIA 8013390 THRU 8028039
    CANADA 7024373 THRU 7048782
  • 10
    1395-5680 COVER, FLOAT BOWL
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    COVER, FLOAT BOWL
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 11
    1395-5733 JET, BOWL VENT
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    JET, BOWL VENT
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 12
    32-892024122 HOSE, ECONOMIZER
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    HOSE, ECONOMIZER
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 13
    10-52195 SCREW, FLOAT BOWL COVER
    UNITED STATES 3751850 THRU 4121434
    AUSTRALIA 8013390 THRU 8028039
    CANADA 7024373 THRU 7048782
    SCREW, FLOAT BOWL COVER
    UNITED STATES 3751850 THRU 4121434
    AUSTRALIA 8013390 THRU 8028039
    CANADA 7024373 THRU 7048782
  • 13
    10-52195 SCREW, FLOAT BOWL COVER
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    SCREW, FLOAT BOWL COVER
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 13
    1395-4804 SCREW, FLOAT BOWL COVER
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    SCREW, FLOAT BOWL COVER
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 14
    13-26995 LOCKWASHER, FLOAT BOWL COVER SCREW
    LOCKWASHER, FLOAT BOWL COVER SCREW
  • 15
    1395-4805 SCREEN, FILTER
    SCREEN, FILTER
  • 16
    8146791 LEVER, THROTTLE STOP
    USED ON CENTER AND LOWER CARBURETOR ONLY--REPLACED WITH A-52518 CLUSTER ON UPPER CARBURETOR.
    LEVER, THROTTLE STOP
    USED ON CENTER AND LOWER CARBURETOR ONLY--REPLACED WITH A-52518 CLUSTER ON UPPER CARBURETOR.
  • 17
    1395-6027 SCREW, THROTTLE STOP LEVER
    SCREW, THROTTLE STOP LEVER
  • 18
    1395-7942 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 19
    90-8M0143356 TUBE, IDLE
    TUBE, IDLE
  • 20
    1395-4540 SCREW, BODY (IDLE TUBE)
    SCREW, BODY (IDLE TUBE)
  • 21
    1395-5666 SHUTTER, THROTTLE
    SHUTTER, THROTTLE
  • 22
    90-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTER
    SCREW AND LOCKWASHER, THROTTLE SHUTTER
  • 23
    90-8M0143356 SPRING, IDLE ADJUSTMENT SCREW
    SPRING, IDLE ADJUSTMENT SCREW
  • 24
    1399-3515 SCREW, IDLE ADJUSTMENT
    SCREW, IDLE ADJUSTMENT
  • 25
    90-8M0143356 NOZZLE, MAIN
    NOZZLE, MAIN
  • 26
    1395-4542 SCREW, PLUG - MAIN NOZZLE
    SCREW, PLUG - MAIN NOZZLE
  • 27
    1399-3518 JET, MAIN FUEL (.082) - STANDARD (SHORT RAFT)
    JET, MAIN FUEL (.082) - STANDARD (SHORT RAFT)
  • 27
    1395-6201 JET, MAIN FUEL (.080) - STANDARD (LONG SHAFT)
    JET, MAIN FUEL (.080) - STANDARD (LONG SHAFT)
  • 27
    1399-3520 JET, MAIN FUEL (.0785)
    JET, MAIN FUEL (.0785)
  • 27
    1399-3796 JET, MAIN FUEL (.076)
    JET, MAIN FUEL (.076)
  • 28
    1395-4541 SCREW, PLUG - MAIN FUEL JET CHANNEL
    SCREW, PLUG - MAIN FUEL JET CHANNEL
  • 29
    90-8M0143356 GASKET, JET CHANNEL PLUG SCREW
    GASKET, JET CHANNEL PLUG SCREW
  • 30
    90-8M0143356 SPRING, THROTTLE SHAFT RETURN
    SPRING, THROTTLE SHAFT RETURN
  • 31
    1395-4543 SCREW, BODY CHANNEL
    SCREW, BODY CHANNEL
  • 31
    1395-4543 SCREW, BODY CHANNEL
    SCREW, BODY CHANNEL
  • 32
    90-8M0143356 WELCH PLUG, BODY CHANNEL
    WELCH PLUG, BODY CHANNEL
  • --
    1395-879194024 GASKET AND PAKCING SET (1 PER CARBURETOR)
    GASKET AND PAKCING SET (1 PER CARBURETOR)
  • --
    1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)-SHORT SHAFT
    REPAIR PARTS KIT (1 PER CARBURETOR)-SHORT SHAFT
  • --
    1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)-LONG SHAFT
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    REPAIR PARTS KIT (1 PER CARBURETOR)-LONG SHAFT
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
  • --
    1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)-LONG SHAFT
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    REPAIR PARTS KIT (1 PER CARBURETOR)-LONG SHAFT
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
  • 33
    27-481641 GASKET, CARBURETOR FLANGE
    GASKET, CARBURETOR FLANGE
  • 34
    11-64809 NUT, CARBURETOR MOUNTING STUD
    NUT, CARBURETOR MOUNTING STUD
