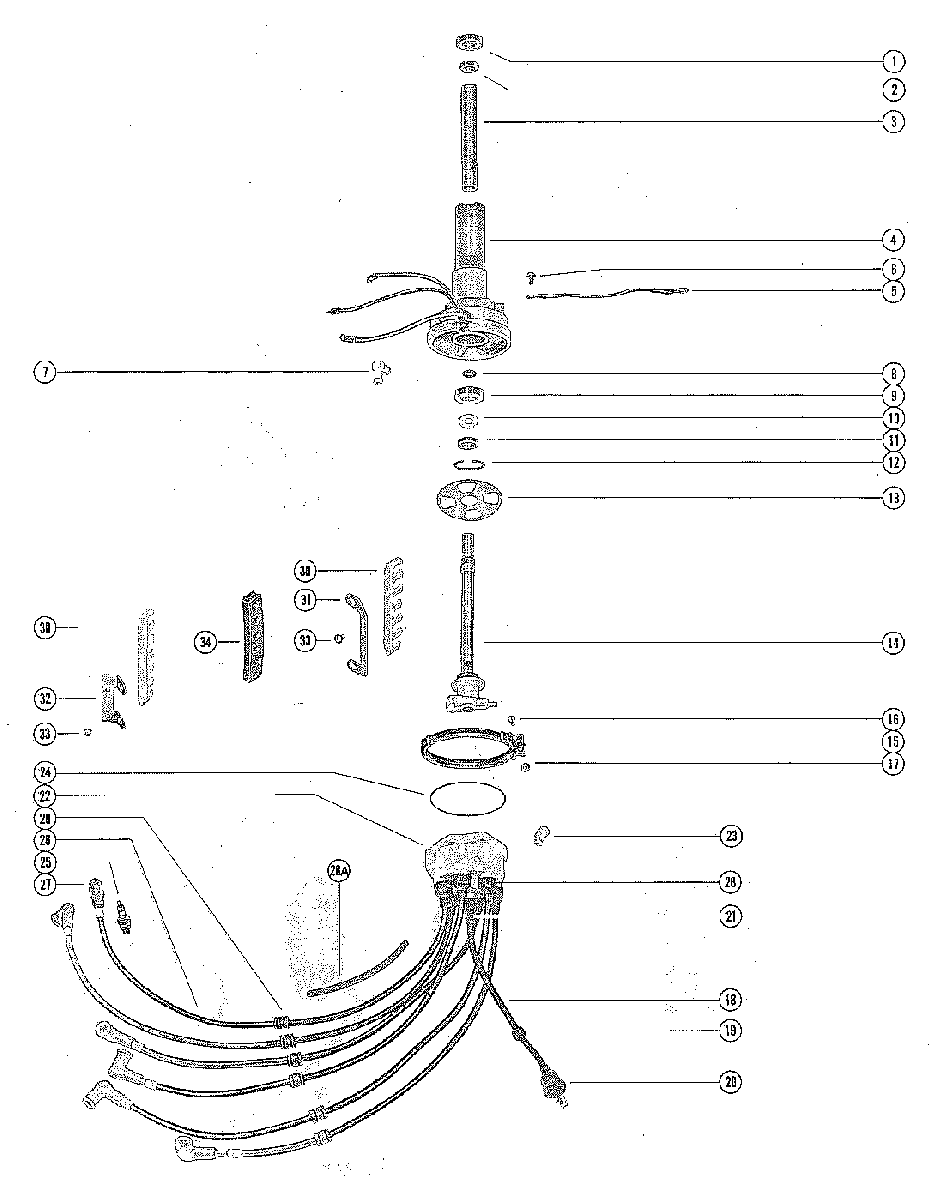

DISTRIBUTOR HOUSING AND ROTOR для Mercury - 1500 7010533 THRU 7112772
-
№АртикулНазвание
-
130-20066 BALL BEARING, DISTRIBUTOR HOUSING (UPPER)BALL BEARING, DISTRIBUTOR HOUSING (UPPER)
-
211-54209 NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSINGNUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING
-
323-53539 SLEEVE, ROTOR SHAFTSLEEVE, ROTOR SHAFT
-
4393-3736A79 HOUSING ASSEMBLY, DISTRIBUTORHOUSING ASSEMBLY, DISTRIBUTOR
-
553417 GROUND STRAP ASSEMBLY, DISTRIBURTOR TO CRANKCASEGROUND STRAP ASSEMBLY, DISTRIBURTOR TO CRANKCASE
-
610-62568 SCREW, GROUND STRAP ATTACHING (3/8")SCREW, GROUND STRAP ATTACHING (3/8")
-
758807A1 FLAME ARRESTOR, VENT - DISTRIBUTOR HOUSINGFLAME ARRESTOR, VENT - DISTRIBUTOR HOUSING
-
815-55853 SHIM BALL BEARING TO DISTRIBUTOR HOUSINGSHIM BALL BEARING TO DISTRIBUTOR HOUSING
-
930-26379 BALL BEARING, DISTRIBUTOR HOUSING (LOWER)BALL BEARING, DISTRIBUTOR HOUSING (LOWER)
-
1015-21148A1 SHIM, BALL BEARING TO SPACERSHIM, BALL BEARING TO SPACER
-
1123-53538 SPACER, ROTOR SHAFTSPACER, ROTOR SHAFT
-
1253-26406 RING, RETAINER - BALL BEARING TO DISTRIBUTOR HOUSINGRING, RETAINER - BALL BEARING TO DISTRIBUTOR HOUSING
-
13393-4313 DISC, ROTORDISC, ROTOR
-
14393-4312 ROTOR, DISTRIBUTORROTOR, DISTRIBUTOR
-
1554-60768 CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HSG
PART OF DISTRIBUTOR CAP ASSEMBLYCLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HSG
PART OF DISTRIBUTOR CAP ASSEMBLY -
1610-65774 SCREW, DISTRIBUTOR CAP CLAMP (1 1/8")
PART OF DISTRIBUTOR CAP ASSEMBLYSCREW, DISTRIBUTOR CAP CLAMP (1 1/8")
PART OF DISTRIBUTOR CAP ASSEMBLY -
1711-26768 NUT, DISTRIBUTOR CAP CLAMP SCREW
PART OF DISTRIBUTOR CAP ASSEMBLYNUT, DISTRIBUTOR CAP CLAMP SCREW
PART OF DISTRIBUTOR CAP ASSEMBLY -
1884-821945A5 CABLE ASSEMBLY, CAP TO COIL
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWCABLE ASSEMBLY, CAP TO COIL
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
1884-821945A2 CABLE ASSEMBLY, CAP TO COIL
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPCABLE ASSEMBLY, CAP TO COIL
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP -
1925-26547 GROMMETT, HIGH TENSION CABLEGROMMETT, HIGH TENSION CABLE
-
20332-2854T01 BOOT, HIGH TENSION CABLE TO COILBOOT, HIGH TENSION CABLE TO COIL
-
2185-94589 BOOT, HIGH TENSION CABLEBOOT, HIGH TENSION CABLE
-
22393-4841A2 DISTRIIBUTOR CAP ASSEMBLYDISTRIIBUTOR CAP ASSEMBLY
-
--393-1293A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
2358807A1 FLAME ARRESTOR, VENT - DISTRIBUTOR CAPFLAME ARRESTOR, VENT - DISTRIBUTOR CAP
-
2427-55896 GASKET, DISTRIBUTOR CAPGASKET, DISTRIBUTOR CAP
-
2533-97180Q SPARK PLUG (CHAMPION L-77V)
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWSPARK PLUG (CHAMPION L-77V)
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
2533-97180Q SPARK PLUG (CHAMPION L-76V)
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPSPARK PLUG (CHAMPION L-76V)
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP -
2684-813715A1 SPARK PLUG LEAD ASEMBLY #1, #2, #3, #4, #5 AND #6
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERSSPARK PLUG LEAD ASEMBLY #1, #2, #3, #4, #5 AND #6
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS -
--8M0084600 CONNECTOR, SPARK PLUG LEADCONNECTOR, SPARK PLUG LEAD
-
2785-63709A1 PROTECTOR, SPARK PLUG LEADPROTECTOR, SPARK PLUG LEAD
-
2885-94589 BOOT, SPARK PLUG LEAD TO DISTRIBUTORBOOT, SPARK PLUG LEAD TO DISTRIBUTOR
-
28A23-622381 SLEEVE, SPARK PLUG LEAD (7")SLEEVE, SPARK PLUG LEAD (7")
-
2925-26547 GROMMET, SPARK PLUG LEADSGROMMET, SPARK PLUG LEADS
-
3045409 WIRE RETAINER, HGIH TENSION LEADSWIRE RETAINER, HGIH TENSION LEADS
-
3145392 BRACKET, FRONT - WIRE REAINERBRACKET, FRONT - WIRE REAINER
-
3145392 BRACKET, FRONT - WIRE RETAINERBRACKET, FRONT - WIRE RETAINER
-
3247398 BRACKET, REAR - WIRE RETAINERBRACKET, REAR - WIRE RETAINER
-
3310-62568 SCREW, FRONT AND REAR BRACKET ATTACHING (3/8")SCREW, FRONT AND REAR BRACKET ATTACHING (3/8")
-
3445391 SPACER, RUBBER - HIGH TENSION LEADSSPACER, RUBBER - HIGH TENSION LEADS
