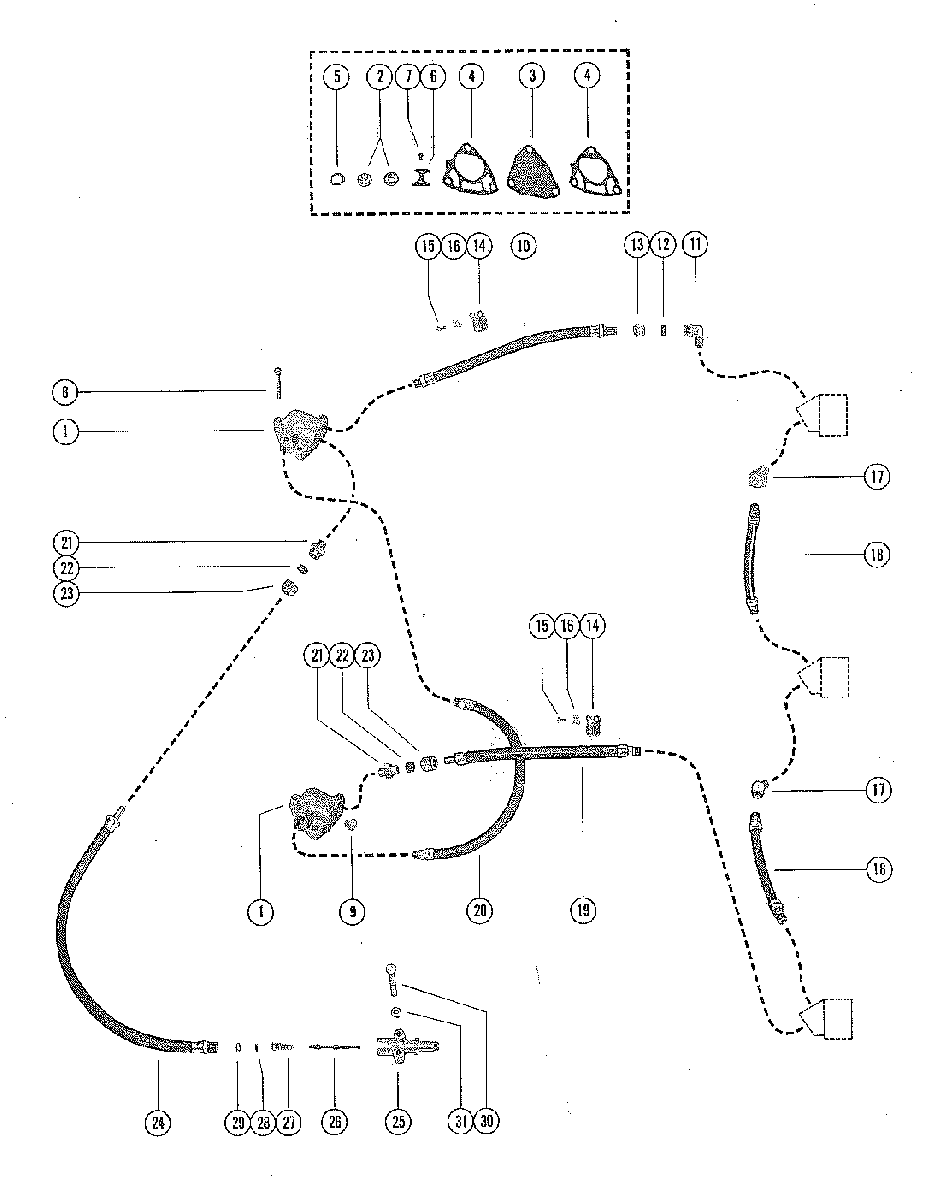

FUEL PUMP AND FUEL LINE ASSEMBLY (SERIAL GROUP #1) для Mercury - 1500 7010533 THRU 7112772

  • №
    Артикул
    Название
  • 1
    55156A5 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-30430A3 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    55278A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 4
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 5
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 6
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 7
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 8
    10-69067 SCREW, FUEL PUMP MOUNTING (1 3)
    SCREW, FUEL PUMP MOUNTING (1 3)
  • 8
    10-69067 SCREW, FUEL PUMP MOUNTING (1 3/8")
    SCREW, FUEL PUMP MOUNTING (1 3/8")
  • 9
    22-328022 PLUG, PIPE - BOTTOM PUMP
    PLUG, PIPE - BOTTOM PUMP
  • 10
    32-33154A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (14 1/8")
    FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (14 1/8")
  • 11
    22-30174 ELBOW, UPPER CARBURETOR STRAINER COVER (90)
    ELBOW, UPPER CARBURETOR STRAINER COVER (90)
  • 12
    22-30175 SLEEVE, CARBURETOR STRAINER COVER ELBOW
    SLEEVE, CARBURETOR STRAINER COVER ELBOW
  • 12
    22-30175 SLEEVE, CARBURETOR STRAINER COVER ELBOW
    SLEEVE, CARBURETOR STRAINER COVER ELBOW
  • 13
    22-30177 NUT, UPPER CARBURETOR STRAINER COVER ELBOW
    NUT, UPPER CARBURETOR STRAINER COVER ELBOW
  • 14
    54-22627 CLIP, FUEL LINE TO CYLINDER BLOCK
    CLIP, FUEL LINE TO CYLINDER BLOCK
  • 15
    10-62568 SCREW, FUEL LINE CLIP TO CYLINDER BLOCK (3/8")
    SCREW, FUEL LINE CLIP TO CYLINDER BLOCK (3/8")
  • 16
    8M0084613 "D" WASHER, FUEL LINE CLIP SCREW
    "D" WASHER, FUEL LINE CLIP SCREW
  • 17
    22-8M0123050 ELBOW, FUEL LINE TO CARBURETOR (45)
    ELBOW, FUEL LINE TO CARBURETOR (45)
  • 18
    32-31584A1 FUEL LINE ASSEMBLY, CARBURETOR TO CARBURETOR (6 9/16")
    FUEL LINE ASSEMBLY, CARBURETOR TO CARBURETOR (6 9/16")
  • 19
    32-55827A1 FUEL LINE ASS'Y, PUMP TO CARB. (9 1/2") (#32-55827A1)
    FUEL LINE ASS'Y, PUMP TO CARB. (9 1/2") (#32-55827A1)
  • 20
    32-55828A1 FUEL LINE ASS'Y, PUMP TO PUMP (13 3/4") (#32-55828A1)
    FUEL LINE ASS'Y, PUMP TO PUMP (13 3/4") (#32-55828A1)
  • 21
    22-30468 FITTING, TOP AND BOTTOM PUMP
    FITTING, TOP AND BOTTOM PUMP
  • 23
    22-30177 NUT, TOP AND BOTTOM PUMP FITTING
    NUT, TOP AND BOTTOM PUMP FITTING
  • 24
    32-55829 FUEL LINE, ADAPTOR TO LOWER FUEL PUMP (15")
    FUEL LINE, ADAPTOR TO LOWER FUEL PUMP (15")
  • 25
    30186 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 26
    30185Q3 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 27
    24-30189 SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 28
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 29
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 30
    10-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
    SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
  • 30
    10-88488 SCREW, ADAPTOR TO BOTTOM COWL (3 1/4")
    SCREW, ADAPTOR TO BOTTOM COWL (3 1/4")
  • 31
    11-20184 NUT, ADAPTOR FASTENING SCREW
    NUT, ADAPTOR FASTENING SCREW
