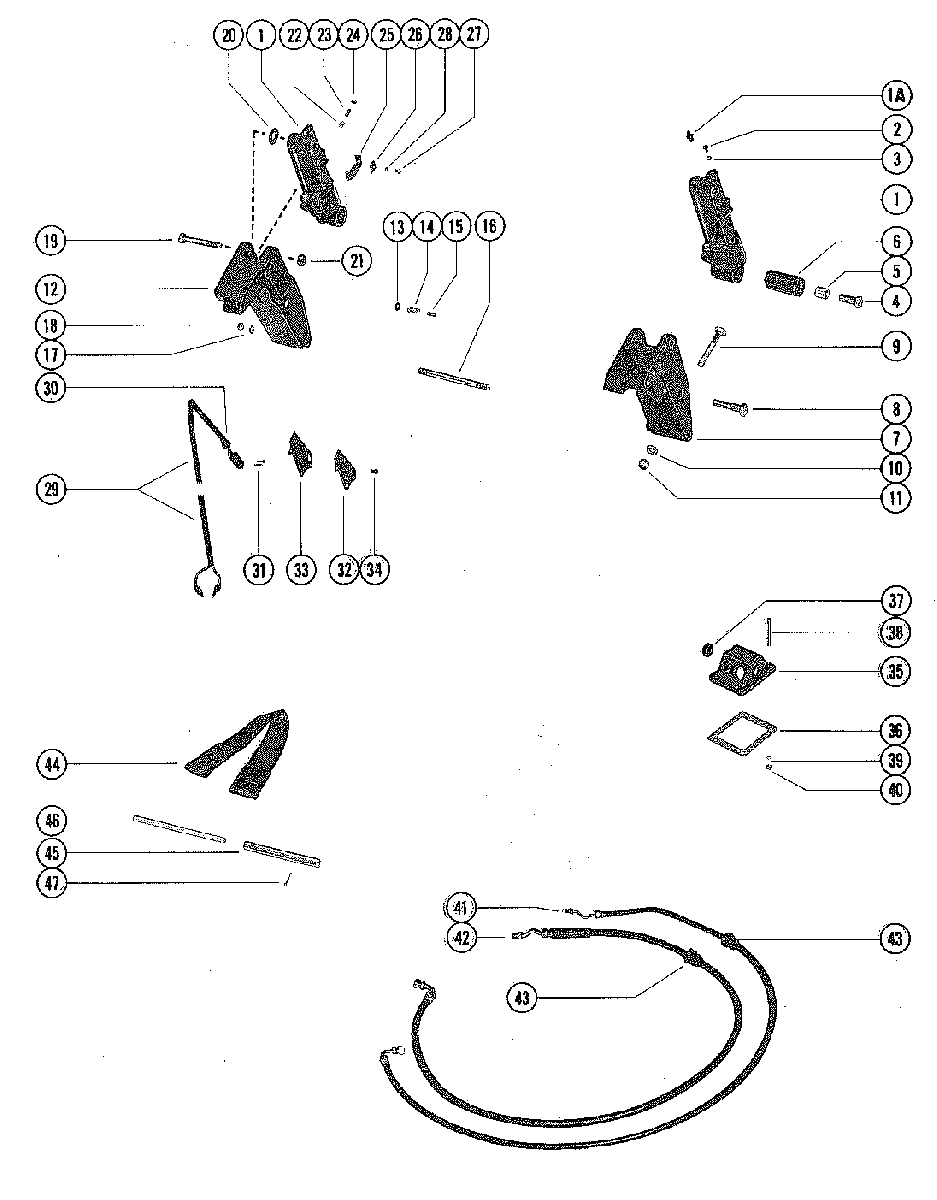

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercury - 140 7132513 THRU 7150412

  • №
    Артикул
    Название
  • 1
    92194A14 TRIM CYLINDER ASSEMBLY
    TRIM CYLINDER ASSEMBLY
  • 1A
    22-74036 GREASE FITTING
    GREASE FITTING
  • 2
    10-45265 SCREW, BLEED - SHOCK CYLINDER
    SCREW, BLEED - SHOCK CYLINDER
  • 3
    25-45016 "O" RING, SHOCK CYLINDER BLEED SCREW
    "O" RING, SHOCK CYLINDER BLEED SCREW
  • 4
    10-45264 SCREW
    SHOCK CYLINDER TO LOWER SHOCK PIN (1 9/16")
    SCREW
    SHOCK CYLINDER TO LOWER SHOCK PIN (1 9/16")
  • 5
    23-45280 SPACER, SHOCK CYLINDER - LOWER
    SPACER, SHOCK CYLINDER - LOWER
  • 6
    23-94907A1 BUSHING, RUBBER - SHOCK CYLINDER
    BUSHING, RUBBER - SHOCK CYLINDER
  • 7
    89108A3 BRACKET, MOUNTING - SHOCK CYLINDER (PORT)
    BRACKET, MOUNTING - SHOCK CYLINDER (PORT)
  • 8
    10-45263 SCREW
    MOUNTING BRACKET TO UPPER SHOCK PIN (2 1/4")
    SCREW
    MOUNTING BRACKET TO UPPER SHOCK PIN (2 1/4")
  • 9
    10-68298 BOLT
    MOUNTING BRACKET TO BOAT TRANSOM (3 1/4")
    BOLT
    MOUNTING BRACKET TO BOAT TRANSOM (3 1/4")
  • 10
    12-46765 WASHER, MOUNTING BRACKET BOLT
    WASHER, MOUNTING BRACKET BOLT
  • 11
    11-82670912 NUT, MOUNTING BRACKET BOLT
    NUT, MOUNTING BRACKET BOLT
  • 12
    89807A1 BRACKET ASSEMBLY
    MOUNTING - SHOCK CYLINDER (STARBOARD)
    BRACKET ASSEMBLY
    MOUNTING - SHOCK CYLINDER (STARBOARD)
  • 13
    26-70608 OIL SEAL, STARBOARD MOUNTING BRACKET
    OIL SEAL, STARBOARD MOUNTING BRACKET
  • 14
    89290 PLUNGER, LIMIT SWITCH ACTUATING
    PLUNGER, LIMIT SWITCH ACTUATING
  • 15
    24-95881 SPRING, TENSION - LIMIT SWITCH PLUNGER
    SPRING, TENSION - LIMIT SWITCH PLUNGER
  • 16
    16-45282 STUD, MOUNTING BRACKET AND CLAMP BRACKET
    STUD, MOUNTING BRACKET AND CLAMP BRACKET
  • 17
    13-26993 LOCKWASHER
    MOUNTING BRACKET TO CLAMP BRACKET STUD
    LOCKWASHER
    MOUNTING BRACKET TO CLAMP BRACKET STUD
  • 18
    11-28770 NUT
    MOUNTING BRACKET TO CLAMP BRACKET STUD
    NUT
    MOUNTING BRACKET TO CLAMP BRACKET STUD
  • 19
    10-45328 SCREW
    SHOCK CYLINDER TO MOUNTING BRACKET (3 9/16")
    SCREW
    SHOCK CYLINDER TO MOUNTING BRACKET (3 9/16")
  • 20
    12-37807 WASHER
    SHOCK CYLINDER SCREW (STARBOARD ONLY)
    WASHER
    SHOCK CYLINDER SCREW (STARBOARD ONLY)
  • 21
    11-20696 NUT, SHOCK CYLINDER SCREW
    NUT, SHOCK CYLINDER SCREW
  • 22
    24-24390 SPRING, TENSION - ADJUSTING STUD
    SPRING, TENSION - ADJUSTING STUD
  • 23
    16-8M0034461 STUD, ADJUSTING - CUT-OUT LIMIT SWITCH (15/16")
    STUD, ADJUSTING - CUT-OUT LIMIT SWITCH (15/16")
  • 24
    11-859124 NUT, JAM - LIMIT SWITCH ADJUSTING STUD
    NUT, JAM - LIMIT SWITCH ADJUSTING STUD
  • 25
    99897 CAM, LIMIT SWITCH ADJUSTING STUD
    CAM, LIMIT SWITCH ADJUSTING STUD
  • 26
    86967 PLATE, RETAINING - LIMIT SWITCH CAM
    PLATE, RETAINING - LIMIT SWITCH CAM
  • 27
    10-68513 SCREW
    RETAINING PLATE AND CAM TO SHOCK CYLINDER (3/8")
    SCREW
    RETAINING PLATE AND CAM TO SHOCK CYLINDER (3/8")
  • 28
    13-26996 LOCKWASHER
    RETAINING PLATE AND CAM SCREW
    LOCKWASHER
    RETAINING PLATE AND CAM SCREW
  • 29
    45326A2 SWITCH ASSEMBLY, CUT-OUT LIMIT
    SWITCH ASSEMBLY, CUT-OUT LIMIT
  • 30
    23-45354 BUSHING, RUBBER - CUT-OUT LIMIT SWITCH
    BUSHING, RUBBER - CUT-OUT LIMIT SWITCH
  • 31
    10-47255 SCREW
    CUT-OUT LIMIT SWITCH TO MOUNTING BRACKET (9/16")
    SCREW
    CUT-OUT LIMIT SWITCH TO MOUNTING BRACKET (9/16")
  • 32
    45287 COVER, LIMIT SWITCH
    COVER, LIMIT SWITCH
  • 33
    27-45275 GASKET, LIMIT SWITCH COVER
    GASKET, LIMIT SWITCH COVER
  • 34
    10-24942 SCREW
    LIMIT SWITCH COVER TO MOUNTING BRACKET (7/16")
    SCREW
    LIMIT SWITCH COVER TO MOUNTING BRACKET (7/16")
  • 35
    87774A1 COVER, INLET - TRANSOM
    COVER, INLET - TRANSOM
  • 36
    27-45274 GASKET, INLET COVER
    GASKET, INLET COVER
  • 37
    25-45507 GROMMET, RUBBER - INLET COVER
    GROMMET, RUBBER - INLET COVER
  • 38
    10-32866 SCREW, INLET COVER TO BOAT (2")
    SCREW, INLET COVER TO BOAT (2")
  • 39
    12-20878 WASHER, INLET COVER SCREW
    WASHER, INLET COVER SCREW
  • 40
    11-826709106 NUT, INLET COVER SCREW
    NUT, INLET COVER SCREW
  • 41
    32-88005 HOSE
    TRIM - CYLINDER TO CONTROL VALVE (5") - 13/32" O.D.
    HOSE
    TRIM - CYLINDER TO CONTROL VALVE (5") - 13/32" O.D.
  • 42
    32-88006 HOSE
    LIFT - CYLINDER TO CONTROL VALVE (5") - 17/32" O.D.
    HOSE
    LIFT - CYLINDER TO CONTROL VALVE (5") - 17/32" O.D.
  • 43
    23-35977 GROMMET, RUBBER - LIFT HOSE AND TRIM HOSE
    GROMMET, RUBBER - LIFT HOSE AND TRIM HOSE
  • 44
    73519A1 TILT STOP
    TILT STOP
  • 45
    69259 TUBE, MOUNTING - TILT STOP
    TUBE, MOUNTING - TILT STOP
  • 46
    77669 PIN, MOUNTING TUBE
    PIN, MOUNTING TUBE
  • 47
    18-36002 COTTER PIN, MOUNTING TUBE PIN
    COTTER PIN, MOUNTING TUBE PIN
