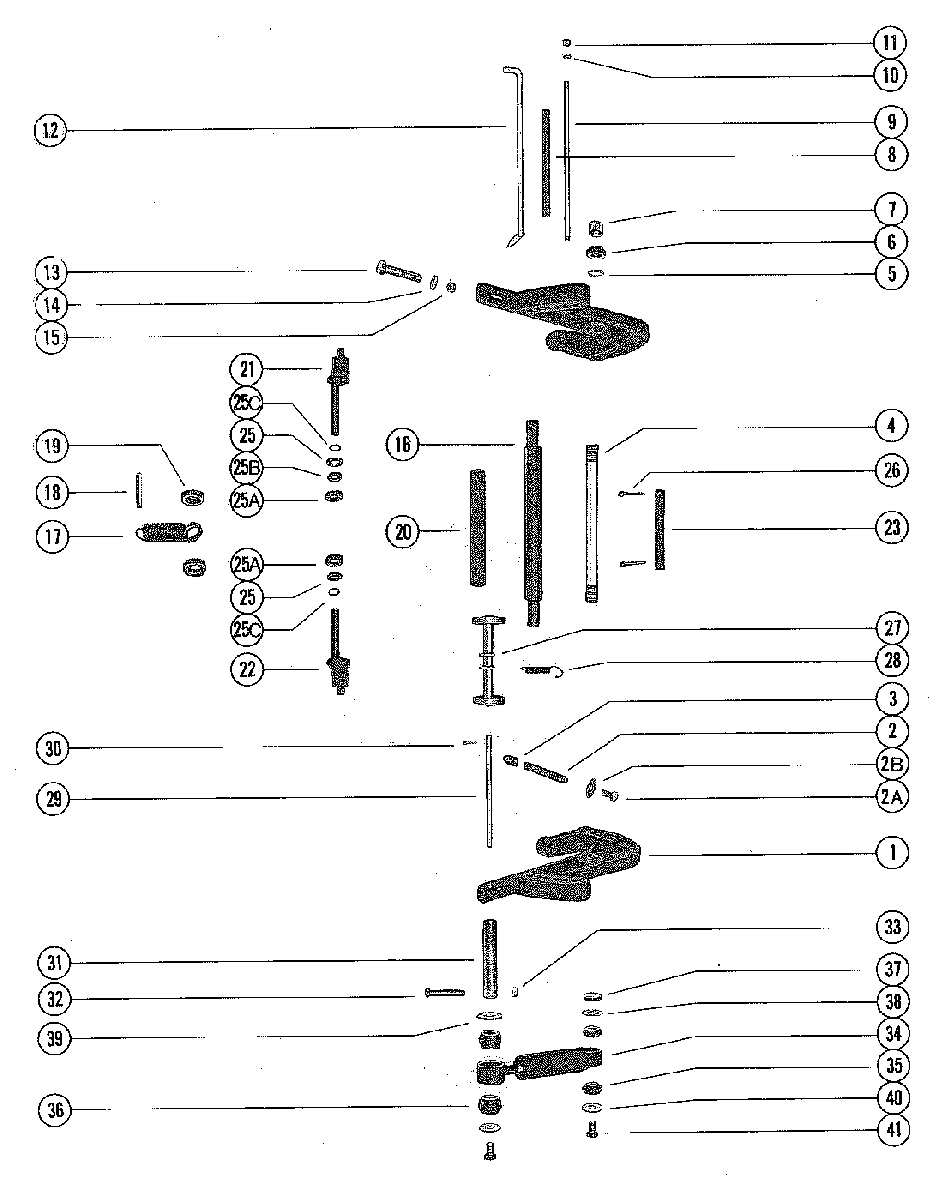

CLAMP BRACKET AND REVERSE LOCK для Mercury - 140 7132513 THRU 7150412

  • №
    Артикул
    Название
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 2A
    10-78495 SCREW, WASHER ATTACHING
    SCREW, WASHER ATTACHING
  • 2B
    12-78493 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 3
    75043 CAP, THUMB SCREW
    CAP, THUMB SCREW
  • 4
    8M0041936 TUBE
    TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE
    TILT - CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    12-52864 WASHER, CLAMP BRACKET TILT TUBE
    WASHER, CLAMP BRACKET TILT TUBE
  • 6
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 7
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 8
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 9
    16-59625 STUD
    CLAMP BRACKET (NOT USED WITH FULL POWER TRIM)
    STUD
    CLAMP BRACKET (NOT USED WITH FULL POWER TRIM)
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-28770 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    (NOT USED WITH FULL POWER TRIM)
    TILT LOCK PIN ASSEMBLY
    (NOT USED WITH FULL POWER TRIM)
  • 13
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM
    (LOWER)
    BOLT, CLAMP BRACKET TO BOAT TRANSOM
    (LOWER)
  • 13
    10-68299 BOLT, CLAMP BRACKET TO BOAT TRANSOM
    (UPPER)
    BOLT, CLAMP BRACKET TO BOAT TRANSOM
    (UPPER)
  • 14
    12-46765 WASHER, CLAMP BRACKET BOLT (LOWER)
    WASHER, CLAMP BRACKET BOLT (LOWER)
  • 14
    12-68300 WASHER, CLAMP BRACKET BOLT (UPPER)
    WASHER, CLAMP BRACKET BOLT (UPPER)
  • 15
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 16
    55-28416 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
  • 17
    24-94891 SPRING, COIL - SWIVEL BRACKET
    -NOT USED WITH FULL POWER TRIM
    SPRING, COIL - SWIVEL BRACKET
    -NOT USED WITH FULL POWER TRIM
  • 18
    17-38311 PIN, COIL SPRING MOUNTING
    -NOT USED WITH FULL POWER TRIM
    PIN, COIL SPRING MOUNTING
    -NOT USED WITH FULL POWER TRIM
  • 19
    23-28688 SPACER, RUBBER - COIL SPRING POSITIONING
    -NOT USED WITH FULL POWER TRIM
    SPACER, RUBBER - COIL SPRING POSITIONING
    -NOT USED WITH FULL POWER TRIM
  • 20
    63473 TUBE
    CUSHING - SHOCK PIN (USED WITH FULL POWER TRIM)
    TUBE
    CUSHING - SHOCK PIN (USED WITH FULL POWER TRIM)
  • 21
    76386 TILT LOCK ASSEMBLY (STARBOARD)
    TILT LOCK ASSEMBLY (STARBOARD)
  • 22
    76385T TILT LOCK ASSEMBLY (PORT)
    TILT LOCK ASSEMBLY (PORT)
  • 23
    79659 TUBE, TILT LOCK
    TUBE, TILT LOCK
  • 25
    13-69150 WASHER
    WAVE - TILT LOCK (STARBOARD SIDE ONLY)
    WASHER
    WAVE - TILT LOCK (STARBOARD SIDE ONLY)
  • 25A
    26-22734 OIL SEAL, SWIVEL BRACKET (TILT LOCK)
    OIL SEAL, SWIVEL BRACKET (TILT LOCK)
  • 25B
    12-76388 WASHER, TILT LOCK (STARBOARD SIDE ONLY)
    WASHER, TILT LOCK (STARBOARD SIDE ONLY)
  • 25C
    25-627021 "O" RING, TILT LOCK
    "O" RING, TILT LOCK
  • 26
    18-47959 COTTER PIN, TILT LOCK
    COTTER PIN, TILT LOCK
  • 27
    87431 REVERSE LOCK ASSEMBLY
    -NOT USED WITH FULL POWER TRIM
    REVERSE LOCK ASSEMBLY
    -NOT USED WITH FULL POWER TRIM
  • 28
    24-78203A2 SPRING, REVERSE LOCK TENSION
    -NOT USED WITH FULL POWER TRIM
    SPRING, REVERSE LOCK TENSION
    -NOT USED WITH FULL POWER TRIM
  • 29
    56349 SHAFT, REVERSE LOCK PIVOT
    -NOT USED WITH FULL POWER TRIM
    SHAFT, REVERSE LOCK PIVOT
    -NOT USED WITH FULL POWER TRIM
  • 30
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    -NOT USED WITH FULL POWER TRIM
    COTTER PIN, REVERSE LOCK TO SHAFT
    -NOT USED WITH FULL POWER TRIM
  • 31
    55-28414 PIN, LOWER SHOCK MOUNTING
    PIN, LOWER SHOCK MOUNTING
  • 32
    10-21937 SCREW, LOWER SHOCK PIN
    SCREW, LOWER SHOCK PIN
  • 33
    11-20184 NUT, LOWER SHOCK PIN SCREW
    NUT, LOWER SHOCK PIN SCREW
  • 34
    55-58780A7 SHOCK ABSORBER
    -NOT USED WITH FULL POWER TRIM
    SHOCK ABSORBER
    -NOT USED WITH FULL POWER TRIM
  • 35
    23-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
    -NOT USED WITH FULL POWER TRIM
    BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
    -NOT USED WITH FULL POWER TRIM
  • 36
    23-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
    -NOT USED WITH FULL POWER TRIM
    BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
    -NOT USED WITH FULL POWER TRIM
  • 37
    23-73203 SPACER
    UPPER SHOCK BUSHING TO CLAMP BRACKET
    SPACER
    UPPER SHOCK BUSHING TO CLAMP BRACKET
  • 38
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    WASHER, UPPER BUSHING RETAINER (INNER)
  • 39
    12-59378 WASHER, LOWER BUSHING RETAINER (INNER)
    WASHER, LOWER BUSHING RETAINER (INNER)
  • 40
    12-69374 WASHER
    UPPER AND LOWER BUSHING RETAINER (OUTER)
    WASHER
    UPPER AND LOWER BUSHING RETAINER (OUTER)
  • 41
    10-69375 SCREW
    UPPER AND LOWER SHOCK MOUNTING PIN
    SCREW
    UPPER AND LOWER SHOCK MOUNTING PIN
  • 42
    27-85653A87 GASKET SET
    GASKET SET
