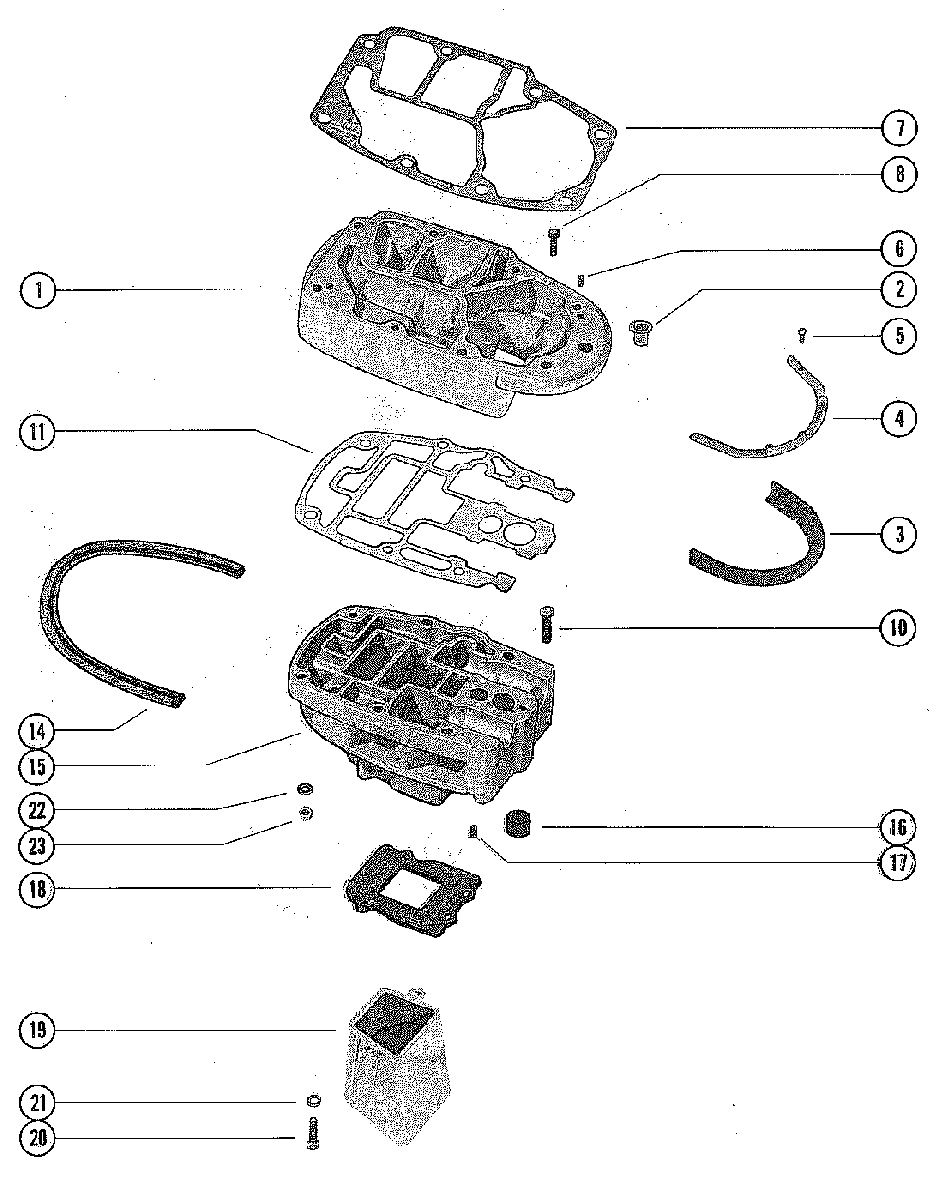

EXHAUST EXTENSION PLATE для Mercury - 140 7132513 THRU 7150412
-
№АртикулНазвание
-
143289A2 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
223-27132 BUSHING, NYLON - EXHAUST EXTENSION PLATEBUSHING, NYLON - EXHAUST EXTENSION PLATE
-
337918 SEAL, EXHAUST EXTENSION PLATESEAL, EXHAUST EXTENSION PLATE
-
499358 STRIP
RETAINING - EXHAUST EXTENSION PLATE SEALSTRIP
RETAINING - EXHAUST EXTENSION PLATE SEAL -
510-37571 SCREW
SEAL AND RETAINING STRIP TO EXT. PLATE (1/2")SCREW
SEAL AND RETAINING STRIP TO EXT. PLATE (1/2") -
617-23784 DOWEL PIN, EXHAUST EXTENSION PLATEDOWEL PIN, EXHAUST EXTENSION PLATE
-
727-692381 GASKET, POWERHEAD TO EXTENSION PLATE
.GASKET, POWERHEAD TO EXTENSION PLATE
. -
810-66023 SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")
-
1010-66023 SCREW
HOUSING PLATE TO DRIVE SHAFT HSG. (2")SCREW
HOUSING PLATE TO DRIVE SHAFT HSG. (2") -
1127-661021 GASKET, PLATE TO DRIVE SHAFT HSG. PLATE
.GASKET, PLATE TO DRIVE SHAFT HSG. PLATE
. -
1426-60898 SEAL, DRIVE SHAFT HOUSING PLATESEAL, DRIVE SHAFT HOUSING PLATE
-
1543290A4 PLATE ASSEMLBY, DRIVE SHAFT HOUSINGPLATE ASSEMLBY, DRIVE SHAFT HOUSING
-
1626-38970 SEAL, RUBBER - WATER INLET TUBE
.SEAL, RUBBER - WATER INLET TUBE
. -
1717-23784 DOWEL PIN, DRIVE SHAFT HOUSING PLATEDOWEL PIN, DRIVE SHAFT HOUSING PLATE
-
1827-62362 GASKET
MEGAPHONE TO DRIVE SHAFT HOUSING PLATEGASKET
MEGAPHONE TO DRIVE SHAFT HOUSING PLATE -
1999699 MEGAPHONE, EXHAUSTMEGAPHONE, EXHAUST
-
2010-60480 SCREW
MEGAPHONE TO DRIVE SHAFT HOUSING PLATE (1 1/8")SCREW
MEGAPHONE TO DRIVE SHAFT HOUSING PLATE (1 1/8") -
2112-29245 WASHER, MEGAPHONE SCREWWASHER, MEGAPHONE SCREW
-
2212-20553 WASHER, POWERHEAD STUDWASHER, POWERHEAD STUD
-
2311-82671013 NUT, POWERHEAD STUDNUT, POWERHEAD STUD
-
-27-85653A87 GASKET SETGASKET SET
