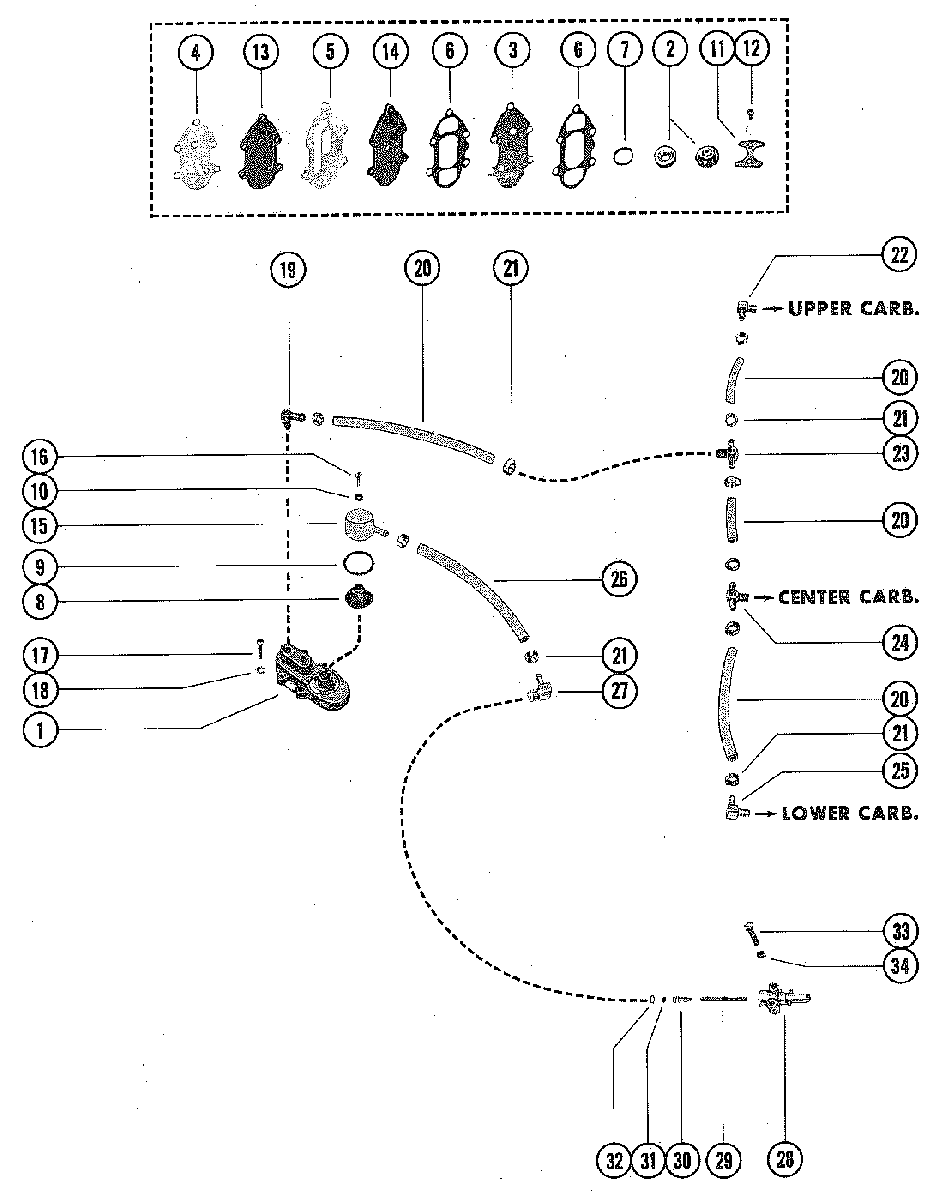

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 140 7132513 THRU 7150412

  • №
    Артикул
    Название
  • 1
    13527A1 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-8M0084277 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    89031A3 DIAPHRAGM ASSEMBLY
    DIAPHRAGM ASSEMBLY
  • 4
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 5
    90-8M0143356 GASKET, PULSE CHAMBER
    GASKET, PULSE CHAMBER
  • 6
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 7
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 8
    35-59072 SCREEN, FUEL INLET
    SCREEN, FUEL INLET
  • 9
    90-8M0143356 "O" RING, FUEL INLET COVER
    "O" RING, FUEL INLET COVER
  • 10
    90-8M0143356 GASKET, COVER ATTACHING SCREW
    GASKET, COVER ATTACHING SCREW
  • 11
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 12
    10-43725 SCREW, RETAINER ATTACHING
    SCREW, RETAINER ATTACHING
  • 13
    86295 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 14
    879901 CHAMBER, PULSE - FUEL PUMP
    CHAMBER, PULSE - FUEL PUMP
  • 15
    35-91078A1 COVER, FUEL INLET
    COVER, FUEL INLET
  • 16
    10-37370 SCREW, FUEL FILTER COVER ATTACHING (5/8")
    SCREW, FUEL FILTER COVER ATTACHING (5/8")
  • 17
    10-73013 SCREW, FUEL PUMP ATTACHING (1 1/2")
    SCREW, FUEL PUMP ATTACHING (1 1/2")
  • 18
    13-26996 LOCKWASHER, FUEL PUMP ATTACHING SCREW
    LOCKWASHER, FUEL PUMP ATTACHING SCREW
  • 19
    22-19688 FITTING, FULE OUTLET
    FITTING, FULE OUTLET
  • 20
    32-8M0108355 FUEL LINE
    FUEL PUMP TO CARBURETOR (6 1/4" - 2 3/4")
    FUEL LINE
    FUEL PUMP TO CARBURETOR (6 1/4" - 2 3/4")
  • 21
    54-68424 CLAMP, FUEL LINE ATTACHING
    CLAMP, FUEL LINE ATTACHING
  • 22
    22-19688 FITTING, ELBOW - UPPER CARBURETOR
    FITTING, ELBOW - UPPER CARBURETOR
  • 23
    22-73318 TEE, FUEL LINE
    TEE, FUEL LINE
  • 24
    22-64706001 FITTING, TEE - CENTER CARBURETOR
    FITTING, TEE - CENTER CARBURETOR
  • 25
    22-19688 FITTING, ELBOW - LOWER CARBUETOR
    FITTING, ELBOW - LOWER CARBUETOR
  • 26
    32-8M0108355 FUEL LINE, ADAPTOR TO FUEL PUMP (16")
    FUEL LINE, ADAPTOR TO FUEL PUMP (16")
  • 27
    22-63981 ELBOW, FULE LINE TO ADAPTOR
    ELBOW, FULE LINE TO ADAPTOR
  • 28
    22833 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 29
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 30
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 31
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 32
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 33
    10-69029 SCREW. ADAPTOR TO BOTTOM COWL (1 3/4")
    SCREW. ADAPTOR TO BOTTOM COWL (1 3/4")
  • 34
    11-36069 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
  • -
    27-85653A87 GASKET SET
    GASKET SET
