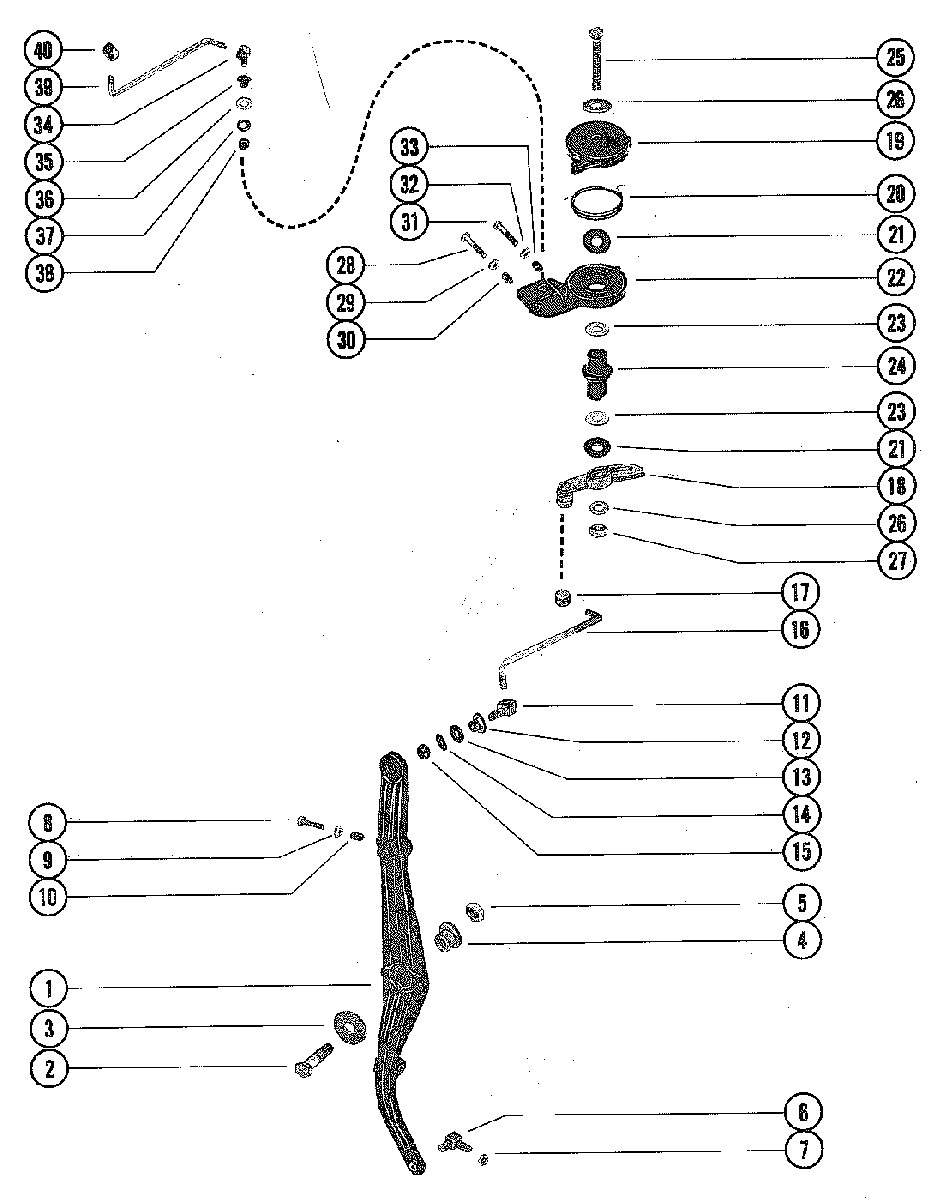

THROTTLE LEVER AND LINK RODS для Mercury - 140 7132513 THRU 7150412
-
№АртикулНазвание
-
179900 LEVER, THROTTLELEVER, THROTTLE
-
210-31830 SCREW, THROTTLE LEVER TO EXHAUST COVERSCREW, THROTTLE LEVER TO EXHAUST COVER
-
312-8M0042641 WASHER, THROTTLE LEVER SCREWWASHER, THROTTLE LEVER SCREW
-
423-45818 BUSHING, THROTTLE LEVER SCREWBUSHING, THROTTLE LEVER SCREW
-
511-8M0042636 NUT, THROTTLE LEVER SCREWNUT, THROTTLE LEVER SCREW
-
637587 SWIVEL, THROTTLE LEVER TO THROTTLE CABLESWIVEL, THROTTLE LEVER TO THROTTLE CABLE
-
711-8M0042636 NUT, THROTTLE CABLE TO SWIVELNUT, THROTTLE CABLE TO SWIVEL
-
810-75168 SCREW, ADJUSTING - THROTTLE LEVERSCREW, ADJUSTING - THROTTLE LEVER
-
911-29598 NUT, ADJUSTING SCREWNUT, ADJUSTING SCREW
-
1052023 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
1177013A1 SWIVEL ASSEMBLY, THROTTLE LEVERSWIVEL ASSEMBLY, THROTTLE LEVER
-
1223-26856 BUSHING, SWIVELBUSHING, SWIVEL
-
1312-73288 WASHER, SWIVELWASHER, SWIVEL
-
1413-29402 WAVE WASHER, SWIVELWAVE WASHER, SWIVEL
-
1511-45774 NUT, SWIVEL TO THROTTLE LEVERNUT, SWIVEL TO THROTTLE LEVER
-
1685300 LINK ROD, THROTTLELINK ROD, THROTTLE
-
1723-74213 SWIVEL, LINK ROD TO THROTTLE CAMSWIVEL, LINK ROD TO THROTTLE CAM
-
1888754 THROTTLE CAMTHROTTLE CAM
-
1985082 HOUSING, THROTTLE - UPPERHOUSING, THROTTLE - UPPER
-
2024-95721 SPRING, TORSION - SHAFTSPRING, TORSION - SHAFT
-
2112-85303 WASHER, PLASTIC - THROTTLE CAMWASHER, PLASTIC - THROTTLE CAM
-
2279903F1 HOUSING, THROTTLE - LOWERHOUSING, THROTTLE - LOWER
-
2313-86498 WAVE WASHER, SHAFTWAVE WASHER, SHAFT
-
2487937 SHAFT, THROTTLE AND SPARK ADVANCESHAFT, THROTTLE AND SPARK ADVANCE
-
2510-28239 SCREW, THROTTLE HOUSINGSCREW, THROTTLE HOUSING
-
2612-35462 WASHER, THROTTLE HOUSING SCREWWASHER, THROTTLE HOUSING SCREW
-
2711-8267088 NUT, THROTTLE HOUSING SCREWNUT, THROTTLE HOUSING SCREW
-
2810-75168 SCREW, ADJUSTING - LOWER HOUSING (2 1/4")SCREW, ADJUSTING - LOWER HOUSING (2 1/4")
-
2911-29598 NUT, ADJUSTING SCREWNUT, ADJUSTING SCREW
-
3052023 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
3110-25158 SCREW, ADJUSTING - LOWER HOUSING (1 1/2")SCREW, ADJUSTING - LOWER HOUSING (1 1/2")
-
3211-68219 NUT, ADJUSTING SCREWNUT, ADJUSTING SCREW
-
3348039 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
3477013A1 SWIVEL ASSEMBLY, SPARK LINKSWIVEL ASSEMBLY, SPARK LINK
-
3523-26856 BUSHING, SWIVELBUSHING, SWIVEL
-
3612-73288 WASHER, SWIVELWASHER, SWIVEL
-
3713-29402 WAVE WASHER, SWIVELWAVE WASHER, SWIVEL
-
3811-45774 NUT, SWIVELNUT, SWIVEL
-
3985301 SPARK LINKSPARK LINK
-
4074897T BARREL, SPARK LINK TO TRIGGERBARREL, SPARK LINK TO TRIGGER
