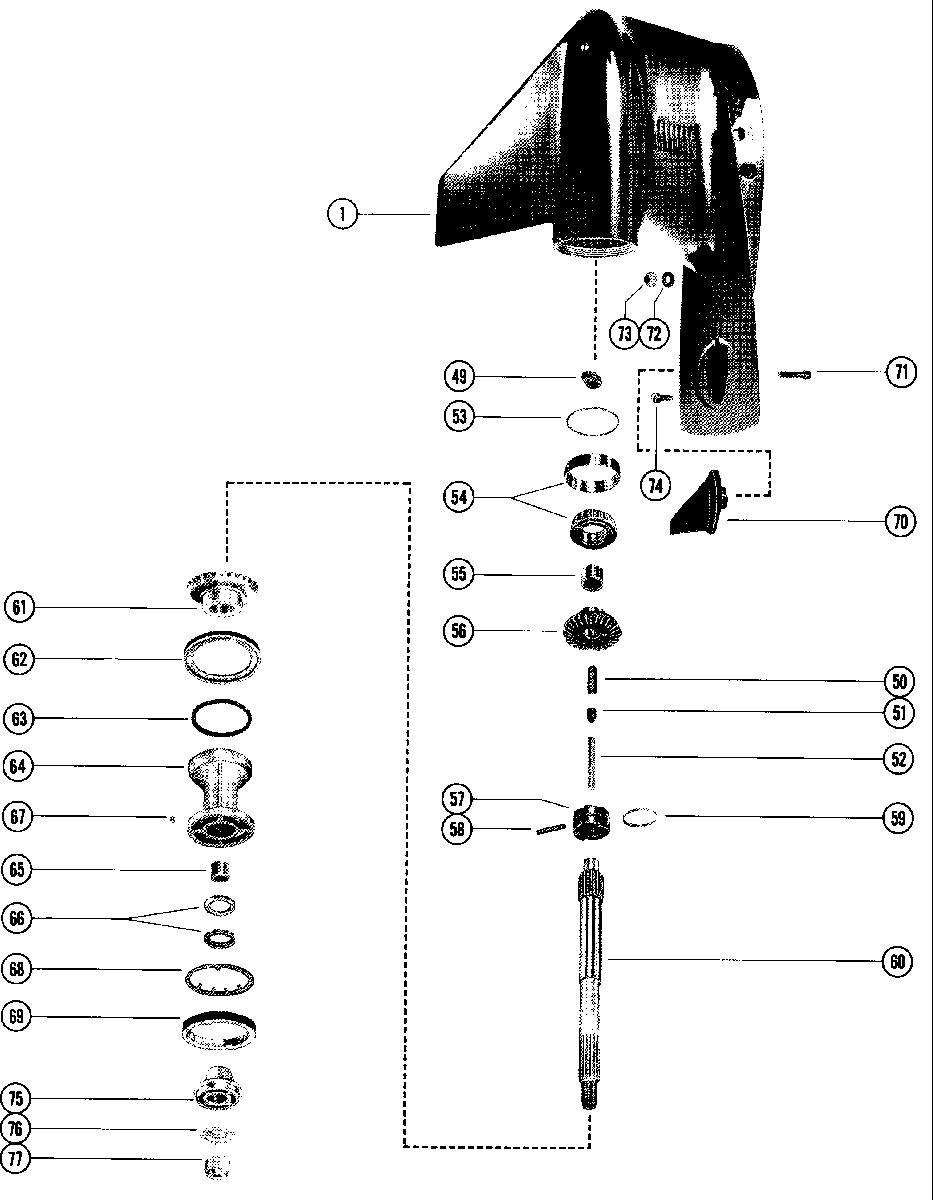

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 140 7132513 THRU 7150412

  • №
    Артикул
    Название
  • -
    1655-7333T24 GEAR HOUSING ASS'Y, COMP. (SEE NOTE BELOW)
    GEAR HOUSING ASS'Y, COMP. (SEE NOTE BELOW)
  • 1
    1655-7333T23 GEAR HOUSING ASS'Y
    GEAR HOUSING ASS'Y
  • 49
    760394 CAM, SHIFT
    CAM, SHIFT
  • 50
    30625 FOLLOWER, CAM
    FOLLOWER, CAM
  • 51
    30624 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 52
    24-30622 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 53
    15-30923A1 SHIM
    BEARING OUTER RACE TO HOUSING (.002-3-5-10)
    SHIM
    BEARING OUTER RACE TO HOUSING (.002-3-5-10)
  • 54
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 55
    31-30895T BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
  • 56
    43-68447T1 FORWARD GEAR
    FORWARD GEAR
  • 57
    52-822539T RATCHET, SLIDING GEAR
    RATCHET, SLIDING GEAR
  • 58
    17-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 59
    24-30893 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 60
    44-93003 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 61
    43-76250T REVERSE GEAR
    REVERSE GEAR
  • 62
    12-76358 WASHER
    THRUST - BEARING CARRIER TO GEAR HOUSING
    WASHER
    THRUST - BEARING CARRIER TO GEAR HOUSING
  • 63
    25-29976 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 64
    41529T2 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 65
    31-30956T BEARING ROLLER - BEARING CARRIER
    BEARING ROLLER - BEARING CARRIER
  • 66
    26-76868 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 67
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 68
    14-52700 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 69
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 70
    97-31640Q4 TRIM TAB, GEAR HOUSING
    TRIM TAB, GEAR HOUSING
  • 71
    10-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
  • 72
    12-45176 WASHER
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    WASHER
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 73
    11-34933 NUT
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    NUT
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 74
    10-65210 SCREW
    GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW
    GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
  • 75
    13191Q01 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 76
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 77
    11-52707Q1 NUT, PROPELLER
    NUT, PROPELLER
  • -
    27-85653A87 GASKET SET
    GASKET SET
