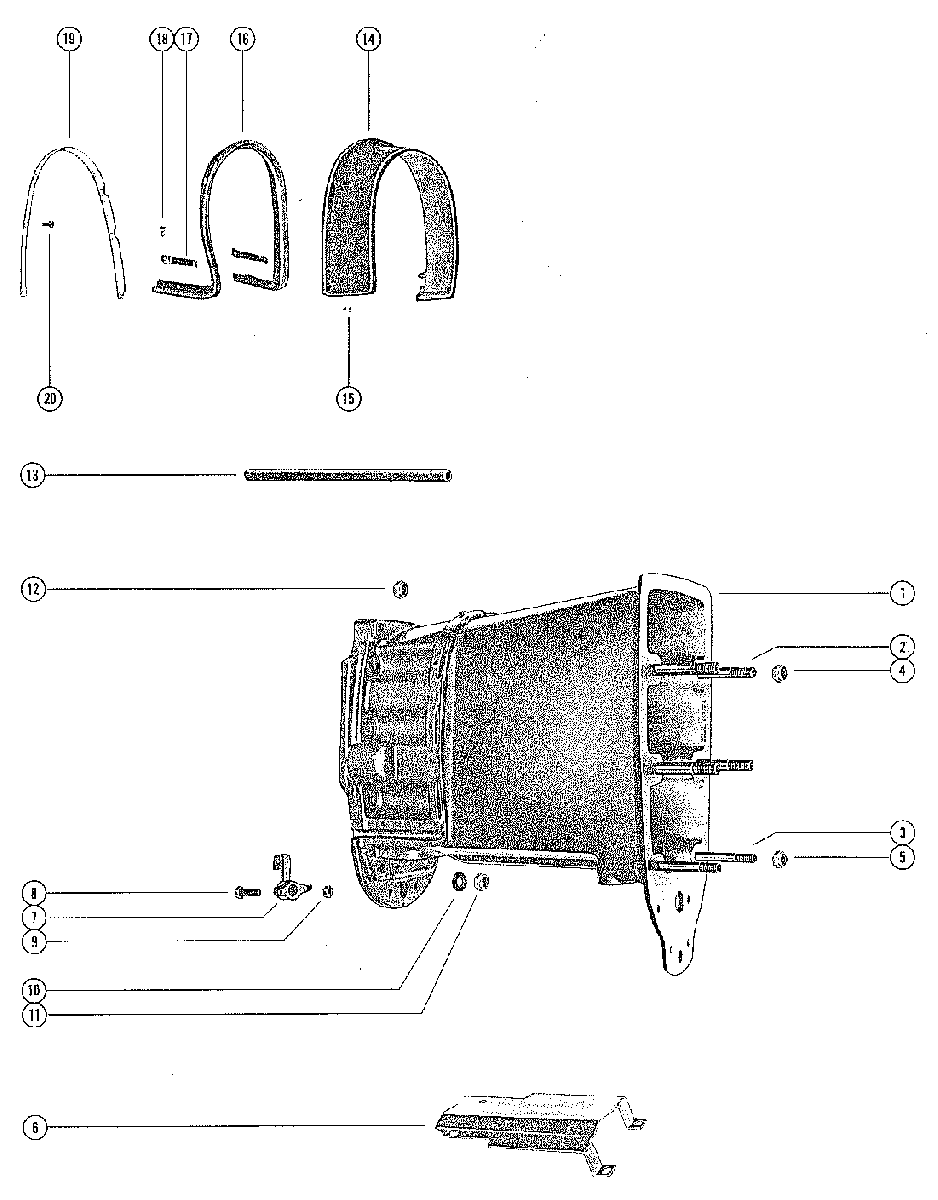

TOP COWL AND SUPPORT BRACKETS для Mercury - 1250BP 2641855 THRU 3253111
-
№АртикулНазвание
-
12114-3806 COWL, TOPCOWL, TOP
-
252733A9 RETAINER ASSEMBLY, TOP COWLRETAINER ASSEMBLY, TOP COWL
-
335496 PAD, BUMPER - TOP COWL RETAINERPAD, BUMPER - TOP COWL RETAINER
-
410-74824 SCREW, RETAINER TO TOP COWL (1 1/4')SCREW, RETAINER TO TOP COWL (1 1/4')
-
513-39107 LOCKWASHER, RETAINER TO TOP COWL SCREWLOCKWASHER, RETAINER TO TOP COWL SCREW
-
676370 SHIELD, TOP COWL - REARSHIELD, TOP COWL - REAR
-
710-37370 SCREW, SHIELD TO TOP COWL (5/8')SCREW, SHIELD TO TOP COWL (5/8')
-
813-37371 LOCKWASHER, SHIELD SCREWLOCKWASHER, SHIELD SCREW
-
947341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)ROPE, STARTER (FOR MANUAL STARTING ONLY)
-
1052739 HINGE, COWL LATCH - TOP COWLHINGE, COWL LATCH - TOP COWL
-
1194918F1 LEVER, COWL LATCH HINGELEVER, COWL LATCH HINGE
-
1217-58998 PIN, ROLL - COWL LATCH LEVER TO HINGEPIN, ROLL - COWL LATCH LEVER TO HINGE
-
1324-53019 SPRING, COWL LATCH HINGESPRING, COWL LATCH HINGE
-
1455455 HOOK, TOP COWL LATCH - REARHOOK, TOP COWL LATCH - REAR
-
1510-22956 SCREW, REAR HOOK TO TOP COWL (7/8")SCREW, REAR HOOK TO TOP COWL (7/8")
-
1613-26992 LOCKWASHER, REAR HOOK MOUNTING SCREWLOCKWASHER, REAR HOOK MOUNTING SCREW
-
1748825 FRAME, TOP COWL SUPPORTFRAME, TOP COWL SUPPORT
-
1890435 MOUNT, RUBBER-TOP COWL FRAMEMOUNT, RUBBER-TOP COWL FRAME
-
1846096 MOUNT, RUBBER - TOP COWL FRAMEMOUNT, RUBBER - TOP COWL FRAME
-
1911-8267089 NUT, RUBBER MOUNT TO TOP COWL FRAMENUT, RUBBER MOUNT TO TOP COWL FRAME
-
1911-82670911 NUT, RUBBER MOUNT TO TOP COWL FRAMENUT, RUBBER MOUNT TO TOP COWL FRAME
-
2054685 BRACKET, TOP COWL SUPPORT - REARBRACKET, TOP COWL SUPPORT - REAR
-
2131014 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
2213-26992 LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKETLOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
2312-69057 WASHER, RUBBER MOUNT TO REAR SUPPORT BRACKETWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
2411-20088 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKETNUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
2510-26065 SCREW, REAR BRACKET TO TOP COWL FRAME (1")SCREW, REAR BRACKET TO TOP COWL FRAME (1")
-
2611-29250 NUT, REAR BRACKET SCREWNUT, REAR BRACKET SCREW
-
2710-35386 SCREW,REAR BRACKET TO BOTTOM COWL (1")SCREW,REAR BRACKET TO BOTTOM COWL (1")
-
2813-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREWLOCKWASHER, REAR SUPPORT BRACKET SCREW
-
2977116A1 BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONTBRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT
-
3010-78841 SCREW, FRONT BRACKET TO BOTTOM COWL (1 1/2")SCREW, FRONT BRACKET TO BOTTOM COWL (1 1/2")
-
3111-29250 NUT, FRONT SUPPORT BRACKET SCREWNUT, FRONT SUPPORT BRACKET SCREW
-
3210-73657 SCREW, FRONT BRACKET TO TOP COWL SCREW FRAME (1 1/2")SCREW, FRONT BRACKET TO TOP COWL SCREW FRAME (1 1/2")
-
3313-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREWLOCKWASHER, FRONT SUPPORT BRACKET SCREW
-
3437640 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
3513-26993 LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKETLOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
-
3611-22053 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKETNUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
