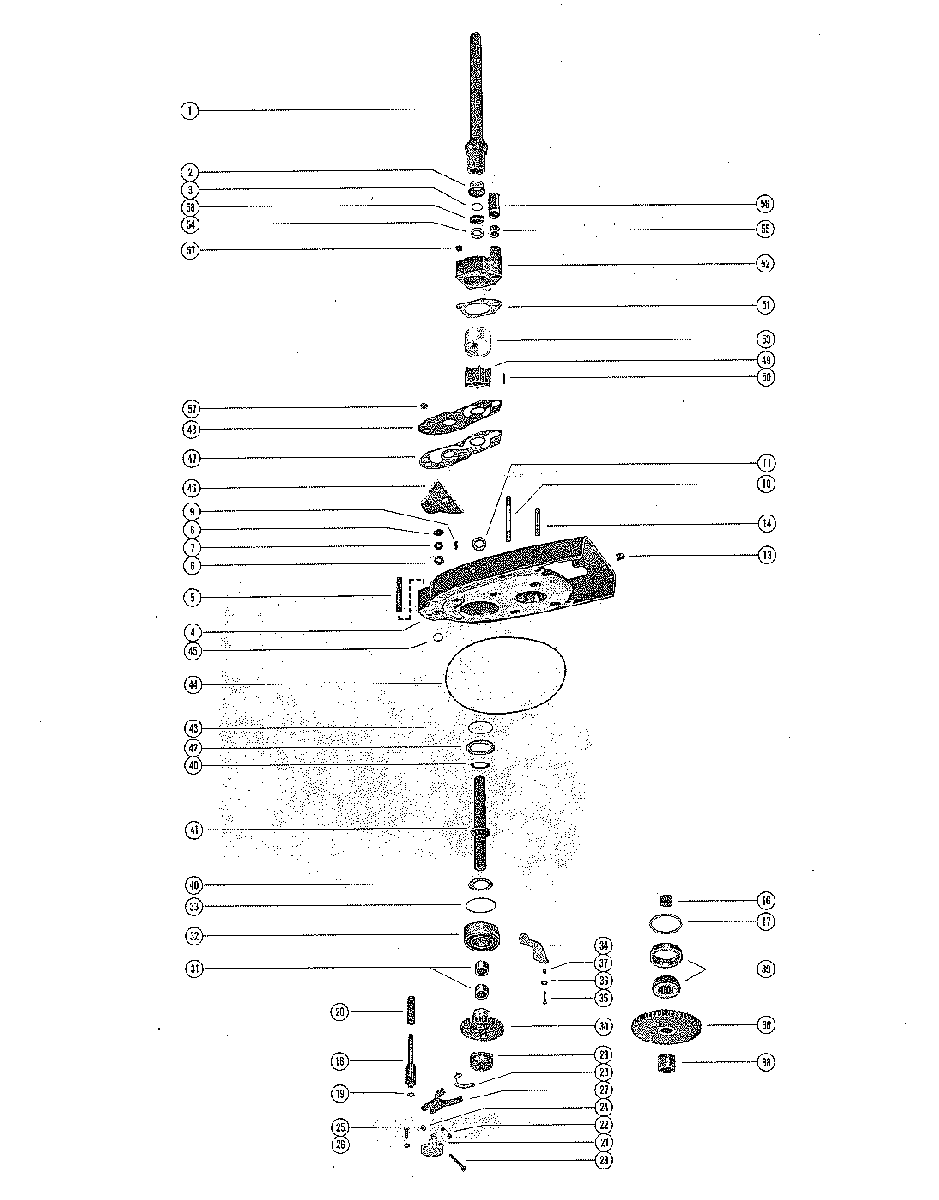

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 1250BP 2641855 THRU 3253111

  • №
    Артикул
    Название
  • 1
    45-56345 DRIVE SHAFT (SHORT SHAFT)
    DRIVE SHAFT (SHORT SHAFT)
  • 1
    45-56346 DRIVE SHAFT (LONG SHAFT)
    DRIVE SHAFT (LONG SHAFT)
  • 2
    54196A6 CARRIER, "O" RING-DRIVE SHAFT COUPLING
    CARRIER, "O" RING-DRIVE SHAFT COUPLING
  • 3
    25-35126 "O" RING, DRIVE SHAFT COUPLING
    "O" RING, DRIVE SHAFT COUPLING
  • -
    1638-4109A3 GEAR HOUSING ASSEMBLEY, COMPLETE
    RIGHT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
    GEAR HOUSING ASSEMBLEY, COMPLETE
    RIGHT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
  • -
    1638-4108A3 GEAR HOUSING ASSEMBLY, COMPLETE
    LEFT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
    GEAR HOUSING ASSEMBLY, COMPLETE
    LEFT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
  • -
    1638-4109A4 GEAR HOUSING ASSEMBLY, COMPLETE
    RIGHT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
    GEAR HOUSING ASSEMBLY, COMPLETE
    RIGHT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
  • -
    1638-4108A4 GEAR HOUSING ASSEMBLY, COMPLETE
    LEFT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
    GEAR HOUSING ASSEMBLY, COMPLETE
    LEFT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
  • 4
    53864A1 SPACER ASSEMBLY, COMPLETE
    SPACER ASSEMBLY, COMPLETE
  • 5
    16-25385 STUD, SPACER TO FACE PLATE (1 1/8")
    STUD, SPACER TO FACE PLATE (1 1/8")
  • 6
    26-24590 OIL SEAL, SHIFT SHAFT-SPACER (1 3/4" O.D.)
    OIL SEAL, SHIFT SHAFT-SPACER (1 3/4" O.D.)
  • 7
    26-892361 OIL SEAL, SHIFT SHAFT-SPACER (1 9/16" O.D.)
    OIL SEAL, SHIFT SHAFT-SPACER (1 9/16" O.D.)
  • 8
    12-31266 WASHER, RUBBER-SHIFT SHAFT
    WASHER, RUBBER-SHIFT SHAFT
  • 9
    17-8M0084627 PIN, DOWEL-SPACER TO WATER PUMP
    PIN, DOWEL-SPACER TO WATER PUMP
  • 10
    16-30717 STUD, SPACER TO WATER PUMP (2 7/16")
    STUD, SPACER TO WATER PUMP (2 7/16")
  • 11
    26-56788 OIL SEAL, SPACER-LOWER
    OIL SEAL, SPACER-LOWER
  • 13
    22-390721 PLUG, PIPE-SPACER
    PLUG, PIPE-SPACER
  • 14
    16-8M0034453 STUD, SPACER TO DRIVE SHAFT HOUSING (2 3/16")
    STUD, SPACER TO DRIVE SHAFT HOUSING (2 3/16")
  • 16
    23-56358 SPACER, DRIVEN GEAR
    SPACER, DRIVEN GEAR
  • 17
    15-26320A1 SHIM ASSEMBLY, DRIVEN GEAR
    SHIM ASSEMBLY, DRIVEN GEAR
  • 18
    53276 CAM, SHIFT
    CAM, SHIFT
  • 19
    12-55154A1 WASHER ASSEMBLY, SHIFT CAM
    WASHER ASSEMBLY, SHIFT CAM
  • 20
    24-53277 SPRING, SHIFT CAM
    SPRING, SHIFT CAM
  • 21
    48909 COVER, SHIFT PIVOT
    COVER, SHIFT PIVOT
  • 22
    24-55089 SPRING, SHIFT FORK
    SPRING, SHIFT FORK
  • 23
    10-55090 SCREW, SHIFT FORK
    SCREW, SHIFT FORK
  • 24
    11-826709109 NUT, SHIFT FORK SCREW
    NUT, SHIFT FORK SCREW
  • 25
    10-53099 SCREW, PIVOT COVER TO GEAR HOUSING
    SCREW, PIVOT COVER TO GEAR HOUSING
  • 26
    13-26992 LOCKWASHER, SHIFT PIVOT COVER SCREW
    LOCKWASHER, SHIFT PIVOT COVER SCREW
  • 27
    48908 SHIFT FORK, SLIDING CLUTCH
    SHIFT FORK, SLIDING CLUTCH
  • 28
    48922 COLLAR, SHIFT-RATCHET
    COLLAR, SHIFT-RATCHET
  • 29
    52-48906 RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 30
    43-48896A1 GEAR ASSEMBLY, DRIVE (1:1 GEAR RATIO)
    GEAR ASSEMBLY, DRIVE (1:1 GEAR RATIO)
  • 30
    43-48897A1 GEAR ASSEMBLY, DRIVE (1.25:1 GEAR RATIO)
    GEAR ASSEMBLY, DRIVE (1.25:1 GEAR RATIO)
  • 30
    43-48898A1 GEAR ASSEMBLY, DRIVE (1.5:1 GEAR RATIO)
    STANDARD ON MERC 1250BP
    GEAR ASSEMBLY, DRIVE (1.5:1 GEAR RATIO)
    STANDARD ON MERC 1250BP
  • 30
    43-48900A1 GEAR ASSEMBLY, DRIVE (1.75:1 GEAR RATIO)
    STANDARD ON MERC 1000BP
    GEAR ASSEMBLY, DRIVE (1.75:1 GEAR RATIO)
    STANDARD ON MERC 1000BP
  • 30
    43-48895A1 GEAR ASSEMBLY, DRIVE (2:1 GEAR RATIO)
    GEAR ASSEMBLY, DRIVE (2:1 GEAR RATIO)
  • 31
    31-21700 ROLLER BEARING, DRIVE GEAR
    ROLLER BEARING, DRIVE GEAR
  • 32
    30-48916 BALL BEARING, DRIVE GEAR
    BALL BEARING, DRIVE GEAR
  • 33
    15-34810A1 SHIM ASSEMBLY, DRIVE GEAR BEARING TO SPACER
    SHIM ASSEMBLY, DRIVE GEAR BEARING TO SPACER
  • 34
    48919 RETAINER, DRIVE SHAFT BEARING
    RETAINER, DRIVE SHAFT BEARING
  • 35
    10-28667 SCREW, RETAINER TO SPACER (1 1/8")
    SCREW, RETAINER TO SPACER (1 1/8")
  • 36
    13-21272 LOCKWASHER, RETAINER SCREW
    LOCKWASHER, RETAINER SCREW
  • 37
    52172 MAGNET, RETAINER SCREW
    MAGNET, RETAINER SCREW
  • 38
    23-48927 SPACER, DRIVEN GEAR
    SPACER, DRIVEN GEAR
  • 39
    31-48941A1 ROLLER BEARING ASSEMBLY, TAPERED-DRIVEN GEAR
    ROLLER BEARING ASSEMBLY, TAPERED-DRIVEN GEAR
  • 40
    31-48913 BEARING, THRUST-DRIVE SHAFT
    BEARING, THRUST-DRIVE SHAFT
  • 41
    45-48877 DRIVE SHAFT, INPUT
    DRIVE SHAFT, INPUT
  • 42
    12-48912 WASHER, THRUST-DRIVE SHAFT
    WASHER, THRUST-DRIVE SHAFT
  • 43
    15-53325A1 SHIM ASSEMBLY, DRIVE GEAR BEARING TO SPACER
    SHIM ASSEMBLY, DRIVE GEAR BEARING TO SPACER
  • 44
    25-48910 "O" RING, ADAPTOR FLANGE
    "O" RING, ADAPTOR FLANGE
  • 45
    25-21836 "O" RING, WATER INLET TUBE
    "O" RING, WATER INLET TUBE
  • 46
    53869 COVER, SPACER-FRONT
    COVER, SPACER-FRONT
  • 47
    27-48892 GASKET, SPACER TO FACE PLATE
    GASKET, SPACER TO FACE PLATE
  • 48
    48893 PLATE, FACE-SPACER TO WATER PUMP
    PLATE, FACE-SPACER TO WATER PUMP
  • 49
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 50
    17-8M0034466 PIN, IMPELLER DRIVING
    PIN, IMPELLER DRIVING
  • 51
    27-48923 GASKET, FACE PLATE TO WATER PUMP
    GASKET, FACE PLATE TO WATER PUMP
  • 52
    46-48881A1 WATER PUMP ASSEMBLY
    WATER PUMP ASSEMBLY
  • 53
    30915 INSERT, WATER PUMP
    INSERT, WATER PUMP
  • 54
    26-16977 OIL SEAL, WATER PUMP
    OIL SEAL, WATER PUMP
  • 55
    26-38970 SEAL, WATER PUMP INLET
    SEAL, WATER PUMP INLET
  • 56
    23-29804T SLEEVE, WATER TUBE GUIDE
    SLEEVE, WATER TUBE GUIDE
  • 57
    11-8267089 NUT, WATER PUMP AND FACE PLATE STUDS
    NUT, WATER PUMP AND FACE PLATE STUDS
  • 58
    25-30271 SLINGER, WATER PUMP-DRIVE SHAFT
    SLINGER, WATER PUMP-DRIVE SHAFT
