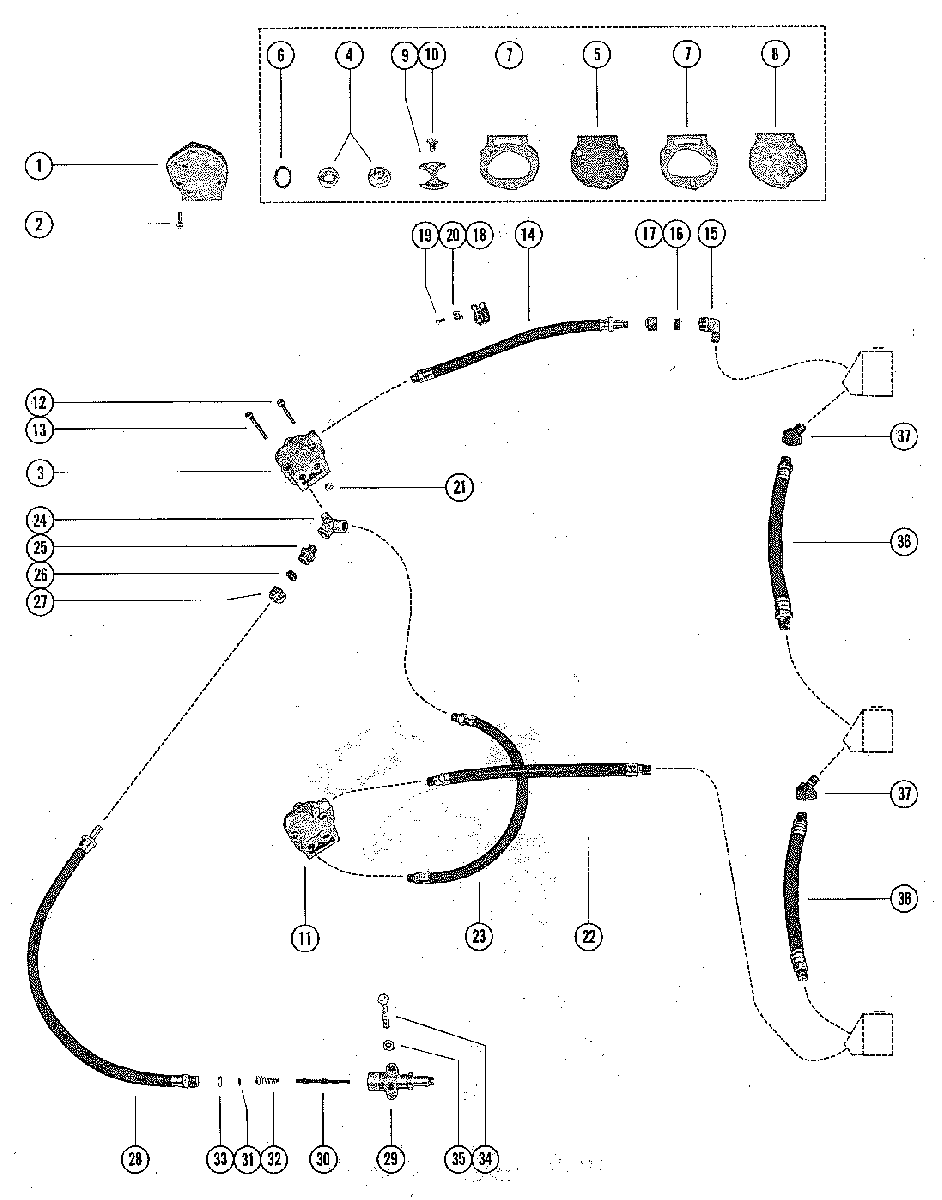

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 1250BP 2641855 THRU 3253111

  • №
    Артикул
    Название
  • 1
    26083 COVER, FUEL PUMP MOUNT
    COVER, FUEL PUMP MOUNT
  • 2
    10-28711 SCREW,COVER ATTACHING
    SCREW,COVER ATTACHING
  • 3
    53123A4 FUEL PUMP ASSEMBLY - UPPER
    FUEL PUMP ASSEMBLY - UPPER
  • 4
    21-30430A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 5
    23014A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 6
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 7
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 8
    90-8M0143356 GASKET, FUEL PUMP COVER
    GASKET, FUEL PUMP COVER
  • 9
    23004 RETAINER,CHECK VALVE
    RETAINER,CHECK VALVE
  • 10
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 11
    54817A3 FUEL PUMP ASSEMBLY - LOWER
    FUEL PUMP ASSEMBLY - LOWER
  • 4
    21-30430A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 5
    23014A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 6
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 7
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 8
    90-8M0143356 GASKET, FUEL PUMP COVER
    GASKET, FUEL PUMP COVER
  • 9
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 10
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 12
    10-73013 SCREW, FUEL PUMP MOUNTING (1 1/2")
    SCREW, FUEL PUMP MOUNTING (1 1/2")
  • 13
    10-30273 SCREW, FUEL PUMP MOUNTING (1 7/8")
    SCREW, FUEL PUMP MOUNTING (1 7/8")
  • 14
    32-32256A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 7/8")
    FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 7/8")
  • 15
    22-30174 ELBOW, UPPER CARBURETOR STRAINER COVER (90)
    ELBOW, UPPER CARBURETOR STRAINER COVER (90)
  • 16
    22-30175 SLEEVE, CARBURETOR STRAINER COVER ELBOW
    SLEEVE, CARBURETOR STRAINER COVER ELBOW
  • 17
    22-30177 NUT, UPPER CARBURETOR STRAINER COVER ELBOW
    NUT, UPPER CARBURETOR STRAINER COVER ELBOW
  • 18
    54-22627 CLIP, FUEL LINE TO CYLINDER BLOCK
    CLIP, FUEL LINE TO CYLINDER BLOCK
  • 19
    10-62568 SCREW, FUEL LINE CLIP TO CYLINDER BLOCK (3/8")
    SCREW, FUEL LINE CLIP TO CYLINDER BLOCK (3/8")
  • 20
    8M0084613 "D" WASHER, FUEL LINE CLIP SCREW
    "D" WASHER, FUEL LINE CLIP SCREW
  • 21
    22-328022 PLUG, PIPE - FUEL PUMP
    PLUG, PIPE - FUEL PUMP
  • 22
    32-54739A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR
    FUEL LINE ASSEMBLY, PUMP TO CARBURETOR
  • 23
    32-52943A1 FUEL LINE ASSEMBLY, PUMP TO PUMB (14")
    FUEL LINE ASSEMBLY, PUMP TO PUMB (14")
  • 24
    22-54818 "Y" FITTING, UPPER FUEL PUMP
    "Y" FITTING, UPPER FUEL PUMP
  • 25
    22-30468 CONNECTOR, "Y" FITTING
    CONNECTOR, "Y" FITTING
  • 26
    22-30175 SLEEVE, "Y" FITTING CONNECTOR
    SLEEVE, "Y" FITTING CONNECTOR
  • 27
    22-30177 NUT, "Y" FITTING CONNECTOR
    NUT, "Y" FITTING CONNECTOR
  • 28
    32-30176 FUEL LINE, ADAPTOR TO LOWER FUEL PUMP (18")
    FUEL LINE, ADAPTOR TO LOWER FUEL PUMP (18")
  • 29
    30186 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 30
    30185Q3 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 31
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 32
    24-30189 SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 33
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 34
    10-37561 SCREW, ADAPTOR TO BOTTOM COWL (2 1/2")
    SCREW, ADAPTOR TO BOTTOM COWL (2 1/2")
  • 35
    11-20184 NUT, ADAPTOR FASTENING SCREW
    NUT, ADAPTOR FASTENING SCREW
  • 36
    32-31584A1 FUEL LINE ASSEMBLY, CARBURETOR TO CARBURETOR
    FUEL LINE ASSEMBLY, CARBURETOR TO CARBURETOR
  • 37
    29086 ELBOW, FUEL LINE TO CARBURETOR (45)
    ELBOW, FUEL LINE TO CARBURETOR (45)
