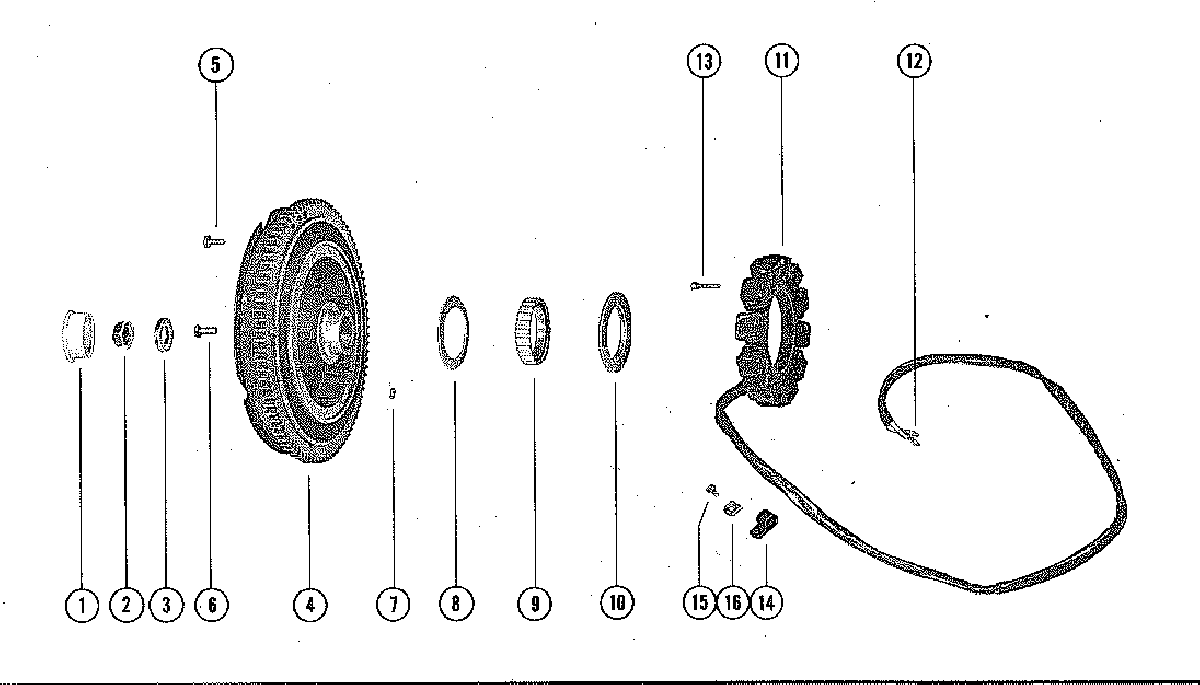

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 1250BP 2641855 THRU 3253111

  • №
    Артикул
    Название
  • 1
    19-45907 PLUG, FLYWHEEL PULLER THREADS
    PLUG, FLYWHEEL PULLER THREADS
  • 2
    11-52901 NUT, FLYWHEEL
    PART OF A-436-3760A2 AND A-435-3803A2 CRANKSHAFT ASS'Y
    NUT, FLYWHEEL
    PART OF A-436-3760A2 AND A-435-3803A2 CRANKSHAFT ASS'Y
  • 3
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 4
    225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
    FLYWHEEL ASSEMBLY, COMPLETE
  • 5
    10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
    SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
  • 6
    10-68997 SCREW, PLATE AND HUB TO FLEXIBLE PLATE (3/4")
    SCREW, PLATE AND HUB TO FLEXIBLE PLATE (3/4")
  • 7
    17-26618 PIN, DOWEL - PULLEY TO FLYWHEEL
    PIN, DOWEL - PULLEY TO FLYWHEEL
  • 8
    29788 FLANGE, FLYWHEEL PULLEY
    FLANGE, FLYWHEEL PULLEY
  • 9
    30306 PULLEY, FLYWHEEL
    PULLEY, FLYWHEEL
  • 10
    29787 HUB, FLYWHEEL PULLEY
    HUB, FLYWHEEL PULLEY
  • 11
    398-3633 STATOR ALTERNATOR
    STATOR ALTERNATOR
  • 12
    30050 TERMINAL, STATOR LEAD WIRE
    TERMINAL, STATOR LEAD WIRE
  • 13
    10-57021 SCREW, STATOR TO UPPER END CAN (7/8")
    SCREW, STATOR TO UPPER END CAN (7/8")
  • 14
    54-22875 CLIP, STATOR LEAD FASTENING (7/16")
    CLIP, STATOR LEAD FASTENING (7/16")
  • 14
    54-26550 CLIP, STATOR/WIRING HARNESS LEADS FASTENING (5/16")
    CLIP, STATOR/WIRING HARNESS LEADS FASTENING (5/16")
  • 15
    10-62568 SCREW, STATOR LEAD CLIP FASTENING
    SCREW, STATOR LEAD CLIP FASTENING
  • 16
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
