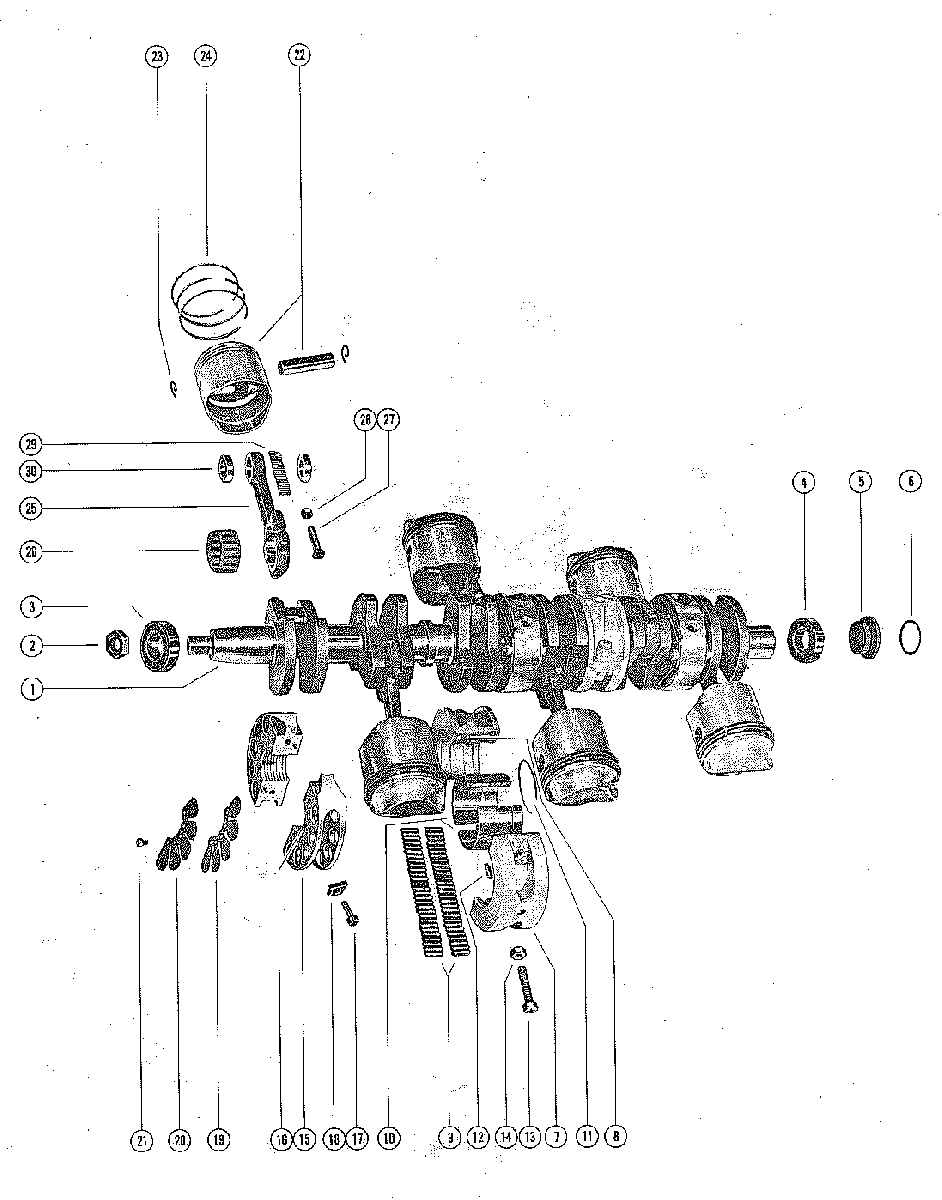

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 1250BP 2641855 THRU 3253111
-
№АртикулНазвание
-
1436-3760A2 CRANKSHAFT ASSEMBLY (MERC 1000BP) - NOT AS SHOWNCRANKSHAFT ASSEMBLY (MERC 1000BP) - NOT AS SHOWN
-
1436-3803A2 CRANKSHAFT ASSEMBLY (MERC 1250BP) - NOT AS SHOWNCRANKSHAFT ASSEMBLY (MERC 1250BP) - NOT AS SHOWN
-
211-52901 NUT, FLYWHEEL TO CRANKSHAFTNUT, FLYWHEEL TO CRANKSHAFT
-
330-62567T BEARING, BALL - UPPERBEARING, BALL - UPPER
-
430-63742T BEARING, BALL - LOWERBEARING, BALL - LOWER
-
554196A6 CARRIER, "O" RING - CRANKSHAFTCARRIER, "O" RING - CRANKSHAFT
-
625-35126 "O" RING, CARRIER"O" RING, CARRIER
-
7535-3190A2 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
817-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
929-714221 BEARING, NEEDLE - OUTER RACEBEARING, NEEDLE - OUTER RACE
-
1026113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1153-26933 RING, SNAP - OUTER RACERING, SNAP - OUTER RACE
-
1217-47246 DOWEL PIN, STEPPEDDOWEL PIN, STEPPED
-
1310-22968 SCREW, CENTER MAIN BEARING CLAMPING (1 1/4")SCREW, CENTER MAIN BEARING CLAMPING (1 1/4")
-
1411-20184 NUT, BEARING CLAMPING SCREWNUT, BEARING CLAMPING SCREW
-
15540-7238A2 MAIN BEARING ASSEMBLY, VALVE TYPEMAIN BEARING ASSEMBLY, VALVE TYPE
-
1617-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1710-45775 SCREW, MAIN BEARING CLAMPING (9/16")SCREW, MAIN BEARING CLAMPING (9/16")
-
1811-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1934-56007A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
2034-48081 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
2110-20597 SCREW, REED STOP MOUNTING (3/8")SCREW, REED STOP MOUNTING (3/8")
-
22745-3759A2 PISTON AND PIN ASSEMBLY (MERC 1000BP)PISTON AND PIN ASSEMBLY (MERC 1000BP)
-
22774-9137A12 PISTON AND PISTON PIN ASSEMBLY (MERC 1250BP)PISTON AND PISTON PIN ASSEMBLY (MERC 1250BP)
-
2353-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2439-48834A12 RING, PISTON (1/16")RING, PISTON (1/16")
-
25624-8101A3 CONNECTING ROD AND CAP ASSEMBLY (MERC 1000BP)CONNECTING ROD AND CAP ASSEMBLY (MERC 1000BP)
-
25624-8101A3 CONNECTING ROD AND CAP ASSEMBLY (MERC 1250BP)CONNECTING ROD AND CAP ASSEMBLY (MERC 1250BP)
-
2631-62596A1 BEARING ASSEMBLY, CRANKPIN (MERC 1000BP)BEARING ASSEMBLY, CRANKPIN (MERC 1000BP)
-
2631-62596A1 BEARING ASSEMBLY, CRANKPIN (MERC 1250BP)BEARING ASSEMBLY, CRANKPIN (MERC 1250BP)
-
2710-54803 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
2811-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2929-47270 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
3012-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
--745-3851A1 PISTON AND PISTON PIN ASS'Y (.015 OVERSIZE) - MERC 1000BPPISTON AND PISTON PIN ASS'Y (.015 OVERSIZE) - MERC 1000BP
-
--774-9137A13 PISTON AND PISTON PIN ASS'Y (.015 OVERSIZE) - MERC 1250BPPISTON AND PISTON PIN ASS'Y (.015 OVERSIZE) - MERC 1250BP
-
--39-49839A12 RING, PISTON (.015 OVERSIZE) - 1/16" THICKRING, PISTON (.015 OVERSIZE) - 1/16" THICK
