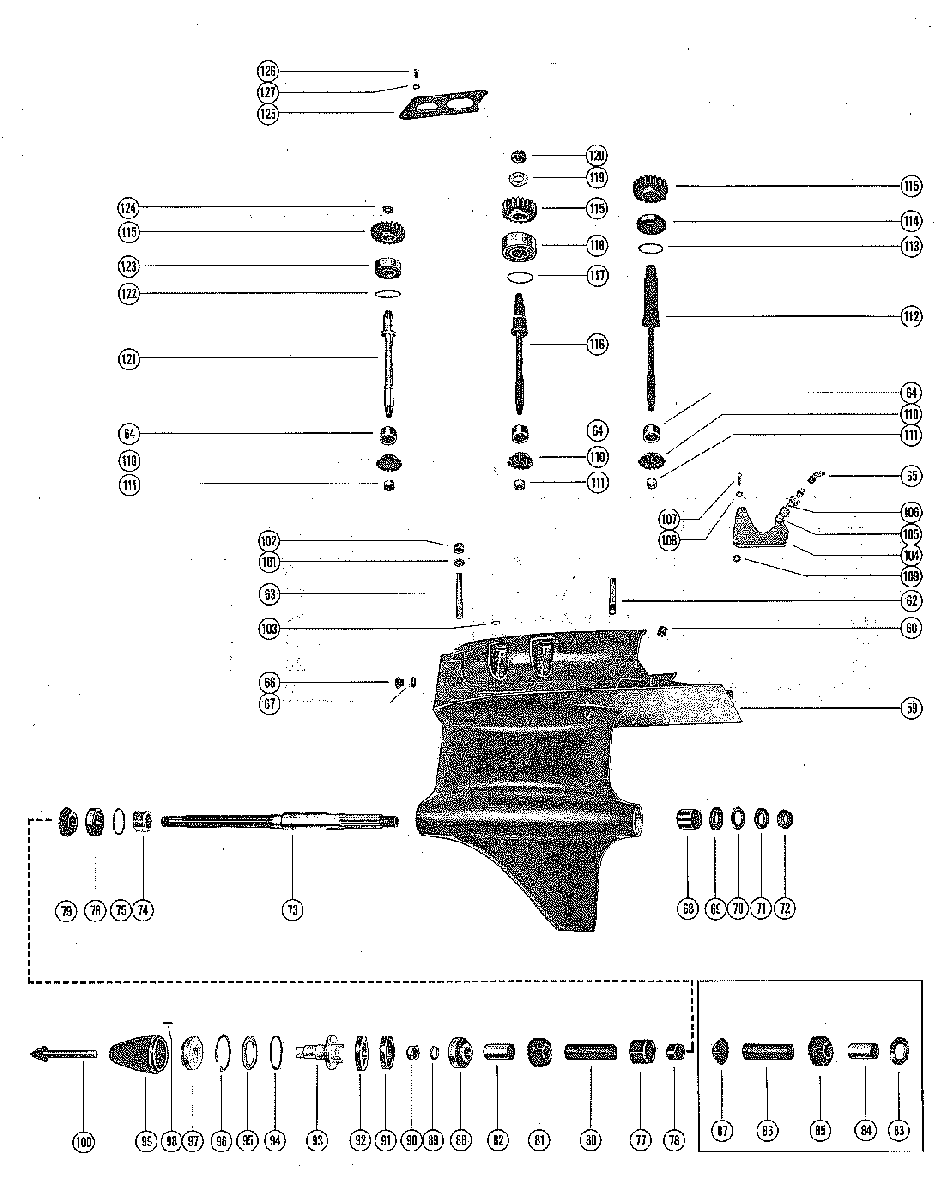

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 1250BP 2641855 THRU 3253111

  • №
    Артикул
    Название
  • --
    1638-4109A3 GEAR HOUSING ASSEMBLY, COMPLETE
    RIGHT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
    GEAR HOUSING ASSEMBLY, COMPLETE
    RIGHT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
  • --
    1638-4108A3 GEAR HOUSING ASSEMBLY, COMPLETE
    LEFT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
    GEAR HOUSING ASSEMBLY, COMPLETE
    LEFT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
  • --
    1638-4109A4 GEAR HOUSING ASSEMBLY, COMPLETE
    RIGHT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
    GEAR HOUSING ASSEMBLY, COMPLETE
    RIGHT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
  • --
    1638-4108A4 GEAR HOUSING ASSEMBLY, COMPLETE
    LEFT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
    GEAR HOUSING ASSEMBLY, COMPLETE
    LEFT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6
  • 59
    1638-4109A1 GEAR HOUSING ASSEMBLY (MERC 1000BP)
    GEAR HOUSING ASSEMBLY (MERC 1000BP)
  • 59
    1638-4108A1 GEAR HOUSING ASSEMBLY (MERC 1250BP)
    GEAR HOUSING ASSEMBLY (MERC 1250BP)
  • 60
    22-73379 PLUG, PIPE (1/4-18 THREAD)
    PLUG, PIPE (1/4-18 THREAD)
  • 62
    16-32129 STUD, GEAR HOUSING TO SPACER (2 3/8")
    STUD, GEAR HOUSING TO SPACER (2 3/8")
  • 63
    16-49082 STUD,GEAR HOUSING TO SPACER (3 3/4")
    STUD,GEAR HOUSING TO SPACER (3 3/4")
  • 64
    31-48937 ROLLER BEARING, DRIVE SHAFT
    ROLLER BEARING, DRIVE SHAFT
  • 65
    22-49523 ELBOW, OIL TUBE (45 )
    ELBOW, OIL TUBE (45 )
  • 66
    10-79953Q04 SCREW, VENT AND FILLING
    SCREW, VENT AND FILLING
  • 67
    12-191833 WASHER, SEALING-VENT AND FILLING SCREW
    WASHER, SEALING-VENT AND FILLING SCREW
  • 68
    31-30956T ROLLER BEARING, PROPELLER SHAFT
    ROLLER BEARING, PROPELLER SHAFT
  • 69
    26-55285 OIL SEAL, PROPELLER SHAFT
    OIL SEAL, PROPELLER SHAFT
  • 70
    12-39701 WASHER, SPLINED-PROPELLER NUT
    WASHER, SPLINED-PROPELLER NUT
  • 71
    12-39698 WASHER, PLAIN-PROPELLER NUT
    WASHER, PLAIN-PROPELLER NUT
  • 72
    11-859126 NUT, PROPELLER
    NUT, PROPELLER
  • 73
    44-48882 PROPELLER SHAFT
    PROPELLER SHAFT
  • 74
    23-56802 SPACER, PROPELLER SHAFT
    SPACER, PROPELLER SHAFT
  • 75
    15-20929A1 SHIM ASSEMBLY, PROPELLER SHAFT
    SHIM ASSEMBLY, PROPELLER SHAFT
  • 76
    31-38146A1 ROLLER BEARING ASSEMBLY, TAPERED-REAR
    ROLLER BEARING ASSEMBLY, TAPERED-REAR
  • 77
    57206A1 ADATPOR ASSEMBLY, PROPELLER SHAFT
    ADATPOR ASSEMBLY, PROPELLER SHAFT
  • 78
    31-54043 ROLLER BEARING ADAPTOR
    ROLLER BEARING ADAPTOR
  • 78
    31-54043 ROLLER BEARING, ADAPTOR
    ROLLER BEARING, ADAPTOR
  • 79
    43-48885 GEAR, PROPELLER SHAFT-REAR
    RIGHT HAND ROTATION
    GEAR, PROPELLER SHAFT-REAR
    RIGHT HAND ROTATION
  • 80
    23-57205 SPACER, PROPELLER SHAFT-LONG
    RIGHT HAND ROTATION
    SPACER, PROPELLER SHAFT-LONG
    RIGHT HAND ROTATION
  • 81
    43-48890 GEAR, DOUBLE BEVEL-PROPELLER SHAFT
    RIGHT HAND ROTATION
    GEAR, DOUBLE BEVEL-PROPELLER SHAFT
    RIGHT HAND ROTATION
  • 82
    23-48934 SPACER, PROPELLER SHAFT-SHORT
    RIGHT HAND ROTATION
    SPACER, PROPELLER SHAFT-SHORT
    RIGHT HAND ROTATION
  • 83
    12-49808 WASHER, PROPELLER SHAFT
    LEFT HAND ROTATION
    WASHER, PROPELLER SHAFT
    LEFT HAND ROTATION
  • 84
    23-49809 SPACER, PROPELLER SHAFT-SHORT
    LEFT HAND ROTATION
    SPACER, PROPELLER SHAFT-SHORT
    LEFT HAND ROTATION
  • 85
    43-48890 GEAR, DOUBLE BEVEL-PROPELLER SHAFT
    LEFT HAND ROTATION
    GEAR, DOUBLE BEVEL-PROPELLER SHAFT
    LEFT HAND ROTATION
  • 86
    23-57205 SPACER, PROPELLER SHAFT-LONG
    LEFT HAND ROTATION
    SPACER, PROPELLER SHAFT-LONG
    LEFT HAND ROTATION
  • 87
    43-48949 GEAR, PROPELLER SHAFT
    LEFT HAND ROTATION
    GEAR, PROPELLER SHAFT
    LEFT HAND ROTATION
  • 88
    31-38135A1 ROLLER BEARING ASSEMBLY, TAPERED-PROPELLER SHAFT
    ROLLER BEARING ASSEMBLY, TAPERED-PROPELLER SHAFT
  • 89
    12-48933 WASHER, PROPELLER SHAFT
    WASHER, PROPELLER SHAFT
  • 90
    11-8M2014641 NUT, PROPELLER SHAFT
    NUT, PROPELLER SHAFT
  • 91
    23-48932 SPACER, BEARING RETAINER TO GEAR HOUSING
    SPACER, BEARING RETAINER TO GEAR HOUSING
  • 92
    11-48931 NUT, BEARING RETAINER
    NUT, BEARING RETAINER
  • 93
    48942 ANCHOR STUD, BEARING RETAINER
    ANCHOR STUD, BEARING RETAINER
  • 94
    25-30224 "O" RING, ANCHOR STUD
    "O" RING, ANCHOR STUD
  • 95
    12-48930 WASHER, ANCHOR STUD
    WASHER, ANCHOR STUD
  • 96
    53-48928 RING, SNAP-ANCHOR STUD TO GEAR HOUSING
    RING, SNAP-ANCHOR STUD TO GEAR HOUSING
  • 97
    48929 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 98
    17-30282 PIN, NOSE CONE LOCATING
    PIN, NOSE CONE LOCATING
  • 99
    48904 CONE, NOSE-GEAR HOUSING
    CONE, NOSE-GEAR HOUSING
  • 100
    10-39703 SCREW, NOSE CONE TO GEAR HOUSING
    SCREW, NOSE CONE TO GEAR HOUSING
  • 101
    12-45176 WASHER, GEAR HOUSING STUDS
    WASHER, GEAR HOUSING STUDS
  • 102
    11-34933 NUT, GEAR HOUSING STUDS
    NUT, GEAR HOUSING STUDS
  • 103
    25-45719 "O" RING, GEAR HOUSINF STUD
    "O" RING, GEAR HOUSINF STUD
  • 104
    49526A1 PLATE ASSEMBLY, COVER
    PLATE ASSEMBLY, COVER
  • 105
    22-49521 ELBOW, PLATE TO OIL TUBE (90 )
    ELBOW, PLATE TO OIL TUBE (90 )
  • 106
    32-54989 TUBE, OIL-GEAR HOUSING TO COVER PLATE
    TUBE, OIL-GEAR HOUSING TO COVER PLATE
  • 107
    10-49527 SCREW, COVER PLATE TO GEAR HOUSEING (1")
    SCREW, COVER PLATE TO GEAR HOUSEING (1")
  • 108
    13-21272 LOCKWASHER, COVER PLATE SCREW
    LOCKWASHER, COVER PLATE SCREW
  • 109
    12-39143 WASHER, COVER PLATE SCREW
    WASHER, COVER PLATE SCREW
  • 110
    43-48886 GEAR, PINION-DRIVE SHAFT(LOWER)
    GEAR, PINION-DRIVE SHAFT(LOWER)
  • 111
    11-49253 NUT, LOCK-PINION GEAR TO DRIVE SHAFT
    NUT, LOCK-PINION GEAR TO DRIVE SHAFT
  • 112
    45-48880 DRIVE SHAFT, REAR
    DRIVE SHAFT, REAR
  • 113
    15-8M0063268 SHIM ASSEMBLY, REAR DRIVE SHAFT
    SHIM ASSEMBLY, REAR DRIVE SHAFT
  • 114
    31-48939A1 ROLLER BEARING ASSEMBLY, TAPERED-REAR DRIVE SHAFT
    ROLLER BEARING ASSEMBLY, TAPERED-REAR DRIVE SHAFT
  • 115
    43-48887A1 GEAR ASSMBLY, DRIVE SHAFTS
    GEAR ASSMBLY, DRIVE SHAFTS
  • 116
    45-48879 DRIVE SHAFT, CENTER
    DRIVE SHAFT, CENTER
  • 117
    15-24542A1 SHIM ASSEMBLY, CENTER DRIVE SHAFT
    SHIM ASSEMBLY, CENTER DRIVE SHAFT
  • 118
    30-53280 BALL BEARING, CENTER DRIVE SHAFT
    BALL BEARING, CENTER DRIVE SHAFT
  • 119
    12-35981 WASHER, CENTER DRIVE SHAFT
    WASHER, CENTER DRIVE SHAFT
  • 120
    11-22339 NUT, GEAR TO CENTER DRIVE SHAFT
    NUT, GEAR TO CENTER DRIVE SHAFT
  • 121
    45-48878 DRIVE SHAFT, FRONT
    DRIVE SHAFT, FRONT
  • 122
    15-20929A1 SHIM ASSEMBLY, FRONT DRIVE SHAFT
    SHIM ASSEMBLY, FRONT DRIVE SHAFT
  • 123
    30-53279 BALL BEARING, FRONT DRIVE SHAFT
    BALL BEARING, FRONT DRIVE SHAFT
  • 124
    11-30932 NUT, GEAR TO FRONT DRIVE SHAFT
    NUT, GEAR TO FRONT DRIVE SHAFT
  • 125
    48891 RETAINER, BEARING
    RETAINER, BEARING
  • 126
    10-53099 SCREW, BEARING RETAINER TO GEAR HOUSING (3/4")
    SCREW, BEARING RETAINER TO GEAR HOUSING (3/4")
  • 127
    13-26992 LOCKWASHER, BEARING RETAINER SCREW
    LOCKWASHER, BEARING RETAINER SCREW
