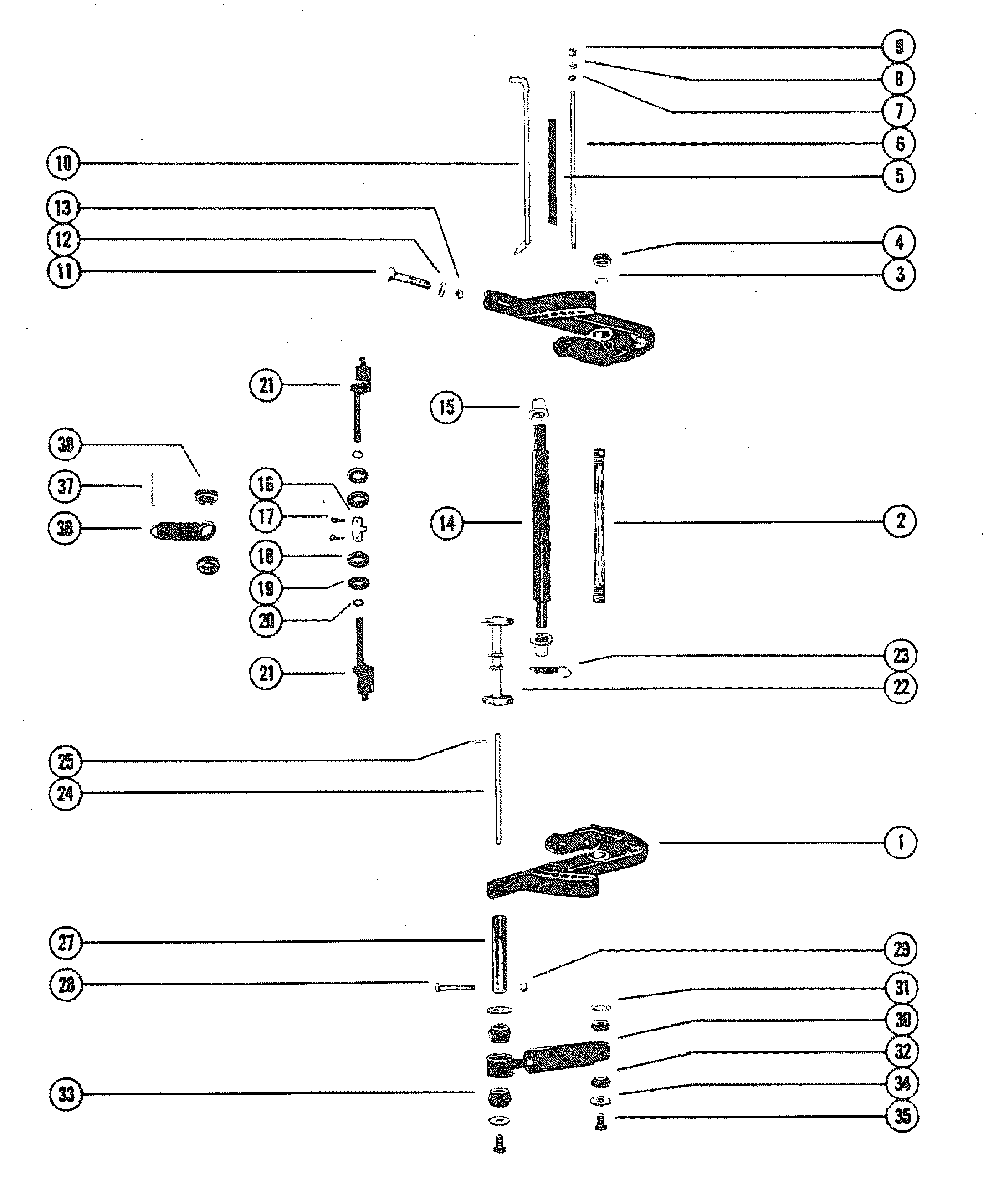

TRANSOM BRACKET для Mercury - 115 (6 CYL.) 8067340 AND UP

  • №
    Артикул
    Название
  • 1
    1496-8822A1 TRANSOM BRACKET
    TRANSOM BRACKET
  • 2
    89099 TILT TUBE
    TILT TUBE
  • 3
    13-89297 WASHER, WAVE-TILT TUBE
    WASHER, WAVE-TILT TUBE
  • 4
    11-858869 NUT, TILT TUBE
    NUT, TILT TUBE
  • 5
    23-87642 SPACER, TRANSOM BRACKET STUD
    SPACER, TRANSOM BRACKET STUD
  • 6
    16-87643 STUD
    TRANSOM BRACKET-NOT USED WITH POWER TRIM
    STUD
    TRANSOM BRACKET-NOT USED WITH POWER TRIM
  • 7
    12-36001 WASHER, TRANSOM BRACKET STUD
    WASHER, TRANSOM BRACKET STUD
  • 8
    13-26993 LOCKWASHER, TRANSOM BRACKET STUD
    LOCKWASHER, TRANSOM BRACKET STUD
  • 9
    11-28770 NUT, TRANSOM BRACKET STUD
    NUT, TRANSOM BRACKET STUD
  • 10
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    NOT USED WITH POWER TRIM
    TILT LOCK PIN ASSEMBLY
    NOT USED WITH POWER TRIM
  • 11
    10-89673 BOLT, TRANSOM BRACKET (5")
    BOLT, TRANSOM BRACKET (5")
  • 12
    12-46765 WASHER, TRANSOM BRACKET BOLT
    WASHER, TRANSOM BRACKET BOLT
  • 13
    11-82671112 NUT, TRANSOM BRACKET BOLT
    NUT, TRANSOM BRACKET BOLT
  • 11
    10-677552 BOLT, TRANSOM BRACKET (6")
    BOLT, TRANSOM BRACKET (6")
  • 12
    12-28421 WASHER, TRANSOM BRACKET BOLT
    WASHER, TRANSOM BRACKET BOLT
  • 13
    11-91962 NUT, TRANSOM BRACKET BOLT
    NUT, TRANSOM BRACKET BOLT
  • 14
    89116 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
  • 15
    23-89117 BUSHING, UPPER SHOCK MOUNTING PIN
    BUSHING, UPPER SHOCK MOUNTING PIN
  • 16
    79659 COUPLING, TILT LOCK
    COUPLING, TILT LOCK
  • 17
    18-47959 COTTER PIN, TILT LOCK
    COTTER PIN, TILT LOCK
  • 18
    26-22734 OIL SEAL, SWIVEL BRACKET (TILT LOCK)
    OIL SEAL, SWIVEL BRACKET (TILT LOCK)
  • 19
    12-76388 WASHER, TILT LOCK
    WASHER, TILT LOCK
  • 20
    25-627021 "O" RING, TILT LOCK
    "O" RING, TILT LOCK
  • 21
    89105 TILT LOCK
    TILT LOCK
  • 22
    87431 REVERSE LOCK ASS'Y
    NOT USED WITH POWER TRIM
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
    REVERSE LOCK ASS'Y
    NOT USED WITH POWER TRIM
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
  • 23
    24-78203A2 SPRING ASS'Y --NOT USED WITH POWER TRIM
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
    SPRING ASS'Y --NOT USED WITH POWER TRIM
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
  • 22
    14664A3 REVERSE LOCK ASS'Y
    NOT USED WITH POWER TRIM
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
    REVERSE LOCK ASS'Y
    NOT USED WITH POWER TRIM
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
  • 23
    24-78203A2 SPRING ASSEMBLY --NOT USED WITH POWER TRIM
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
    SPRING ASSEMBLY --NOT USED WITH POWER TRIM
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
  • 24
    56349 SHAFT, REVERSE LOCK PIVOT
    NOT USED WITH POWER TRIM
    SHAFT, REVERSE LOCK PIVOT
    NOT USED WITH POWER TRIM
  • 25
    18-45882 COTTER PIN
    LOCK TO SHAFT -NOT USED WITH POWER TRIM
    COTTER PIN
    LOCK TO SHAFT -NOT USED WITH POWER TRIM
  • 27
    55-28414 PIN, LOWER SHOCK MOUNTING
    PIN, LOWER SHOCK MOUNTING
  • 28
    10-21937 SCREW, LOWER SHOCK PIN (2")
    SCREW, LOWER SHOCK PIN (2")
  • 29
    11-20184 NUT, LOWER SHOCK PIN SCREW
    NUT, LOWER SHOCK PIN SCREW
  • 30
    55-58780A7 SHOCK ABSORBER-NOT USED WITH POWER TRIM
    SHOCK ABSORBER-NOT USED WITH POWER TRIM
  • 31
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    -NOT USED WITH POWER TRIM
    WASHER, UPPER BUSHING RETAINER (INNER)
    -NOT USED WITH POWER TRIM
  • 32
    23-32171 BUSHING, RUBBER-SHOCK ABSORBER (UPPER)
    -NOT USED WITH POWER TRIM
    BUSHING, RUBBER-SHOCK ABSORBER (UPPER)
    -NOT USED WITH POWER TRIM
  • 33
    23-28198 BUSHING, RUBBER-SHOCK ABSORBER(LOWER)
    -NOT USED WITH POWER TRIM
    BUSHING, RUBBER-SHOCK ABSORBER(LOWER)
    -NOT USED WITH POWER TRIM
  • 34
    12-69374 WASHER, UPPER/LOWER SHCOK PIN (LOWER)
    -NOT USED WITH POWER TRIM
    WASHER, UPPER/LOWER SHCOK PIN (LOWER)
    -NOT USED WITH POWER TRIM
  • 35
    10-69375 SCREW, UPPER AND LOWER SHOCK PIN
    -NOT USED WITH POWER TRIM
    SCREW, UPPER AND LOWER SHOCK PIN
    -NOT USED WITH POWER TRIM
  • 36
    24-94891 SPRING, COIL-SWIVEL BRACKET
    -NOT USED WITH POWER TRIM
    SPRING, COIL-SWIVEL BRACKET
    -NOT USED WITH POWER TRIM
  • 37
    17-38311 PIN, COIL SPRING MOUNTING
    -NOT USED WITH POWER TRIM
    PIN, COIL SPRING MOUNTING
    -NOT USED WITH POWER TRIM
  • 38
    23-28688 SPACER, RUBBER-COIL SPRING
    -NOT USED WITH POWER TRIM
    SPACER, RUBBER-COIL SPRING
    -NOT USED WITH POWER TRIM
  • -
    27-85653A87 GASKET SET
    GASKET SET
