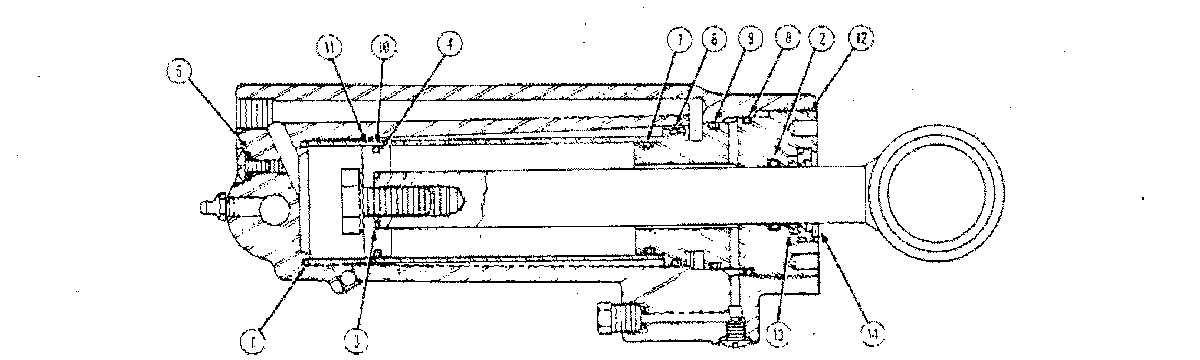

POWER TRIM CYLINDER REPAIR KITS (USE WITH 76509A3) для Mercury - 115 (6 CYL.) 8067340 AND UP
-
№АртикулНазвание
-
-64507A1 REPAIR KIT (SEE NOTE BELOW)REPAIR KIT (SEE NOTE BELOW)
-
1N.S.S. "O"RING (1-1 2" X 1-5 8" X 1 16")"O"RING (1-1 2" X 1-5 8" X 1 16")
-
2N.S.S. "O"RING (3 4" X 15 16" X 1 8")"O"RING (3 4" X 15 16" X 1 8")
-
3N.S.S. "O"RING (5 8" X 3 4" X 1 16")"O"RING (5 8" X 3 4" X 1 16")
-
4N.S.S. "O"RING (1-1 4" X 1-7 16" X 1 16")"O"RING (1-1 4" X 1-7 16" X 1 16")
-
5N.S.S. "O"RING (7 32" X 11 32" X 1 16")"O"RING (7 32" X 11 32" X 1 16")
-
6N.S.S. "O"RING (1-5 8" X 1-13 16" X 1 8")"O"RING (1-5 8" X 1-13 16" X 1 8")
-
7N.S.S. "O"RING (1-5 16" X 1-1 2" X 1 8")"O"RING (1-5 16" X 1-1 2" X 1 8")
-
8N.S.S. "O"RING (1-7 8" X 2" X 1 8")"O"RING (1-7 8" X 2" X 1 8")
-
9N.S.S. "O"RING (1-3 4" X 1-15 16" X 1 8")"O"RING (1-3 4" X 1-15 16" X 1 8")
-
10N.S.S. SEAL, SLIPPER - PISTONSEAL, SLIPPER - PISTON
-
11N.S.S. PISTON, ROD - HEAVY DUTYPISTON, ROD - HEAVY DUTY
-
1264505A1 RETAINER ASSEMBLY, PISTONRETAINER ASSEMBLY, PISTON
-
13N.S.S. ROD, SCRAPERROD, SCRAPER
-
14N.S.S. RETAINER, SCRAPERRETAINER, SCRAPER
