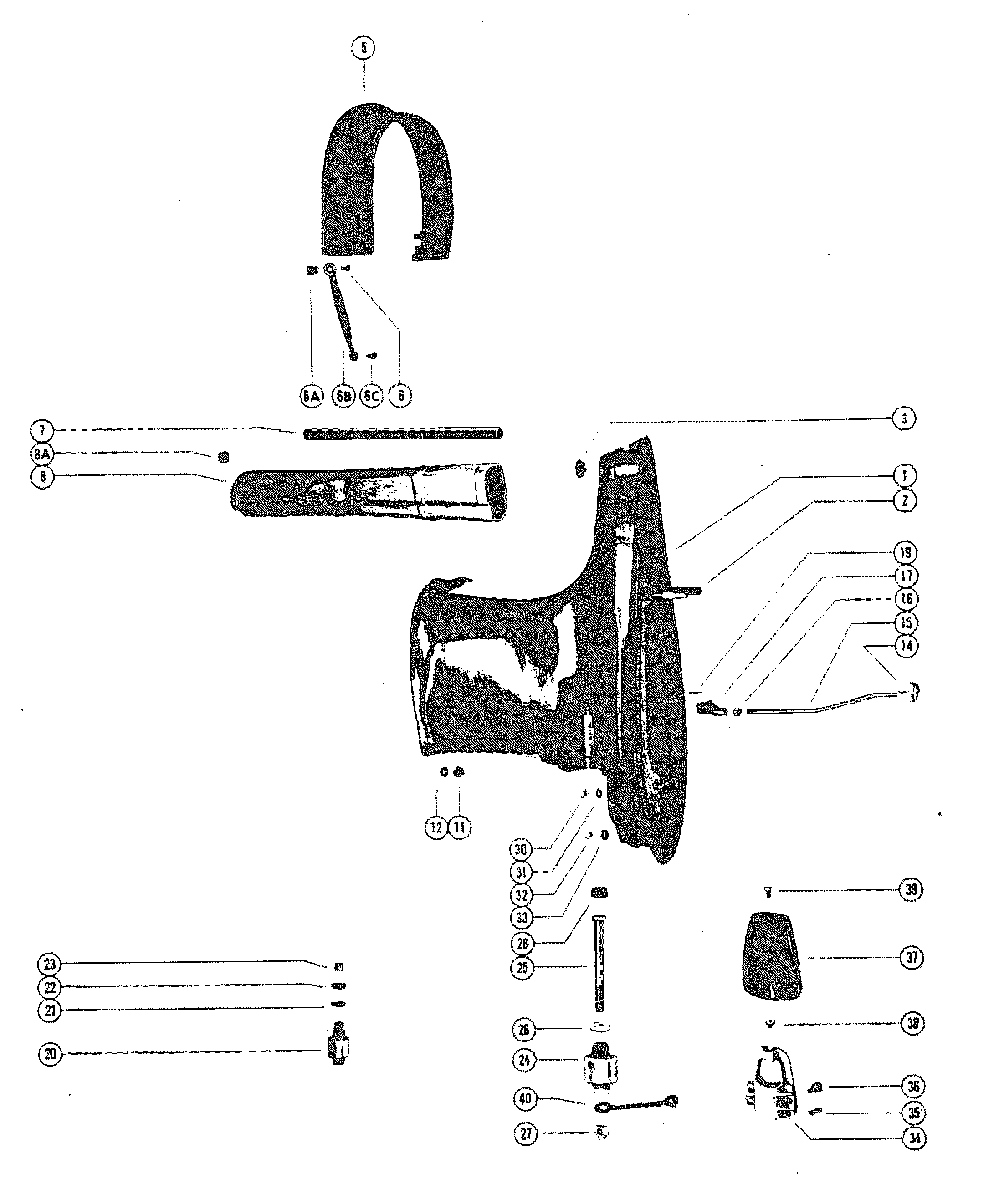

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 115 (6 CYL.) 8067340 AND UP

  • №
    Артикул
    Название
  • 1
    1573-5239A4 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 2
    16-56295 STUD, DRIVER SHAFT HOUSING (LONG SHAFT)
    STUD, DRIVER SHAFT HOUSING (LONG SHAFT)
  • 2
    16-74732 STUD, DRIVE SHAFT HOUSING (EXTRA LONG SHAFT)
    STUD, DRIVE SHAFT HOUSING (EXTRA LONG SHAFT)
  • 3
    19-64649 PLUG, PLASTIC-TRIM TAB SCREW HOLE
    PLUG, PLASTIC-TRIM TAB SCREW HOLE
  • 5
    37417 COVER, TRIM-DRIVE SHAFT HOUSING
    COVER, TRIM-DRIVE SHAFT HOUSING
  • 6
    10-57807 SCREW, TRIM COVER TO BOTTOM COWL
    SCREW, TRIM COVER TO BOTTOM COWL
  • 6A
    25-8M0079730 GROMMET, PLASTIC-TRIM COVER SCREW
    GROMMET, PLASTIC-TRIM COVER SCREW
  • 6B
    84-88238T01 GROUND STRAP ASSEMBLY, TRIM COVER SCREW
    GROUND STRAP ASSEMBLY, TRIM COVER SCREW
  • 6C
    10-62568 SCREW, GROUND STRAP ATTACHING
    SCREW, GROUND STRAP ATTACHING
  • 7
    32-60897 TUBE, WATER INLET (LONG SHAFT)
    TUBE, WATER INLET (LONG SHAFT)
  • 7
    32-77121 TUBE, WATER INLET (EXTRA LONG SHAFT)
    TUBE, WATER INLET (EXTRA LONG SHAFT)
  • 8
    78184T EXHAUST TUBE
    EXHAUST TUBE
  • 8A
    65638 BOOT, EXHAUST TUBE
    BOOT, EXHAUST TUBE
  • 11
    11-69254 NUT, POWERHEAD STUDS (3/8-24)
    NUT, POWERHEAD STUDS (3/8-24)
  • 12
    12-20553 WASHER, POWERHEAD STUDS
    WASHER, POWERHEAD STUDS
  • 14
    52887 GUIDE, PUSH ROD
    -NOT USED WITH FULL POWER TRIM
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW CANADA 7171252 AND BELOW
    GUIDE, PUSH ROD
    -NOT USED WITH FULL POWER TRIM
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW CANADA 7171252 AND BELOW
  • 15
    47558 ROD, PUSH
    -NOT USED WITH FULL POWER TRIM
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
    ROD, PUSH
    -NOT USED WITH FULL POWER TRIM
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
  • 16
    11-69254 NUT, JAM-PUSH ROD
    -NOT USED WITH FULL POWER TRIM
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
    NUT, JAM-PUSH ROD
    -NOT USED WITH FULL POWER TRIM
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
  • 17
    47559 YOKE, PUSH ROD
    -NOT USED WITH FULL POWER TRIM UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
    YOKE, PUSH ROD
    -NOT USED WITH FULL POWER TRIM UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
  • 14
    92704 GUIDE, PUSH ROD
    -NOT USED WITH FULL POWER TRIM
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
    GUIDE, PUSH ROD
    -NOT USED WITH FULL POWER TRIM
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
  • 15
    43417A2 ROD, PUSH
    -NOT USED WITH FULL POWER TRIM
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
    ROD, PUSH
    -NOT USED WITH FULL POWER TRIM
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
  • 16
    11-28770 NUT, JAM-PUSH ROD
    -NOT USED WITH FULL POWER TRIM
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
    NUT, JAM-PUSH ROD
    -NOT USED WITH FULL POWER TRIM
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
  • 17
    89813 YOKE, PUSH ROD
    -NOT USED WITH FULL POWER TRIM
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
    YOKE, PUSH ROD
    -NOT USED WITH FULL POWER TRIM
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
  • 19
    18-25191 COTTER PIN
    PUSH ROD PIN-NOT USED WITH FULL POWER TRIM
    COTTER PIN
    PUSH ROD PIN-NOT USED WITH FULL POWER TRIM
  • 20
    75296 MOUNT, RUBBER-UPPER
    MOUNT, RUBBER-UPPER
  • 21
    12-47840 WASHER, RUBBER-UPPER MOUNT BOLT
    WASHER, RUBBER-UPPER MOUNT BOLT
  • 22
    12-31263 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 23
    11-34933 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 24
    75299 MOUNT, RUBBER-LOWER
    MOUNT, RUBBER-LOWER
  • 25
    10-75284 SCREW, LOWER MOUNT (5-1/2")
    SCREW, LOWER MOUNT (5-1/2")
  • 26
    12-49339 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 27
    11-25096 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 28
    25067 BUMPER, RUBBER-LOWER MOUTING SCREW
    BUMPER, RUBBER-LOWER MOUTING SCREW
  • 30
    11-34933 NUT, GEAR HOUSING STUDS
    NUT, GEAR HOUSING STUDS
  • 31
    12-45176 WASHER, GEAR HOUSING STUDS
    WASHER, GEAR HOUSING STUDS
  • 32
    11-29489 NUT, GEAR HOUSING STUDS
    NUT, GEAR HOUSING STUDS
  • 33
    12-45176 WASHER, GEAR HOUSING STUDS
    WASHER, GEAR HOUSING STUDS
  • 34
    35608 CLAMP, LOWER MOUNT
    CLAMP, LOWER MOUNT
  • 35
    24-35522 SPRING, TENSION-LOWER MOUNT CLAMP
    SPRING, TENSION-LOWER MOUNT CLAMP
  • 36
    10-29256 SCREW, LOWER MOUNT CLAMP
    SCREW, LOWER MOUNT CLAMP
  • 37
    35474T COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 38
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
  • 39
    10-87884 SCREW, COVER TO LOWER CLAMP MOUNT
    SCREW, COVER TO LOWER CLAMP MOUNT
  • 40
    88238A10 WIRE ASSEMBLY, GROUND
    WIRE ASSEMBLY, GROUND
  • --
    77120T SPACER
    DRIVE SHAFT HOUSING-EXTRA LONG SHAFT
    SPACER
    DRIVE SHAFT HOUSING-EXTRA LONG SHAFT
  • --
    17-21438 DOWEL PIN, SPACER -EXTRA LONG SHAFT
    DOWEL PIN, SPACER -EXTRA LONG SHAFT
