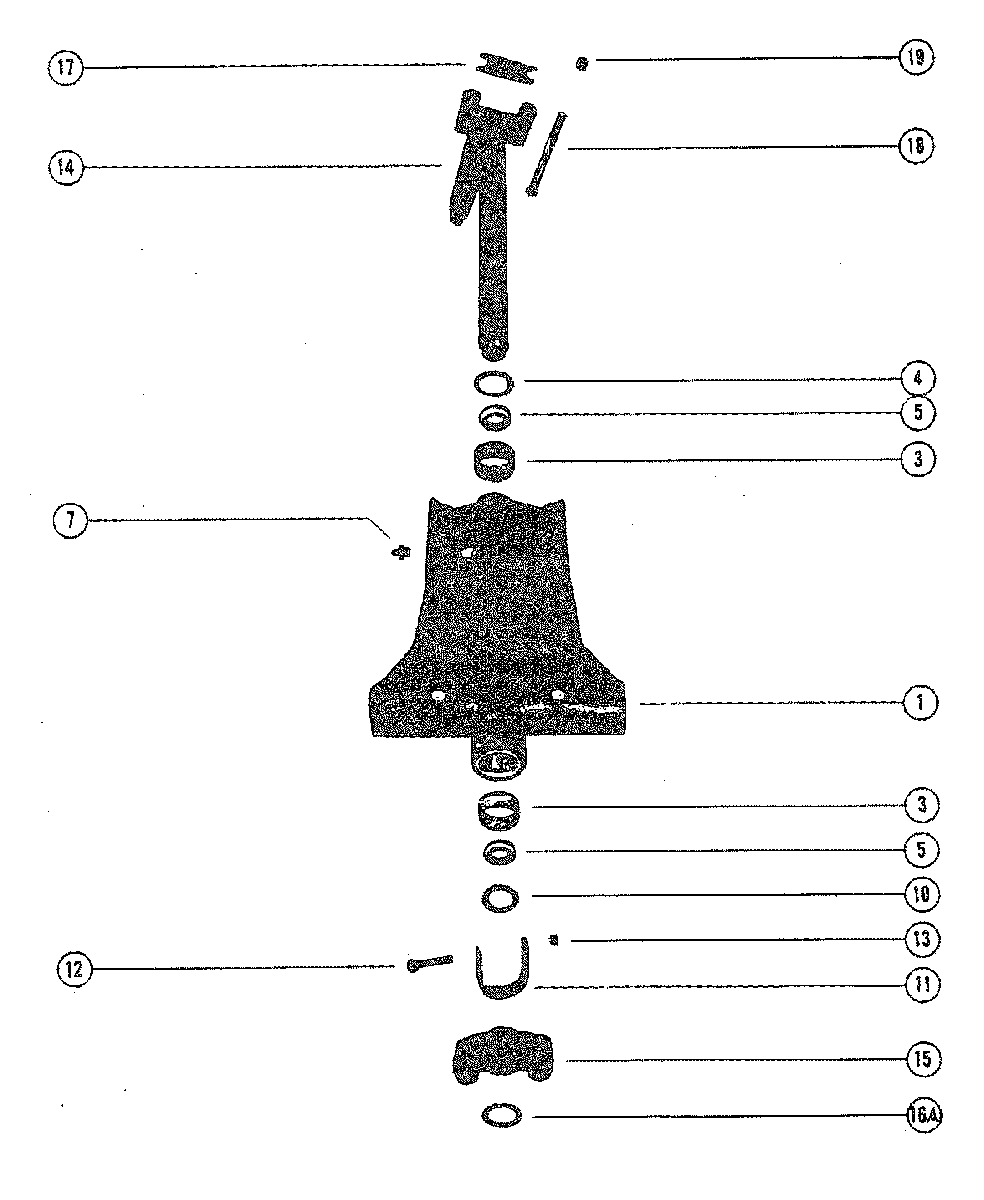

SWIVEL BRACKET ASSEMBLY для Mercury - 115 (6 CYL.) 8067340 AND UP

  • №
    Артикул
    Название
  • 1
    1482-7670A5 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 3
    23-69341 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 4
    12-69342 WASHER, SWIVEL PIN-UPPER
    WASHER, SWIVEL PIN-UPPER
  • 5
    26-37448 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 7
    22-74036 GREASE FITTING, SWIVEL BRACKET
    GREASE FITTING, SWIVEL BRACKET
  • 10
    13-88507 WAVE WASHER, SWIVEL PIN-LOWER
    WAVE WASHER, SWIVEL PIN-LOWER
  • 11
    28205T STRAP STOP
    DRIVE SHAFT HOUSING TO SWIVEL BRACKET
    STRAP STOP
    DRIVE SHAFT HOUSING TO SWIVEL BRACKET
  • 12
    10-28200 SCREW
    STRAP STOP TO DRIVE SHAFT HOUSING (2-7/8")
    SCREW
    STRAP STOP TO DRIVE SHAFT HOUSING (2-7/8")
  • 13
    11-25269 NUT, STRAP STOP FASTENING SCREW
    NUT, STRAP STOP FASTENING SCREW
  • 14
    17-73593A2 SWIVEL PIN AND ARM ASSEMBLY
    SWIVEL PIN AND ARM ASSEMBLY
  • 15
    73984T BOTTOM YOKE
    BOTTOM YOKE
  • 16A
    53-73591 RETAINING RING, BOTTOM YOKE
    RETAINING RING, BOTTOM YOKE
  • 17
    28203 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 18
    10-49554 BOLT, STEERING ARM TO UPPER MOUNT (5-7/8")
    BOLT, STEERING ARM TO UPPER MOUNT (5-7/8")
  • 19
    11-34933 NUT, STEERING ARM BOLT
    NUT, STEERING ARM BOLT
