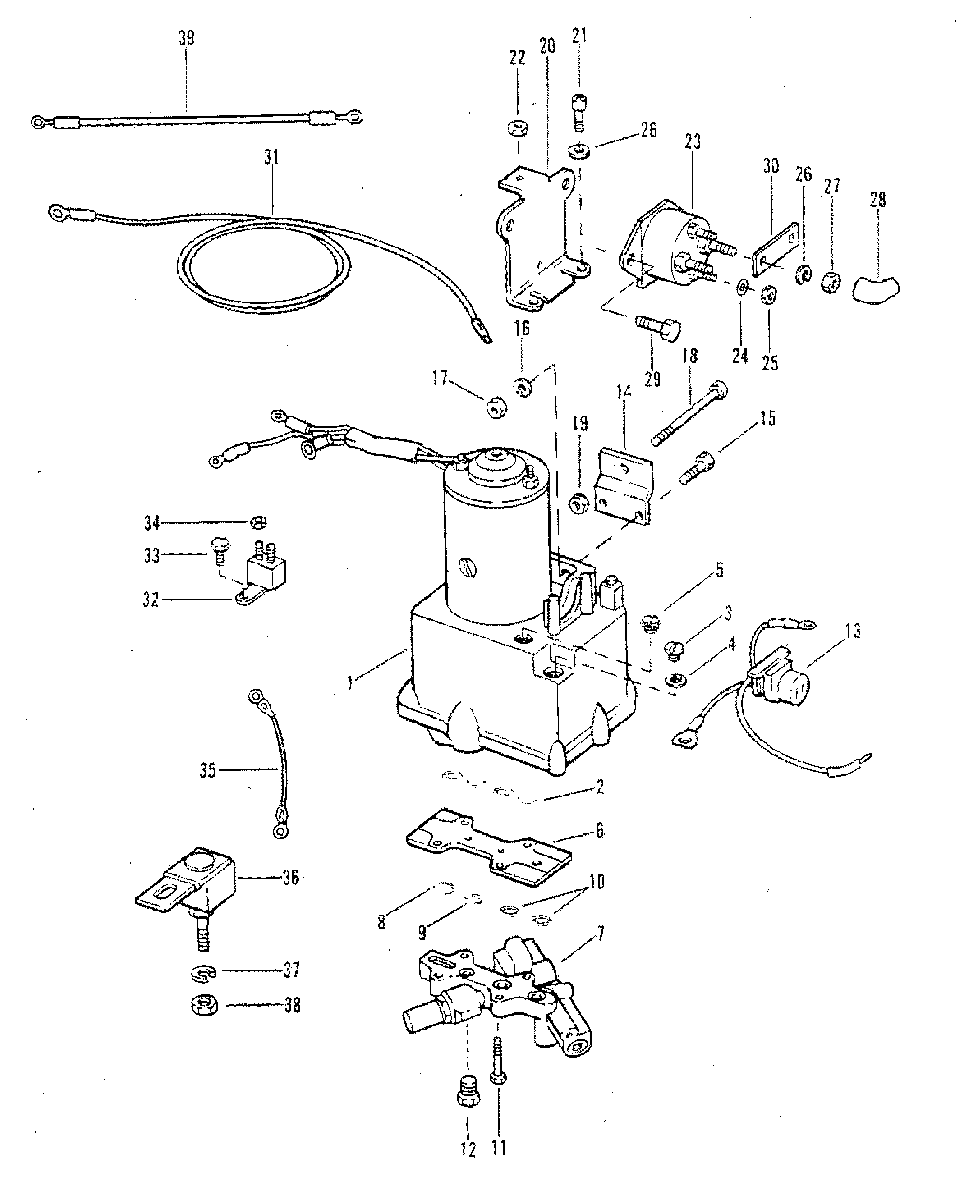

POWER TRIM COMPONENTS (WITH CIRCUIT BREAKER AND FUSE) для Mercury - 115 (6 CYL.) 8067340 AND UP

  • №
    Артикул
    Название
  • 1
    92975A32 HYDRAULIC PUMP ASS'Y (PLASTIC RESERVOIR)
    HYDRAULIC PUMP ASS'Y (PLASTIC RESERVOIR)
  • 2
    25-48171 "O"RING, MANIFOLD PLATE
    "O"RING, MANIFOLD PLATE
  • 3
    10-79953Q04 SCREW, FILLER - HYDRAULIC PUMP
    SCREW, FILLER - HYDRAULIC PUMP
  • 4
    12-191833 WASHER, SEALING - FILLER SCREW
    WASHER, SEALING - FILLER SCREW
  • 5
    10-62269 SCREW, VENT - HYDRAULIC PUMP
    SCREW, VENT - HYDRAULIC PUMP
  • 6
    45336 PLATE, MANIFOLD
    PLATE, MANIFOLD
  • 7
    45197A2 CONTROL VALVE ASSEMBLY
    CONTROL VALVE ASSEMBLY
  • --
    25-48171 "O"RING, MANIFOLD PLATE (SEE REF. #2)
    "O"RING, MANIFOLD PLATE (SEE REF. #2)
  • 8
    25-45254 "O"RING, CONTROL VALVE (3/4" O.D.)
    "O"RING, CONTROL VALVE (3/4" O.D.)
  • 9
    25-48171 "O"RING, CONTROL VALVE (1/2" O.D.)
    "O"RING, CONTROL VALVE (1/2" O.D.)
  • 10
    25-45253 "O"RING, CONTROL VALVE (5/8"O.D.)
    "O"RING, CONTROL VALVE (5/8"O.D.)
  • 11
    10-56500 SCREW
    VALVE AND MANIFOLD PLATE TO PUMP (1-1/4")
    SCREW
    VALVE AND MANIFOLD PLATE TO PUMP (1-1/4")
  • 12
    22-46008 PLUG, CONTROL VALVE (1/2-20")
    PLUG, CONTROL VALVE (1/2-20")
  • 13
    84-79147A3 CONNECTOR AND HARNESS
    CONNECTOR AND HARNESS
  • 14
    45377T BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 15
    10-35386 SCREW
    MOUNTING BRACKET TO HYDRAULIC PUMP (1")
    SCREW
    MOUNTING BRACKET TO HYDRAULIC PUMP (1")
  • 16
    13-39107 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 17
    11-21908 NUT, MOUNTING BRACKET SCREW
    NUT, MOUNTING BRACKET SCREW
  • 18
    10-68298 BOLT, HYDRAULIC PUMP TO BOAT (3-1/4")
    BOLT, HYDRAULIC PUMP TO BOAT (3-1/4")
  • 19
    11-82671112 NUT, HYDRAULIC PUMP BOLT
    NUT, HYDRAULIC PUMP BOLT
  • 20
    94279 BRACKET, MOUNTING - STARTER SOLENOID
    BRACKET, MOUNTING - STARTER SOLENOID
  • 21
    10-28638 SCREW
    MOUNTING BRACKET TO HYDRAULIC PUMP
    SCREW
    MOUNTING BRACKET TO HYDRAULIC PUMP
  • 22
    11-24656 NUT
    MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
    NUT
    MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
  • 23
    89-96158T STARTER SOLENOID
    STARTER SOLENOID
  • 24
    13-26995 LOCKWASHER, SOLENOID TERMINAL (#8)
    LOCKWASHER, SOLENOID TERMINAL (#8)
  • 25
    11-26419 NUT, SOLENOID TERMINAL (8-32)
    NUT, SOLENOID TERMINAL (8-32)
  • 26
    13-26992 LOCKWASHER, SOLENOID TERMINAL (1/4)
    LOCKWASHER, SOLENOID TERMINAL (1/4)
  • 27
    11-94330 NUT, SOLENOID TERMINAL (1/4-20)
    NUT, SOLENOID TERMINAL (1/4-20)
  • 28
    85-861680 BOOT, RUBBER - STARTER SOLENOID TERMINAL
    BOOT, RUBBER - STARTER SOLENOID TERMINAL
  • 29
    10-41508 SCREW
    STARTER SOLENOID TO MOUNTING BRACKET
    SCREW
    STARTER SOLENOID TO MOUNTING BRACKET
  • 30
    94275 LINK, SOLENOID TO SOLENOID
    LINK, SOLENOID TO SOLENOID
  • 31
    84-79139A13 BATTERY LEAD (POSITIVE)
    BATTERY LEAD (POSITIVE)
  • 31
    84-79138A1 BATTERY LEAD (NEGATIVE)
    BATTERY LEAD (NEGATIVE)
  • 32
    88-8M0085705 CIRCUIT BREAKER (20 AMP.)
    CIRCUIT BREAKER (20 AMP.)
  • 33
    10-8M0113176 SCREW, CIRCUIT BREAKER
    SCREW, CIRCUIT BREAKER
  • 34
    11-45076 NUT, CIRCUIT BREAKER TERMINAL (10-32)
    NUT, CIRCUIT BREAKER TERMINAL (10-32)
  • 35
    84-87379A5 WIRE, SOLENOID TO CIRCUIT BREAKER (RED)
    WIRE, SOLENOID TO CIRCUIT BREAKER (RED)
  • 36
    88-79023T90 FUSE ASSEMBLY (90 AMP.)
    FUSE ASSEMBLY (90 AMP.)
  • 37
    12-96457 WASHER, FUSE TERMINAL
    WASHER, FUSE TERMINAL
  • 38
    11-21825 NUT, FUSE TERMINAL (1/4-28)
    NUT, FUSE TERMINAL (1/4-28)
  • 39
    84-61600A9 WIRE, STARTER SOLENOID (BLACK)
    WIRE, STARTER SOLENOID (BLACK)
