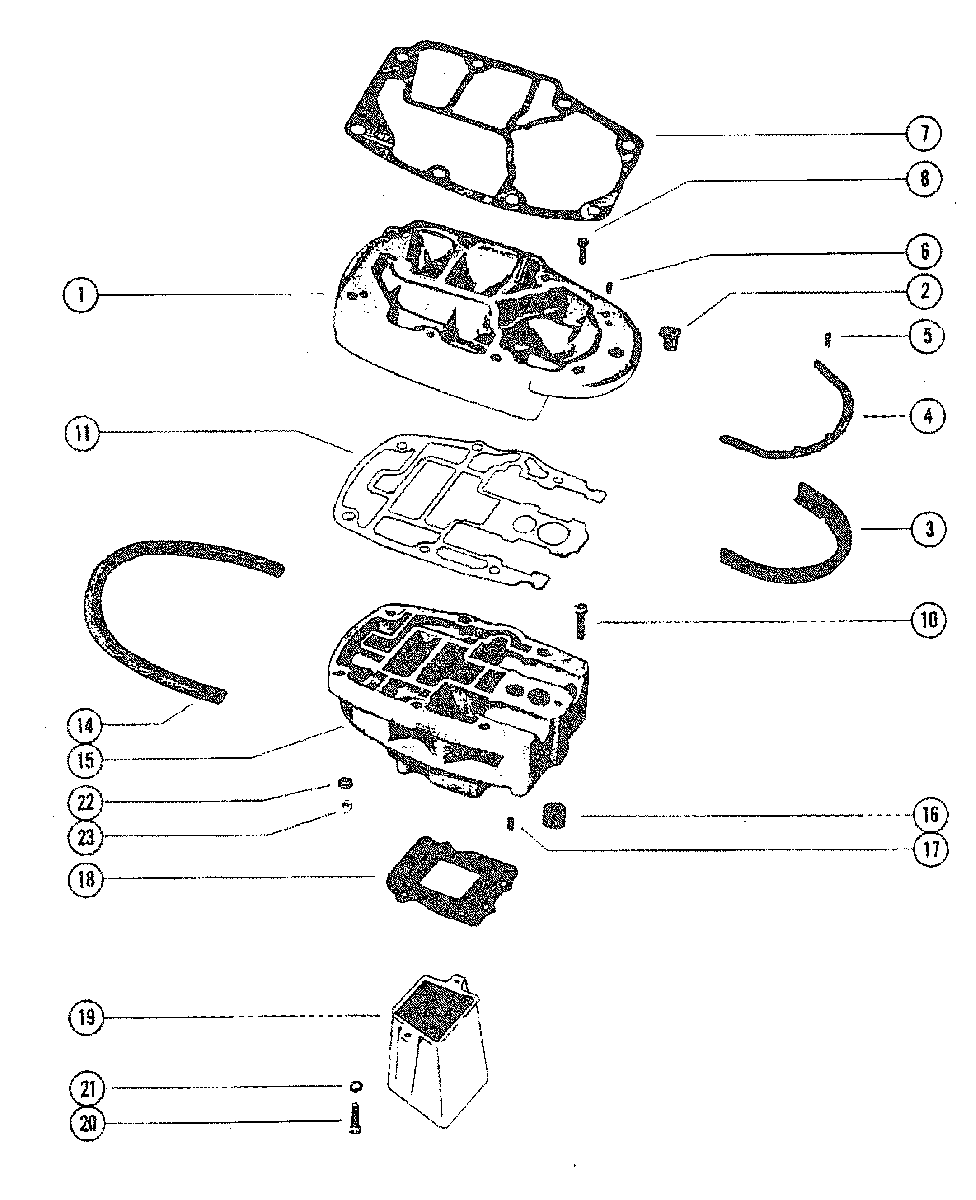

EXHAUST EXTENSION PLATE для Mercury - 115 (6 CYL.) 8067340 AND UP

  • №
    Артикул
    Название
  • 1
    43289A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    PLATE ASSEMBLY, EXHAUST EXTENSION
  • 2
    23-27132 BUSHING, NYLON-EXHAUST EXTENSION PLATE
    BUSHING, NYLON-EXHAUST EXTENSION PLATE
  • 3
    37918 SEAL, EXHAUST EXTENSION PLATE
    SEAL, EXHAUST EXTENSION PLATE
  • 4
    99358 STRIP, RETAINING-PLATE SEAL
    STRIP, RETAINING-PLATE SEAL
  • 5
    10-37571 SCREW, SEAL AND RETAINING STRIP (1/2")
    SCREW, SEAL AND RETAINING STRIP (1/2")
  • 6
    17-23784 DOWEL PINE, EXHAUST EXTENSION PLATE
    DOWEL PINE, EXHAUST EXTENSION PLATE
  • 7
    27-692381 GASKET, POWERHEAD
    GASKET, POWERHEAD
  • 8
    10-66023 SCREW
    ADAPTOR PLATE TO HOUSING PLATE (2")
    SCREW
    ADAPTOR PLATE TO HOUSING PLATE (2")
  • 10
    10-66023 SCREW
    HOUSING PLATE TO DRIVE SHAFT HOUSING (2")
    SCREW
    HOUSING PLATE TO DRIVE SHAFT HOUSING (2")
  • 11
    27-661021 GASKET, PLATE TO DRIVE SHAFT HOUSING PLATE
    GASKET, PLATE TO DRIVE SHAFT HOUSING PLATE
  • 14
    26-60898 SEAL, DRIVE SHAFT HOUSING PLATE
    SEAL, DRIVE SHAFT HOUSING PLATE
  • 15
    43290A4 PLATE ASSEMBLY, DRIVE SHAFT HOUSING
    PLATE ASSEMBLY, DRIVE SHAFT HOUSING
  • 16
    26-38970 SEAL, RUBBER-WATER INLET TUBE
    SEAL, RUBBER-WATER INLET TUBE
  • 17
    17-23784 DOWEL PIN, DRIVE SHAFT HOUSING PLATE
    DOWEL PIN, DRIVE SHAFT HOUSING PLATE
  • 18
    27-62362 GASKET, MEGAPHONE
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
    GASKET, MEGAPHONE
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
  • 19
    99699 MEGAPHONE, EXHAUST
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
    MEGAPHONE, EXHAUST
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
  • 20
    10-60480 SCREW, MEGAPHONE (1-1/8")
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
    SCREW, MEGAPHONE (1-1/8")
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
  • 21
    12-29245 WASHER, MEGAPHONE SCREW
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
    WASHER, MEGAPHONE SCREW
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
  • 19
    99700 MEGAPHONE, EXHAUST
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
    MEGAPHONE, EXHAUST
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
  • 20
    10-65414 SCREW, MEGAPHONE TO PLATE (3/4")
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
    SCREW, MEGAPHONE TO PLATE (3/4")
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
  • 21
    13-26992 LOCKWASHER, MEGAPHONE SCREW
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
    LOCKWASHER, MEGAPHONE SCREW
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
  • 22
    12-20553 WASHER, POWERHEAD STUD
    WASHER, POWERHEAD STUD
  • 23
    11-82671013 NUT, POWERHEAD STUD
    NUT, POWERHEAD STUD
  • -
    27-85653A87 GASKET SET
    GASKET SET
