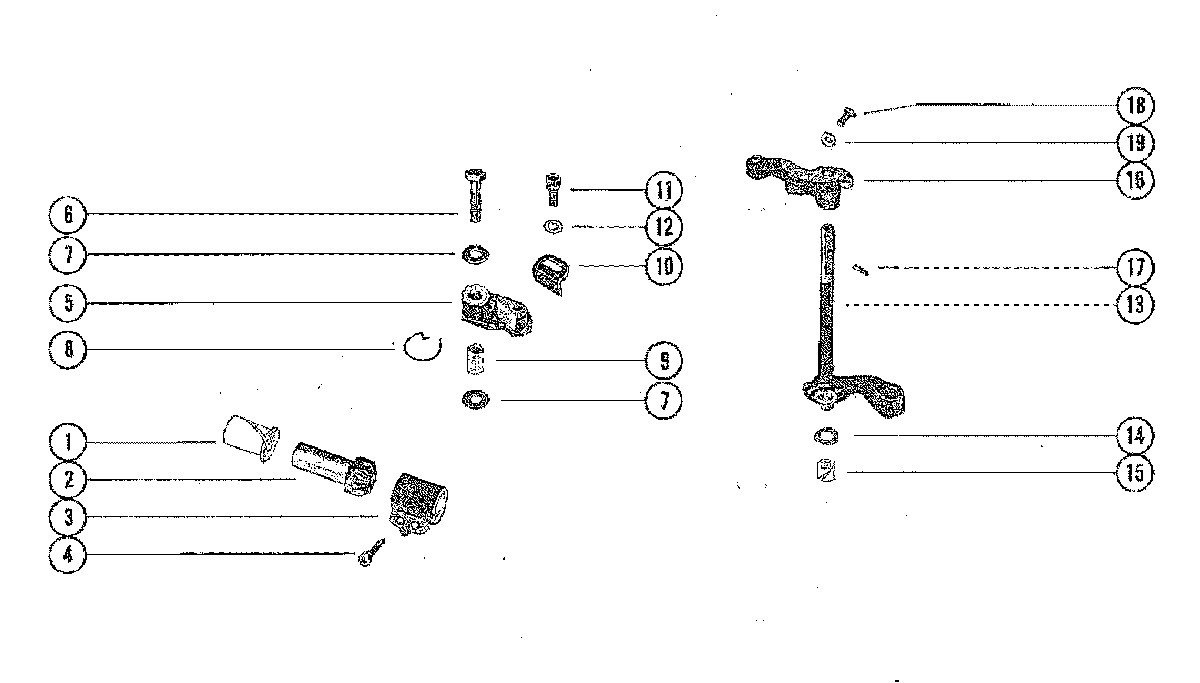

THROTTLE CONTROL LINKAGE для Mercury - 110 3263263 THRU 3795657

  • №
    Артикул
    Название
  • 1
    23-31011 BUSHING, NYLON - THROTTLE CONTROL SOCKET
    SERIAL 00000000-03482752
    BUSHING, NYLON - THROTTLE CONTROL SOCKET
    SERIAL 00000000-03482752
  • 2
    43-60856 GEAR, HORIZONTAL - THROTTLE CONTROL SOCKET
    GEAR, HORIZONTAL - THROTTLE CONTROL SOCKET
  • 3
    60885T HOUSING, THROTTLE CONTROL
    HOUSING, THROTTLE CONTROL
  • 4
    10-96138 SCREW, THROTTLE CONTROL HOUSING TO BOTTOM COWL (5/8")
    SCREW, THROTTLE CONTROL HOUSING TO BOTTOM COWL (5/8")
  • 5
    63308A1 FOLLOWER ASSEMBLY, NEUTRAL SPEED LIMITER
    FOLLOWER ASSEMBLY, NEUTRAL SPEED LIMITER
  • 6
    10-21091 SCREW, LIMITER FOLLOWER TO BOTTOM COWL (1 1/8")
    SERIAL 00000000-03482752
    SCREW, LIMITER FOLLOWER TO BOTTOM COWL (1 1/8")
    SERIAL 00000000-03482752
  • 6
    10-20653 SCREW, LIMITER FOLLOWER TO BOTTOM COWL (1 1/8")
    SERIAL 03482753-09999999
    SCREW, LIMITER FOLLOWER TO BOTTOM COWL (1 1/8")
    SERIAL 03482753-09999999
  • 7
    12-30971 WASHER, SPEED LIMITER FOLLOWER SCREW
    WASHER, SPEED LIMITER FOLLOWER SCREW
  • 8
    24-39042 SPRING, NEUTRAL SPEED LIMITER FOLLOWER
    SPRING, NEUTRAL SPEED LIMITER FOLLOWER
  • 9
    23-30972 BUSHING, SPEED LIMITER FOLLOWER SCREW
    SERIAL 00000000-03482752
    BUSHING, SPEED LIMITER FOLLOWER SCREW
    SERIAL 00000000-03482752
  • 9
    23-63320 BUSHING, SPEED LIMITER FOLLOWER SCREW
    SERIAL 03482753-09999999
    BUSHING, SPEED LIMITER FOLLOWER SCREW
    SERIAL 03482753-09999999
  • 10
    36017 STOP, NEUTRAL SPEED LIMITER
    STOP, NEUTRAL SPEED LIMITER
  • 11
    10-28710 SCREW, NEUTRAL SPEED LIMITER STOP TO FOLLOWER (5/8")
    SCREW, NEUTRAL SPEED LIMITER STOP TO FOLLOWER (5/8")
  • 12
    12-24676 WASHER, NEUTRAL SPEED LIMITER STOP SCREW
    WASHER, NEUTRAL SPEED LIMITER STOP SCREW
  • 13
    63697A1 GEAR AND SHAFT, THROTTLE CONTROL
    SERIAL 00000000-03482752
    GEAR AND SHAFT, THROTTLE CONTROL
    SERIAL 00000000-03482752
  • 13 & 1
    63697A1 GEAR AND SHAFT, THROTTLE CONTROL
    SERIAL 03482753-09999999
    GEAR AND SHAFT, THROTTLE CONTROL
    SERIAL 03482753-09999999
  • 14
    15-64653A1 SHIM ASSEMBLY, GEAR AND SHAFT (LOWER)
    SHIM ASSEMBLY, GEAR AND SHAFT (LOWER)
  • 15
    23-61615 BUSHING, NYLON - GEAR AND SHAFT TO BOTTOM COWL
    SERIAL 00000000-03482752
    BUSHING, NYLON - GEAR AND SHAFT TO BOTTOM COWL
    SERIAL 00000000-03482752
  • 16
    63697A1 LEVER, THROTTLE CONTROL
    SERIAL 00000000-03482752
    LEVER, THROTTLE CONTROL
    SERIAL 00000000-03482752
  • 17
    17-27088 PIN, ROLL - THROTTLE CONTROL LEVER TO THROTTLE CONTROL SHAFT
    PIN, ROLL - THROTTLE CONTROL LEVER TO THROTTLE CONTROL SHAFT
  • 17
    17-27088 PIN, ROLL - THROTTLE CONTROL LEVER TO THROTTLE CONTROL SHAFT
    PIN, ROLL - THROTTLE CONTROL LEVER TO THROTTLE CONTROL SHAFT
  • 18
    10-23015 SCREW, ADJUSTING - THROTTLE ADVANCE (1")
    SCREW, ADJUSTING - THROTTLE ADVANCE (1")
  • 19
    11-68219 NUT, LOCK - THROTTLE ADVANCE ADJUSTING SCREW
    NUT, LOCK - THROTTLE ADVANCE ADJUSTING SCREW
