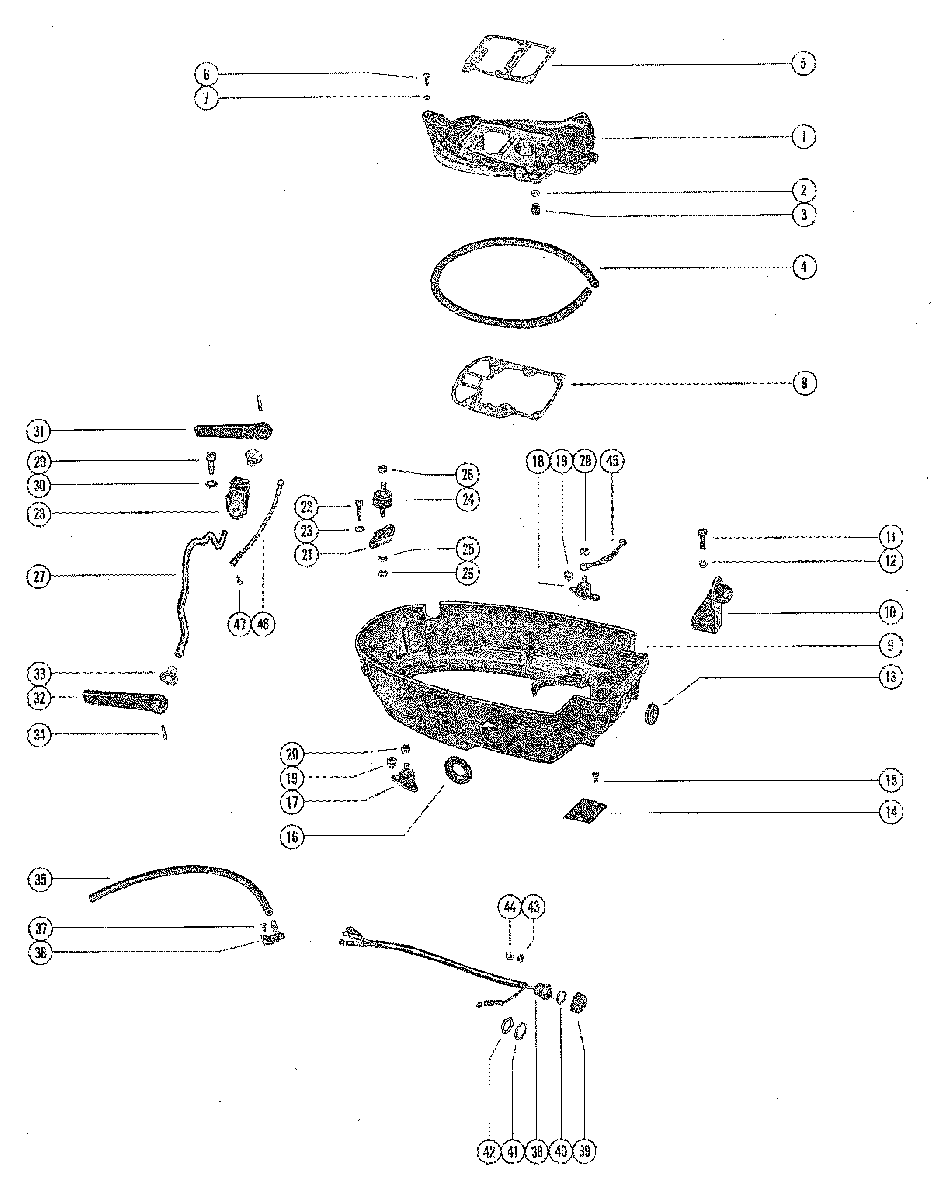

BOTTOM COWL AND ADAPTOR PLATE для Mercury - 110 3263263 THRU 3795657
-
№АртикулНазвание
-
160933A2 ADAPTOR PLATE ASSEMBLY
SERIAL 00000000-03482752ADAPTOR PLATE ASSEMBLY
SERIAL 00000000-03482752 -
163586A2 ADAPTOR PLATE ASSEMBLY
SERIAL 03482753-09999999ADAPTOR PLATE ASSEMBLY
SERIAL 03482753-09999999 -
223-13127 WASHER, NYLON - WATER OUTLET TUBE (ADAPTOR PLATE)WASHER, NYLON - WATER OUTLET TUBE (ADAPTOR PLATE)
-
326-36556 SEAL, RUBBER - WATER OUTLET TUBE (ADAPTOR PLATE)SEAL, RUBBER - WATER OUTLET TUBE (ADAPTOR PLATE)
-
439044 SEAL, RUBBER - ADAPTOR PLATESEAL, RUBBER - ADAPTOR PLATE
-
527-89937 GASKET, POWERHEAD TO ADAPTOR PLATEGASKET, POWERHEAD TO ADAPTOR PLATE
-
610-69026 SCREW, ADAPTOR PLATE TO DRIVE SHAFT HOUSING (7/8")SCREW, ADAPTOR PLATE TO DRIVE SHAFT HOUSING (7/8")
-
713-26992 LOCKWASHER, ADAPTOR PLATE SCREWLOCKWASHER, ADAPTOR PLATE SCREW
-
827-39050 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSINGGASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
-
92124-4637 COWL, BOTTOM
SERIAL 00000000-03482752COWL, BOTTOM
SERIAL 00000000-03482752 -
92124-4900 COWL, BOTTOM
SERIAL 03482753-09999999COWL, BOTTOM
SERIAL 03482753-09999999 -
1056069 ANCHOR, LATCH - BOTTOM COWL
SERIAL 00000000-03482752ANCHOR, LATCH - BOTTOM COWL
SERIAL 00000000-03482752 -
1039474 ANCHOR, LATCH - BOTTOM COWL
SERIAL 03482753-09999999ANCHOR, LATCH - BOTTOM COWL
SERIAL 03482753-09999999 -
1110-22483 SCREW, LATCH ANCHOR TO BOTTOM COWL (1 1/8")SCREW, LATCH ANCHOR TO BOTTOM COWL (1 1/8")
-
1213-26992 LOCKWASHER, LATCH ANCHOR SCREWLOCKWASHER, LATCH ANCHOR SCREW
-
1325-39054 GROMMET, CHOKE SHAFT - BOTTOM COWL
SERIAL 00000000-03482752GROMMET, CHOKE SHAFT - BOTTOM COWL
SERIAL 00000000-03482752 -
1459100 COVER, AIR INTAKE - BOTTOM COWL
SERIAL 00000000-03482752COVER, AIR INTAKE - BOTTOM COWL
SERIAL 00000000-03482752 -
1510-8M0113176 SCREW, AIR INTAKE COVER TO BOTTOM COWL (3/8")
SERIAL 00000000-03482752SCREW, AIR INTAKE COVER TO BOTTOM COWL (3/8")
SERIAL 00000000-03482752 -
1639058 SEAL, SHIFT HANDLE - BOTTOM COWLSEAL, SHIFT HANDLE - BOTTOM COWL
-
1739145 MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (STARBOARD)MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (STARBOARD)
-
1839144 MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (PORT)MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (PORT)
-
1910-96138 SCREW, RUBBER MOUNT TO BOTTOM COWL (1/2")SCREW, RUBBER MOUNT TO BOTTOM COWL (1/2")
-
2011-20184 NUT, ADAPTOR PLATE TO RUBBER MOUNTNUT, ADAPTOR PLATE TO RUBBER MOUNT
-
2139147 ADAPTOR, REAR MOUNT TO BOTTOM COWLADAPTOR, REAR MOUNT TO BOTTOM COWL
-
2210-69026 SCREW, REAR MOUNT ADAPTOR TO BOTTOM COWL (7/8")SCREW, REAR MOUNT ADAPTOR TO BOTTOM COWL (7/8")
-
2313-26992 LOCKWASHER, REAR MOUNT ADAPTOR SCREWLOCKWASHER, REAR MOUNT ADAPTOR SCREW
-
2439146 MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (REAR)MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (REAR)
-
2513-26992 LOCKWASHER, REAR MOUNTLOCKWASHER, REAR MOUNT
-
2611-20184 NUT, ADAPTOR PLATE TO REAR RUBBER AMOUNTNUT, ADAPTOR PLATE TO REAR RUBBER AMOUNT
-
2763648 ROD, COWL LATCH - BOTTOM COWLROD, COWL LATCH - BOTTOM COWL
-
2839099 BRACKET, COWL LATCH RODBRACKET, COWL LATCH ROD
-
2910-69026 SCREW, COWL LATCH BRACKET TO BOTTOM COWL (7/8")SCREW, COWL LATCH BRACKET TO BOTTOM COWL (7/8")
-
3013-26992 LOCKWASHER, COWL LATCH BRACKET SCREWLOCKWASHER, COWL LATCH BRACKET SCREW
-
3139083 HANDLE, COWL LATCH ROD (PORT)HANDLE, COWL LATCH ROD (PORT)
-
3239098 HANDLE, COWL LATCH ROD (STARBOARD)HANDLE, COWL LATCH ROD (STARBOARD)
-
3323-60762 BUSHING, NYLON - COWL LATCH ROD TO BOTTOM COWLBUSHING, NYLON - COWL LATCH ROD TO BOTTOM COWL
-
3417-25319 PIN, ROLL - HANDLE TO COWL LATCH RODPIN, ROLL - HANDLE TO COWL LATCH ROD
-
3532-8M0108355 TUBE, TELL TALE (11")TUBE, TELL TALE (11")
-
3656712 NOZZLE, TELL TALENOZZLE, TELL TALE
-
3710-41228 SCREW, TELL TALE NOZZLE TO BOTTOM COWLSCREW, TELL TALE NOZZLE TO BOTTOM COWL
-
3859065A1 STOP SWITCH ASSEMBLYSTOP SWITCH ASSEMBLY
-
3938950A1 COVER ASSEMBLY, STOP SWITCHCOVER ASSEMBLY, STOP SWITCH
-
4012-59061 WASHER, STATOR LEAD TO STOP SWITCHWASHER, STATOR LEAD TO STOP SWITCH
-
4113-21972 LOCKWASHER, STOP SWITCH CONNECTORLOCKWASHER, STOP SWITCH CONNECTOR
-
4211-21971 NUT, STOP SWITCH TO BOTTOM COWLNUT, STOP SWITCH TO BOTTOM COWL
-
4313-26996 LOCKWASHER, STATOR LEAD TO STOP SWITCHLOCKWASHER, STATOR LEAD TO STOP SWITCH
-
4411-68219 NUT, STATOR LEAD TO STOP SWITCHNUT, STATOR LEAD TO STOP SWITCH
-
4559796A1 GROUND WIRE, RUBBER MOUNT SCREW AND NUTGROUND WIRE, RUBBER MOUNT SCREW AND NUT
-
4684-60871A6 CABLE ASSEMBLY, GROUND
SERIAL 03482753-09999999CABLE ASSEMBLY, GROUND
SERIAL 03482753-09999999 -
4710-8M0113176 SCREW, GROUND CABLE TO GROUND LATCH ROD
SERIAL 03482753-09999999SCREW, GROUND CABLE TO GROUND LATCH ROD
SERIAL 03482753-09999999
