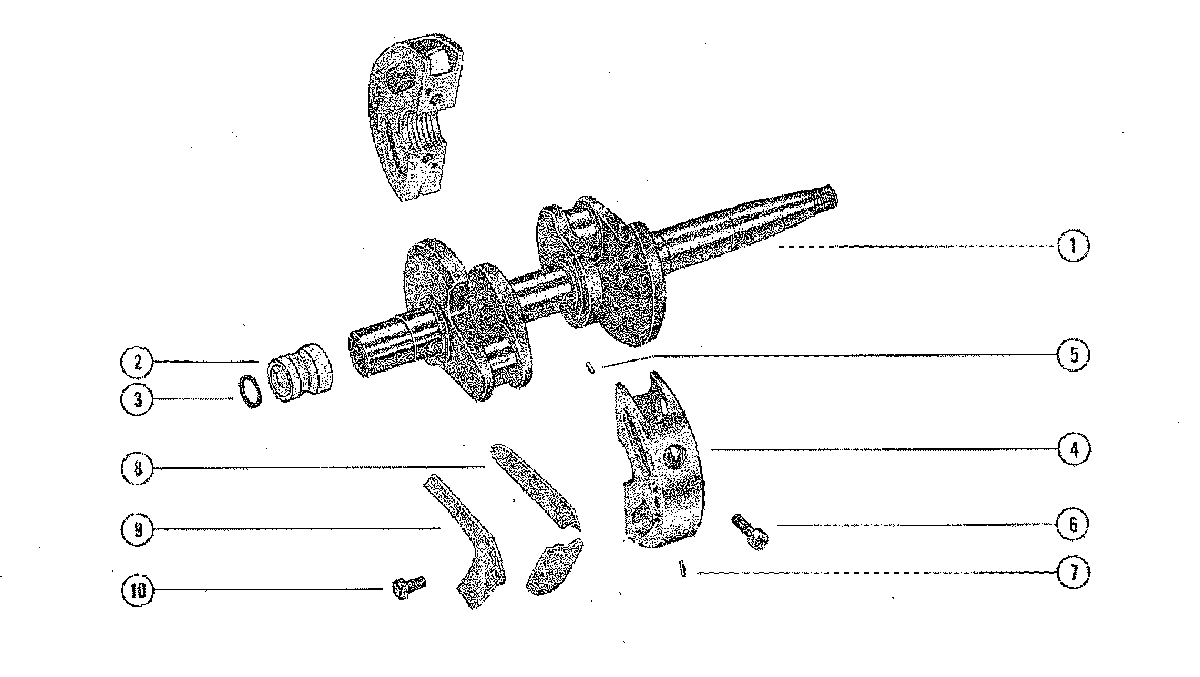

CRANKSHAFT AND MAIN BEARING ASSEMBLY для Mercury - 110 3263263 THRU 3795657
-
№АртикулНазвание
-
1421-2224 CRANKSHAFTCRANKSHAFT
-
226-72793 CARRIER ASSEMBLY, SEAL CRANKSHAFT
SERIAL 03482753-09999999CARRIER ASSEMBLY, SEAL CRANKSHAFT
SERIAL 03482753-09999999 -
326-72793 SEAL, CRANKSHAFT CARRIER
SERIAL 03482753-09999999SEAL, CRANKSHAFT CARRIER
SERIAL 03482753-09999999 -
4550-8122A5 MAIN BEARING ASSEMBLY (VALVE TYPE)MAIN BEARING ASSEMBLY (VALVE TYPE)
-
517-20032 PIN, DOWEL - MAIN BEARINGPIN, DOWEL - MAIN BEARING
-
517-65855 PIN, DOWEL - REED LOCATINGPIN, DOWEL - REED LOCATING
-
610-56781 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
717-20032 PIN, DOWEL - MAIN BEARING TO BLOCKPIN, DOWEL - MAIN BEARING TO BLOCK
-
834-31942A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
934-20053 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1010-27304 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
