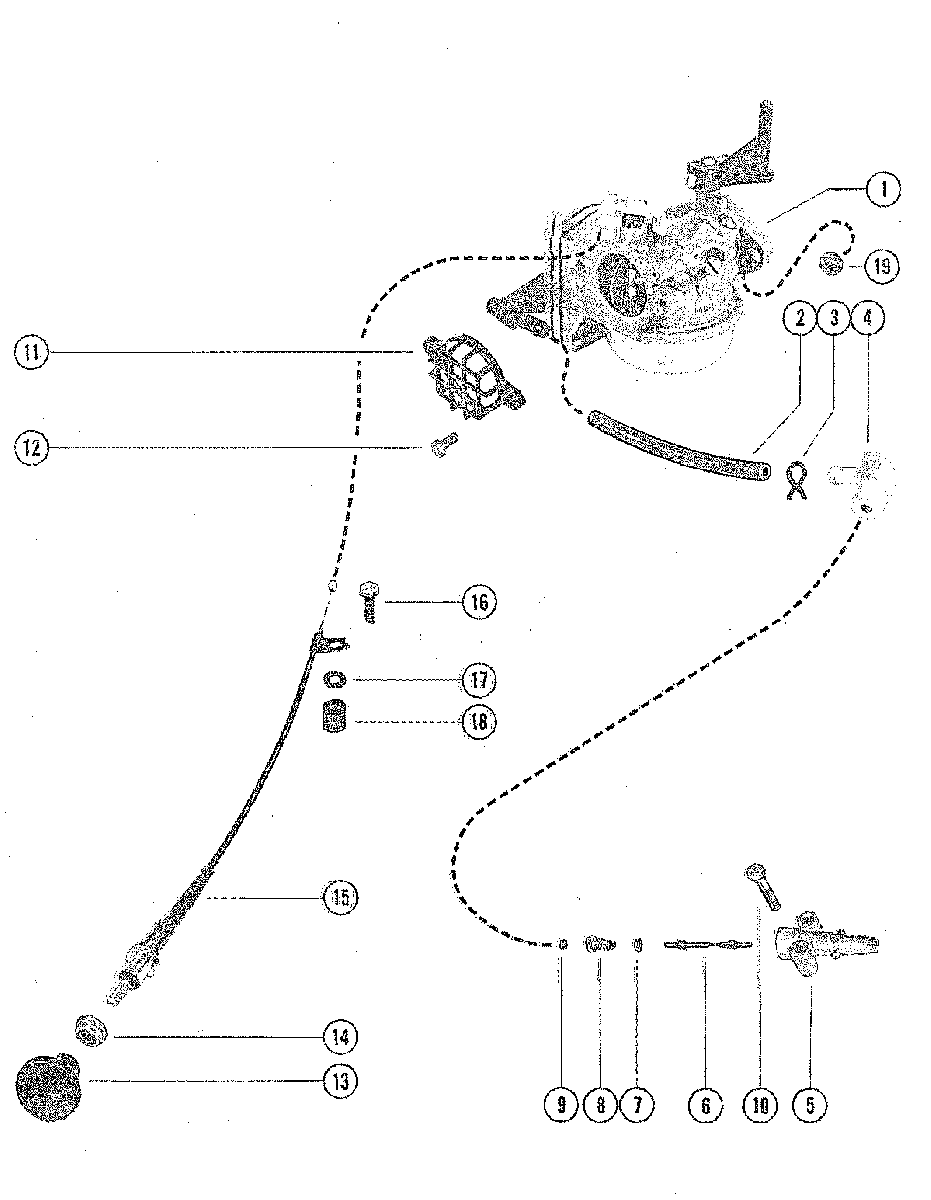

CARBURETOR AND CHOKE ASSEMBLY для Mercury - 110 3263263 THRU 3795657

  • №
    Артикул
    Название
  • 1
    1364-8782A13 CARBURETOR ASSEBMLY, COMPLETE
    (Serial # 3482753 and Up)
    CARBURETOR ASSEBMLY, COMPLETE
    (Serial # 3482753 and Up)
  • 2
    32-8M0108355 FUEL LINE, ADAPTOR TO CARBURETOR (3 1/4")
    FUEL LINE, ADAPTOR TO CARBURETOR (3 1/4")
  • 3
    54-63933 CLAMP, FUEL HOSE ATTACHING
    CLAMP, FUEL HOSE ATTACHING
  • 4
    22-63981 FITTING, FUEL LINE TO ADAPTOR
    FITTING, FUEL LINE TO ADAPTOR
  • 5
    22833 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 6
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 7
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 8
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 9
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 10
    10-37923 SCREW, ADAPTOR TO BOTTOM COWL (1 1/4")
    SCREW, ADAPTOR TO BOTTOM COWL (1 1/4")
  • 11
    65552 SCREEN, CARBURETOR
    SCREEN, CARBURETOR
  • 12
    10-69022 SCREW, SCREEN TO CARBURETOR
    SCREW, SCREEN TO CARBURETOR
  • 13
    86381 KNOB, CHOKE
    KNOB, CHOKE
  • 14
    11-73710 NUT, CHOKE CABLE TO BOTTOM COWL
    NUT, CHOKE CABLE TO BOTTOM COWL
  • 15
    72465 CABLE, CHOKE
    CABLE, CHOKE
  • 16
    10-45862 SCREW, CHOKE CABLE TO CARBURETOR
    SCREW, CHOKE CABLE TO CARBURETOR
  • 17
    13-26996 LOCKWASHER, CHOKE CABLE SCREW
    LOCKWASHER, CHOKE CABLE SCREW
  • 18
    23-63932 SPACER, CHOKE CABLE SCREW
    SPACER, CHOKE CABLE SCREW
  • 19
    11-20184 NUT, CARBURETOR ATTACHING
    NUT, CARBURETOR ATTACHING
