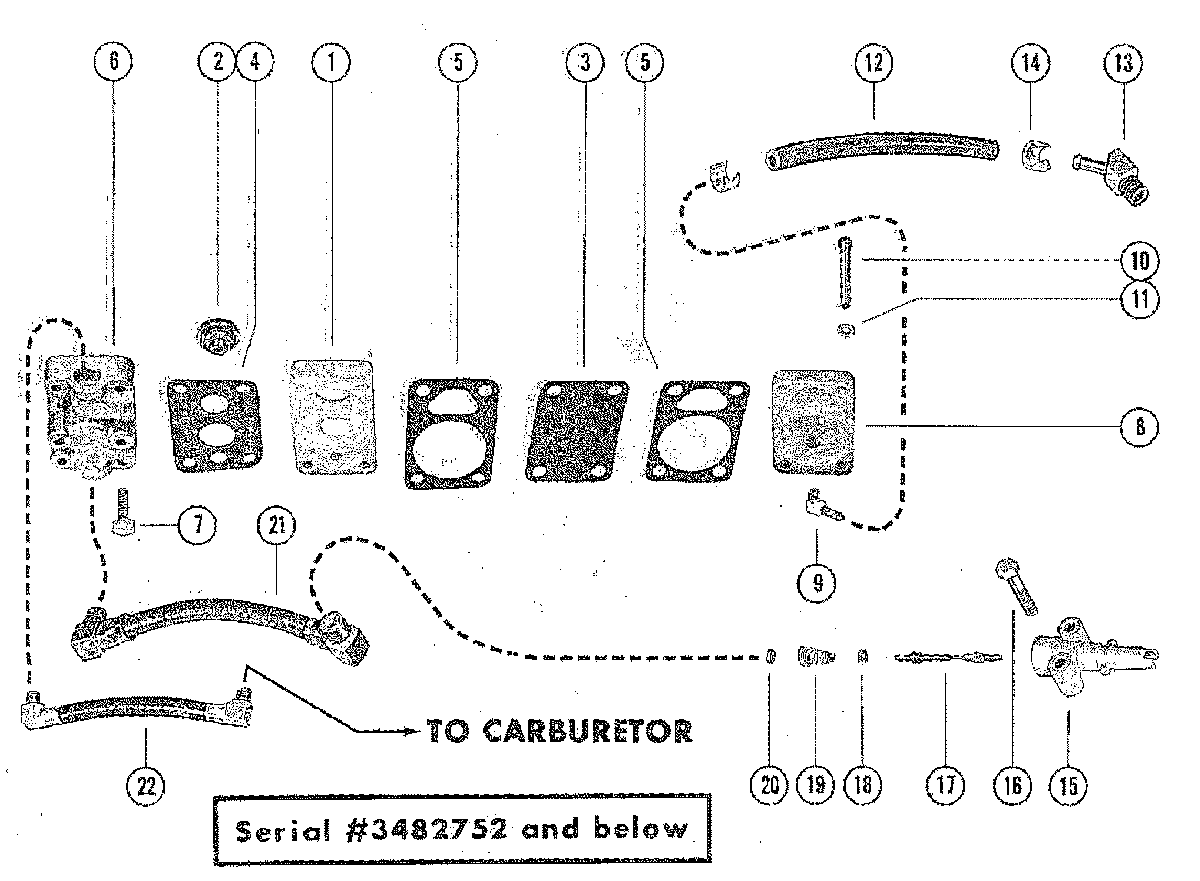

FUEL PUMP ASSEMBLY для Mercury - 110 3263263 THRU 3795657

  • №
    Артикул
    Название
  • 1
    89977A1 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-30430A2 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    53245A1 DIAPHRAGM KIT, FUEL PUMP
    DIAPHRAGM KIT, FUEL PUMP
  • 4
    90-8M0143356 GASKET, FUEL PUMP TO BASE
    GASKET, FUEL PUMP TO BASE
  • 5
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 6
    53241 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 7
    10-29200 SCREW, FUEL PUMP TO ANCHOR (5/8")
    SCREW, FUEL PUMP TO ANCHOR (5/8")
  • 8
    61541 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 9
    22-61544 ELBOW, PUMP OUTLET
    ELBOW, PUMP OUTLET
  • 10
    10-32627 SCREW, FUEL PUMP TO BASE (1 1/2")
    SCREW, FUEL PUMP TO BASE (1 1/2")
  • 11
    12-847883 WASHER, FUEL PUMP SCREW
    WASHER, FUEL PUMP SCREW
  • 12
    32-9912688 HOSE, PRESSURE - CYLINDER BLOCK TO FUEL PUMP (7 1/2")
    HOSE, PRESSURE - CYLINDER BLOCK TO FUEL PUMP (7 1/2")
  • 13
    22-53553 ELBOW, PRESSURE HOSE TO CYL. BLOCK (45)
    ELBOW, PRESSURE HOSE TO CYL. BLOCK (45)
  • 14
    54-20387 CLAMP, PRESSURE HOSE TO ELBOWS
    CLAMP, PRESSURE HOSE TO ELBOWS
  • 15
    22833 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 16
    10-22968 SCREW, ADAPTOR TO BOTTOM COWL (1 1/4")
    SCREW, ADAPTOR TO BOTTOM COWL (1 1/4")
  • 17
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 18
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 19
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 20
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 21
    32-61618 FUEL LINE, ADAPTOR TO FUEL PUMP
    FUEL LINE, ADAPTOR TO FUEL PUMP
  • 22
    32-64055 FUEL LINE, FUEL PUMP TO CARBURETOR (5 3/4")
    FUEL LINE, FUEL PUMP TO CARBURETOR (5 3/4")
