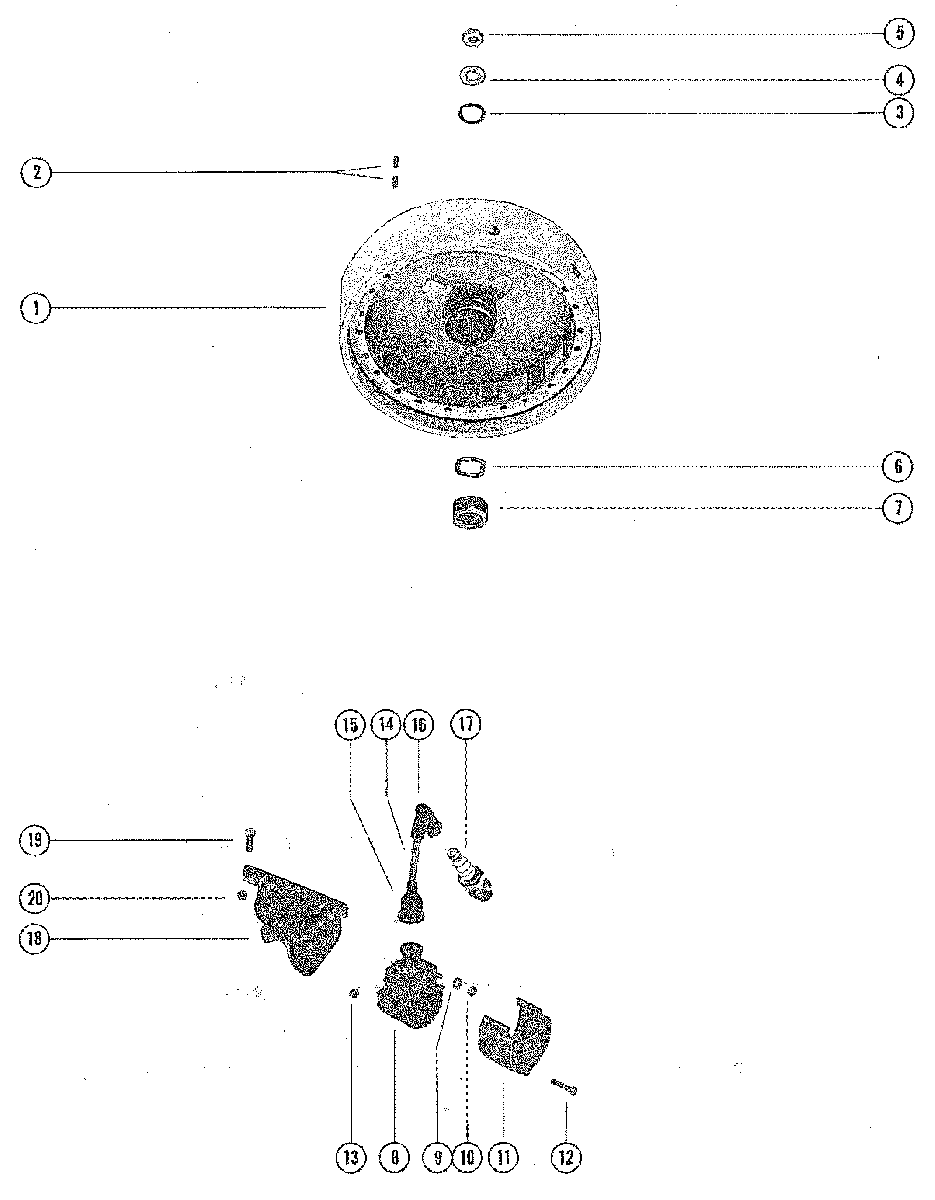

FLYWHEEL AND IGNITION COIL для Mercury - 110 3263263 THRU 3795657

  • №
    Артикул
    Название
  • 1
    239-4473A1 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 2
    28-20094 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 3
    25-62701 "O" RING, FLYWHEEL NUT
    "O" RING, FLYWHEEL NUT
  • 4
    12-36245 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 5
    11-20696 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 6
    13-35629 WASHER, WAVE - BREAKER CAM TENSION
    WASHER, WAVE - BREAKER CAM TENSION
  • 7
    336-4466 CAM, BREAKER
    CAM, BREAKER
  • 8
    336-4528T2 COIL ASSEMBLY, IGNITION
    COIL ASSEMBLY, IGNITION
  • 9
    13-26996 LOCKWASHER, IGNITION COIL TERMINAL
    LOCKWASHER, IGNITION COIL TERMINAL
  • 10
    11-45076 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 11
    66355 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 12
    10-61530 SCREW, COIL COVER TO REAR SUPPORT BRACKET (2 1/8")
    SCREW, COIL COVER TO REAR SUPPORT BRACKET (2 1/8")
  • 13
    11-27164 NUT, COIL COVER SCREW
    NUT, COIL COVER SCREW
  • 14
    84-813715A1 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 15
    332-2854T01 NIPPLE, IGNITION COIL
    NIPPLE, IGNITION COIL
  • 16
    85-63709A1 PROTECTOR ASSEMBLY, SPARK PLUG
    PROTECTOR ASSEMBLY, SPARK PLUG
  • 17
    33-97182Q SPARK PLUG (AC V40FFK)
    SPARK PLUG (AC V40FFK)
  • 18
    56352 BRACKET, COIL SUPPORT
    BRACKET, COIL SUPPORT
  • 19
    10-64278 SCREW, BRACKET TO CYLINDER BLOCK (1")
    SCREW, BRACKET TO CYLINDER BLOCK (1")
  • 19
    10-22968 SCREW, BRACKET TO CYLINDER BLOCK (1 1/4")
    SCREW, BRACKET TO CYLINDER BLOCK (1 1/4")
  • 20
    11-20184 NUT, BRACKET SCREW
    NUT, BRACKET SCREW
