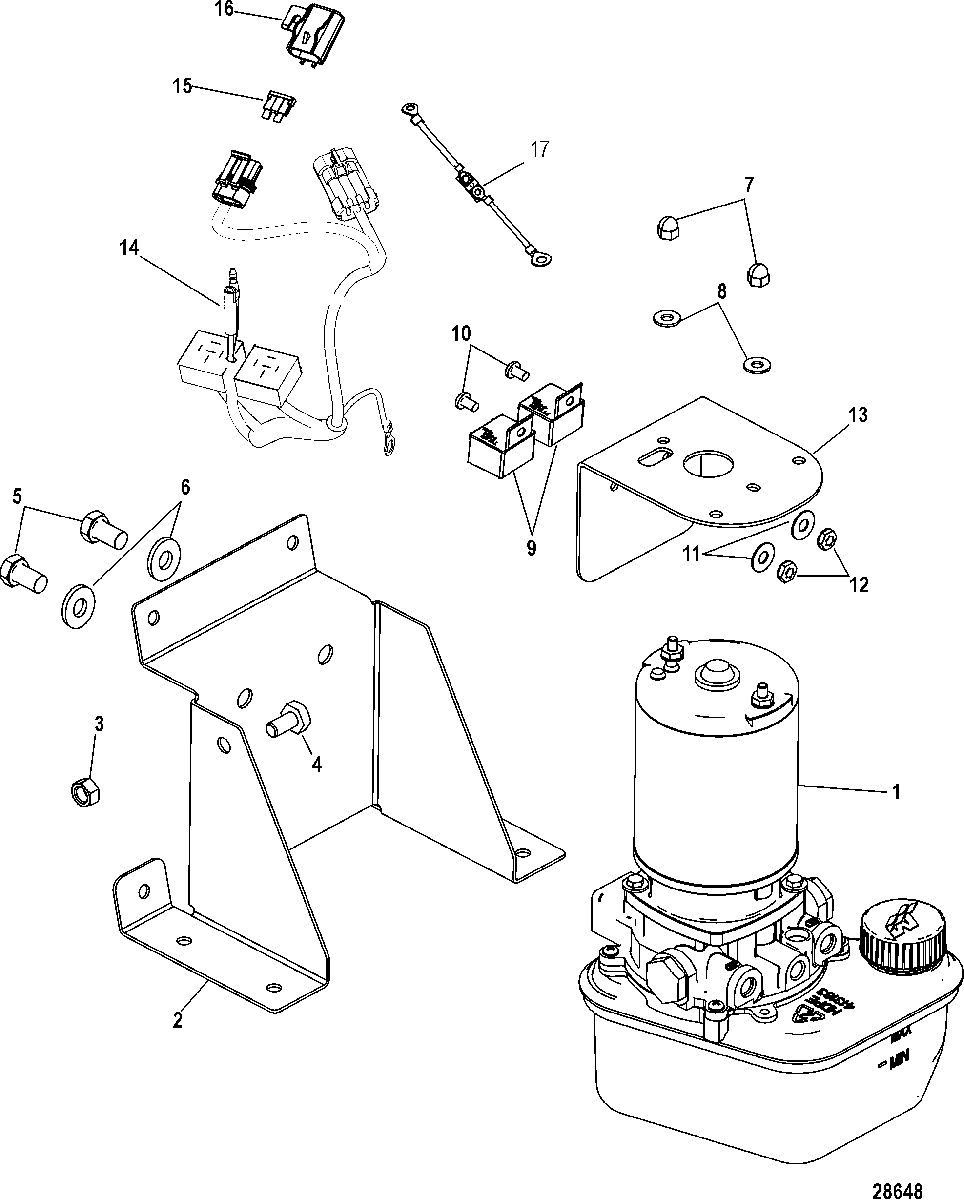

Trim Pump Assembly(Complete) для Mercruiser - VAZER DRIVE 0W995000 & Up
-
№АртикулНазвание
-
-866565T02 PUMP ASSEMBLY, CompletePUMP ASSEMBLY, Complete
-
1866565T PUMP/MOTOR ASSEMBLY, Trim - 12 VoltPUMP/MOTOR ASSEMBLY, Trim - 12 Volt
-
2866521T BRACKETBRACKET
-
311-68292 NUT, (.312-18)NUT, (.312-18)
-
410-90285 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
510-98260 SCREW, (.375-16 x .620)SCREW, (.375-16 x .620)
-
613-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
711-866591 NUT, Acorn (12-24)NUT, Acorn (12-24)
-
812-8M2000021 WASHER, (12-24)WASHER, (12-24)
-
98M2001129 RELAY, Trim PumpRELAY, Trim Pump
-
1010-42813 SCREW, (#10-32 X .380)SCREW, (#10-32 X .380)
-
1112-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
1211-27164 NUT AND LOCKWASHER, (#10-32)NUT AND LOCKWASHER, (#10-32)
-
13866522T BRACKETBRACKET
-
1484-866566T01 HARNESS ASSEMBLY, Trim Pump AssemblyHARNESS ASSEMBLY, Trim Pump Assembly
-
1588-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
16866065 COVERCOVER
-
1784-866730T01 FUSABLE LINK, 80 AmpereFUSABLE LINK, 80 Ampere
