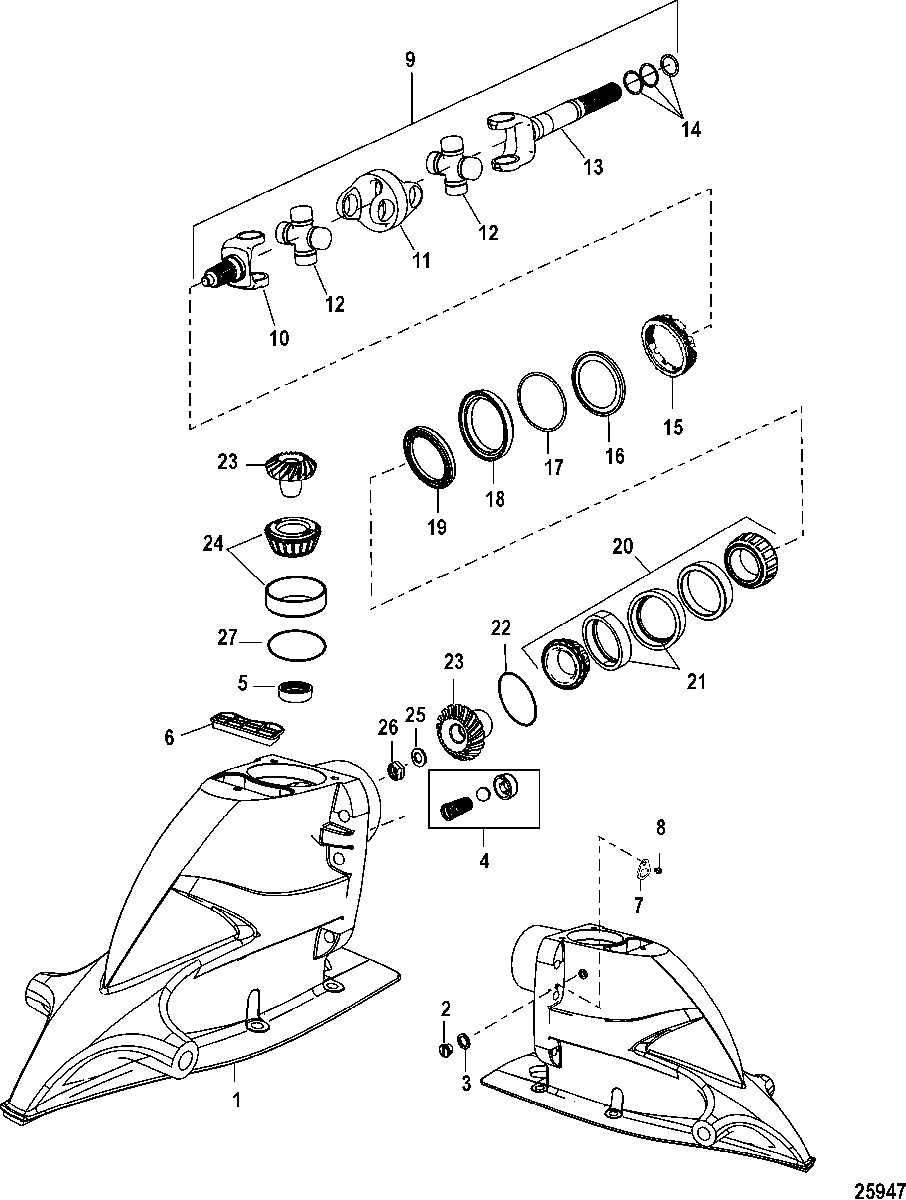

Driveshaft Housing and Drive Gears для Mercruiser - VAZER DRIVE 0W995000 & Up
-
№АртикулНазвание
-
-1500-866447A06 HOUSING ASSEMBLY, Driveshaft - Complete (2.58:1)HOUSING ASSEMBLY, Driveshaft - Complete (2.58:1)
-
-1500-866447A08 HOUSING ASSEMBLY, Driveshaft - Complete (2.77:1)HOUSING ASSEMBLY, Driveshaft - Complete (2.77:1)
-
11500-866447A04 HOUSING, Driveshaft - BasicHOUSING, Driveshaft - Basic
-
210-79953Q04 SCREW KIT, DrainSCREW KIT, Drain
-
326-830749 SEALSEAL
-
424-17997A1 SPRING KITSPRING KIT
-
526-864319 SEAL, OilSEAL, Oil
-
619-866511 PLUGPLUG
-
78M2001743 PLATE, GroundPLATE, Ground
-
810-8M0113176 SCREW, (#10-24 x .38)SCREW, (#10-24 x .38)
-
9864281A2 UNIVERSAL JOINTUNIVERSAL JOINT
-
10864282T YOKEYOKE
-
11865503T SOCKETSOCKET
-
12865496A02 CROSS AND BEARINGCROSS AND BEARING
-
13864281A01 YOLK ASSEMBLYYOLK ASSEMBLY
-
1425-29845 O-RING, (.924 x .103)O-RING, (.924 x .103)
-
1425-35027 O-RING, (1.046)O-RING, (1.046)
-
158168112 RETAINERRETAINER
-
1635983 RINGRING
-
1725-70937 O-RINGO-RING
-
1866081A2 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
1926-823894 SEAL, OilSEAL, Oil
-
2031-30894A5 BEARING KIT, RollerBEARING KIT, Roller
-
2123-853649A1 SPACER CUP ASSEMBLYSPACER CUP ASSEMBLY
-
2215-35980A1 SHIM SETSHIM SET
-
2343-853643A2 GEAR KIT, (17-19 GEARS)
(2.58:1)GEAR KIT, (17-19 GEARS)
(2.58:1) -
2343-853642A2 GEAR KIT, (20-24 GEARS)
(2.77:1)GEAR KIT, (20-24 GEARS)
(2.77:1) -
2431-35990A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
2512-45810 WASHERWASHER
-
2611-22339 NUT, (.625-18)NUT, (.625-18)
-
2715-36178A02 SHIM SETSHIM SET
-
-26-88397A02 SEAL KIT, Driveshaft HousingSEAL KIT, Driveshaft Housing
