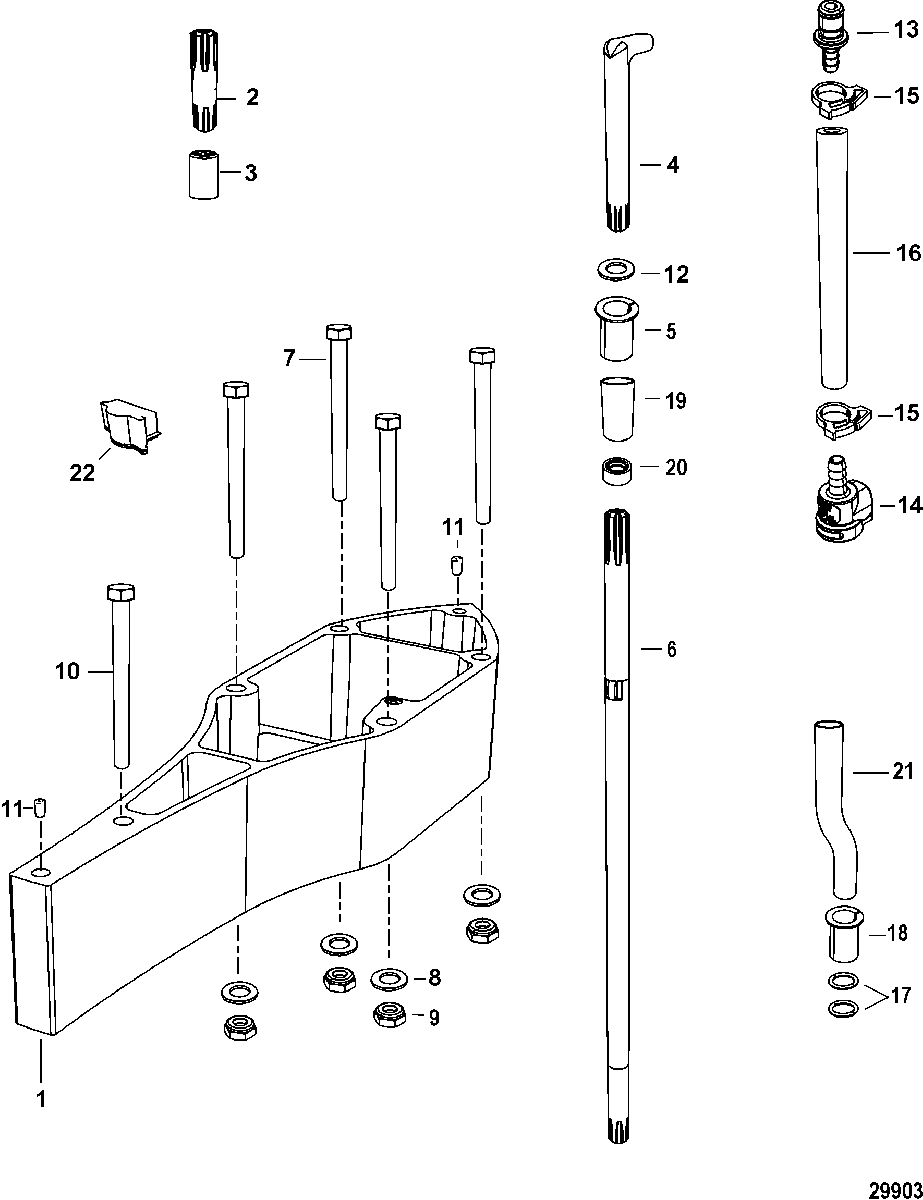

Spacer Kit, Gear Case для Mercruiser - VAZER DRIVE 0W995000 & Up
-
№АртикулНазвание
-
-879150A18 SPACER KIT, (3.531 Inches)SPACER KIT, (3.531 Inches)
-
18M2001284 DRIVE SPACER, (3.531 Inches)DRIVE SPACER, (3.531 Inches)
-
245-8M2001307 DRIVESHAFT, ExtensionDRIVESHAFT, Extension
-
3823902 COUPLINGCOUPLING
-
48M2001287 EXTENSION, Shift ShaftEXTENSION, Shift Shaft
-
543585 COUPLINGCOUPLING
-
6824145 SHIFT SHAFTSHIFT SHAFT
-
710-8M2001323 SCREW, (.437-20 x 5.060)SCREW, (.437-20 x 5.060)
-
812-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
911-859135 NUT, (.437-20) Brass/Nickel PlatedNUT, (.437-20) Brass/Nickel Plated
-
1010-8M2001319 SCREW, (.375-16 x 4.500) Stainless SteelSCREW, (.375-16 x 4.500) Stainless Steel
-
1117-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1226-455771 SEALSEAL
-
1322-865191 FITTING, MaleFITTING, Male
-
1422-865379 FITTING, FemaleFITTING, Female
-
1554-415825 CLAMP, NylonCLAMP, Nylon
-
16194098 HOSE, Lock On (.250 Inside Diameter - 2.75 length)HOSE, Lock On (.250 Inside Diameter - 2.75 length)
-
1725-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
18816597 COUPLING, Water PumpCOUPLING, Water Pump
-
1923-816583 SLEEVESLEEVE
-
2026-88397 SEALSEAL
-
2132-8M2004416 TUBE, WaterTUBE, Water
-
22821526001 FILLER BLOCKFILLER BLOCK
