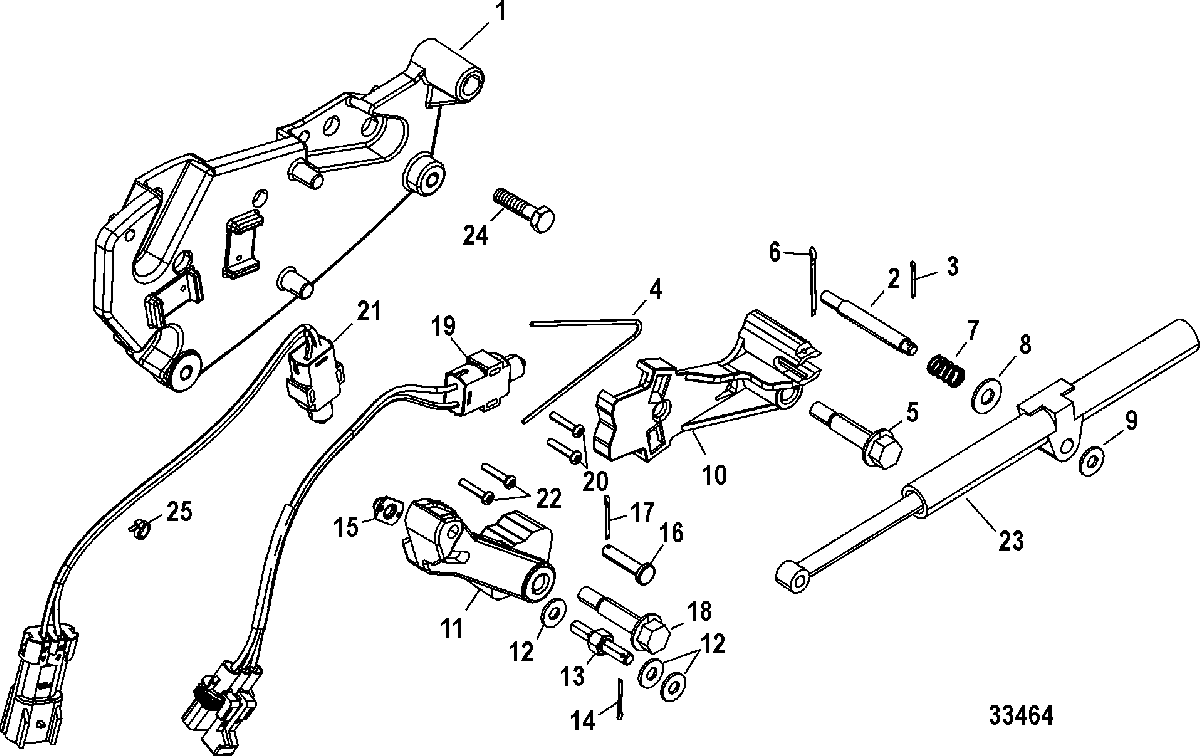

Shift Bracket для Mercruiser - VAZER DRIVE 0W995000 & Up
-
№АртикулНазвание
-
-807962A30 SHIFT PLATE ASSEMBLY, CompleteSHIFT PLATE ASSEMBLY, Complete
-
1807962A15 BRACKET ASSEMBLY, ShiftBRACKET ASSEMBLY, Shift
-
2865149A02 STUDSTUD
-
318-210711 COTTER PINCOTTER PIN
-
424-864907T SPRINGSPRING
-
510-865148 SHOULDER SCREW, (.312-18 x 1.843) Stainless SteelSHOULDER SCREW, (.312-18 x 1.843) Stainless Steel
-
618-328571 COTTER PINCOTTER PIN
-
724-98880 SPRINGSPRING
-
812-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
912-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
10865433A02 LEVER ASSEMBLY, Actuator, With Cotter PinLEVER ASSEMBLY, Actuator, With Cotter Pin
-
1113898T06 LEVER ASSEMBLY, ShiftLEVER ASSEMBLY, Shift
-
1212-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1316-865393A02 STUD KIT, (.250-28 x 1.90), With Cotter PinSTUD KIT, (.250-28 x 1.90), With Cotter Pin
-
1418-210711 COTTER PINCOTTER PIN
-
1511-63341 TEE NUTTEE NUT
-
1617-814001 PIN, ClevisPIN, Clevis
-
1718-210711 COTTER PINCOTTER PIN
-
1810-865148 SHOULDER SCREW, (.312-18 x 1.843) Stainless SteelSHOULDER SCREW, (.312-18 x 1.843) Stainless Steel
-
1987-808009T10 SWITCH ASSEMBLY, Shift InteruptSWITCH ASSEMBLY, Shift Interupt
-
2010-865147T01 SCREW, (#6-32 x .750) Stainless SteelSCREW, (#6-32 x .750) Stainless Steel
-
2187-808009T11 SWITCH ASSEMBLY, Gear IndicatorSWITCH ASSEMBLY, Gear Indicator
-
2210-865147T01 SCREW, (#6-32 x .750) Stainless SteelSCREW, (#6-32 x .750) Stainless Steel
-
23813995A04 GUIDE ASSEMBLY, SpringGUIDE ASSEMBLY, Spring
-
2410-8175051 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
2556762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
