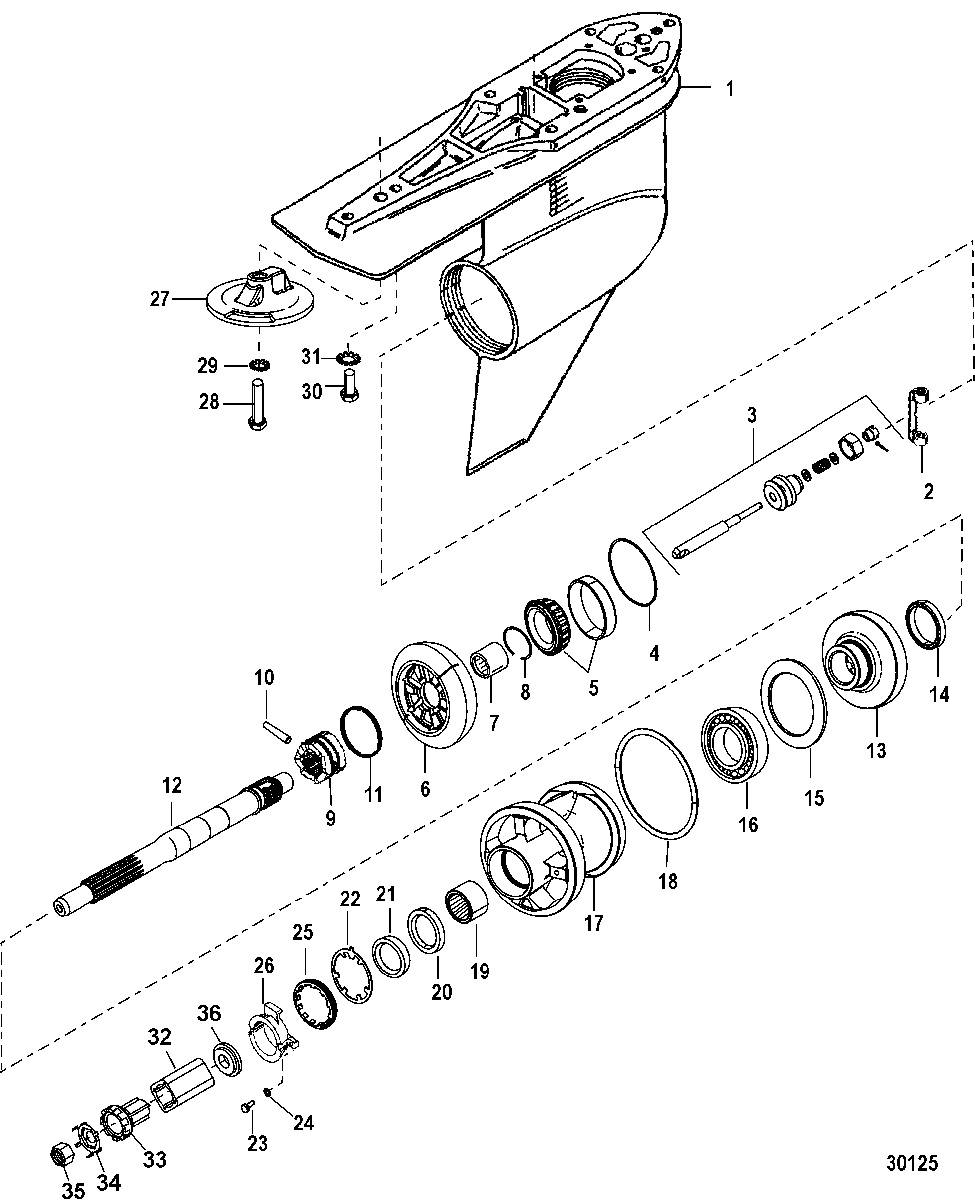

Gear Housing, Propeller Shaft для Mercruiser - VAZER DRIVE 0W995000 & Up
-
№АртикулНазвание
-
-1623-815822V03 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
11623-815822V01 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
28M2009865 CRANK, ShiftCRANK, Shift
-
38M2001690 SPOOL ASSEMBLYSPOOL ASSEMBLY
-
415-8M0063266 SHIM SETSHIM SET
-
531-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
643-898440A03 GEAR KIT, Forward/PinionGEAR KIT, Forward/Pinion
-
731-30895T BEARING, NeedleBEARING, Needle
-
853-856823 RING, RetainingRING, Retaining
-
952-853594T CLUTCHCLUTCH
-
1017-8M0100263 PIN, CrossPIN, Cross
-
1124-30893 SPRINGSPRING
-
1244-8M0140445 PROPELLER SHAFTPROPELLER SHAFT
-
1343-898441A01 GEAR ASSEMBLY, ReverseGEAR ASSEMBLY, Reverse
-
1423-824108 SPACERSPACER
-
15681001 RING, ThrustRING, Thrust
-
1630-860081 BEARINGBEARING
-
17818763A10 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
1825-31534 O-RINGO-RING
-
1931-30956T BEARING, NeedleBEARING, Needle
-
2026-14077 SEAL, OilSEAL, Oil
-
2126-12224 SEAL, Fish Line CuttingSEAL, Fish Line Cutting
-
2297-806105Q1 ANODE KITANODE KIT
-
2310-806290 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
2413-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
2514-18323 TAB WASHERTAB WASHER
-
268M2000347 RETAINERRETAINER
-
2797-762144 ANODEANODE
-
2810-866783 SCREWSCREW
-
2913-806210 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
3010-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
3113-35479 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
32835290Q1 DRIVE SLEEVEDRIVE SLEEVE
-
33826074Q1 ADAPTOR, Drive SleeveADAPTOR, Drive Sleeve
-
3414-816629Q TAB WASHERTAB WASHER
-
3511-52707Q1 PROP NUT KIT, (.750-16)PROP NUT KIT, (.750-16)
-
3612-835467Q01 THRUST WASHER KITTHRUST WASHER KIT
-
-26-816575A07 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
