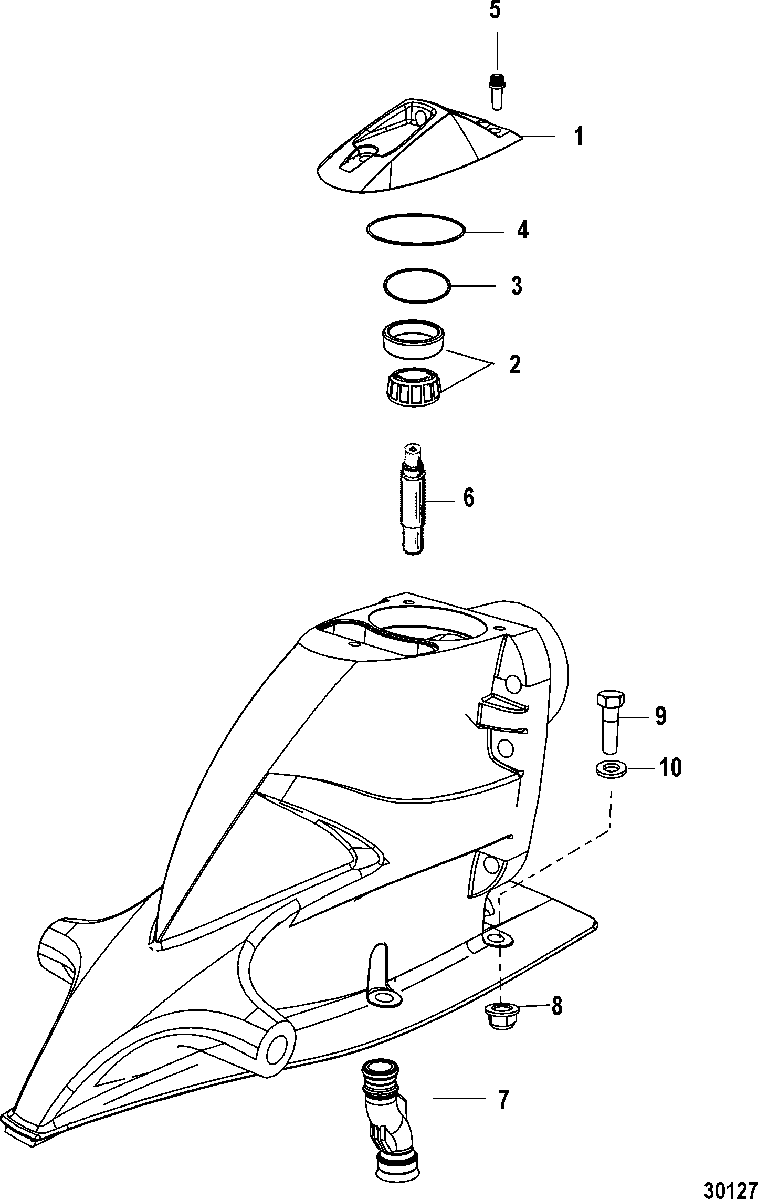

Driveshaft Housing and Driveshaft для Mercruiser - VAZER DRIVE 0W995000 & Up

  • №
    Артикул
    Название
  • -
    1500-866447A06 HOUSING ASSEMBLY, Driveshaft - Complete (2.58:1)
    HOUSING ASSEMBLY, Driveshaft - Complete (2.58:1)
  • -
    1500-866447A08 HOUSING ASSEMBLY, Driveshaft - Complete (2.77:1)
    HOUSING ASSEMBLY, Driveshaft - Complete (2.77:1)
  • -
    1500-866447A04 HOUSING, Driveshaft - Basic
    HOUSING, Driveshaft - Basic
  • 1
    866765A02 COVER ASSEMBLY
    COVER ASSEMBLY
  • 2
    31-32575T1 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 3
    15-32563A1 SHIM SET
    SHIM SET
  • 4
    25-32546 O-RING
    O-RING
  • 5
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 6
    45-557961 DRIVESHAFT, Upper
    DRIVESHAFT, Upper
  • 7
    8M2000892 TUBE ASSEMBLY, Water
    TUBE ASSEMBLY, Water
  • 8
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
  • 9
    10-816601 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 10
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • -
    26-88397A02 SEAL KIT, Driveshaft Housing
    SEAL KIT, Driveshaft Housing
  • -
    NSS NOT SOLD SEPARATE, Decal Set
    NOT SOLD SEPARATE, Decal Set
