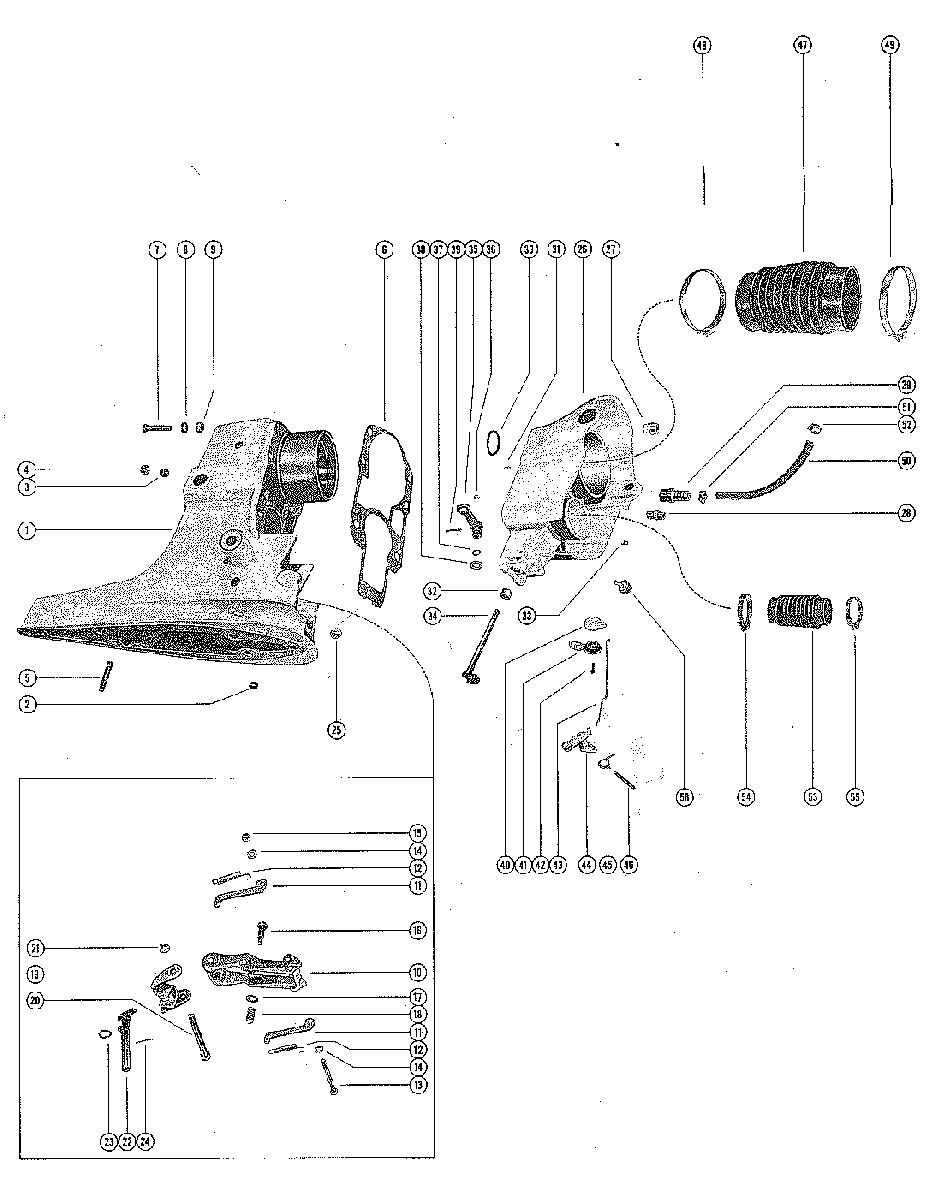

DRIVE SHAFT HOUSING ASSEMBLY AND BELL HOUSING ASSEMBLY для Mercruiser - I 1963 1534570 THRU 1684187
-
№АртикулНазвание
-
11547-4547A1 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
11547-4547A1 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
11547-4547A1 DRIVE SHAFT HOUDING ASSEMBLYDRIVE SHAFT HOUDING ASSEMBLY
-
223-32632 BUSHING, DRIVE SHAFT HOUSINGBUSHING, DRIVE SHAFT HOUSING
-
322-31704 PLUG, PIPE - DRIVE SHAFT HOUSING (WATER POCKET)PLUG, PIPE - DRIVE SHAFT HOUSING (WATER POCKET)
-
419-32652 WELCH PLUG, DRIVE SHAFT HOUSINGWELCH PLUG, DRIVE SHAFT HOUSING
-
516-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
627-32599A1 GASKET, DRIVE SHAFT HOUSING TO BELL HOUSINGGASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
-
627-33507A1 GASKET, DRIVE SHAFT HOUSING TO BELL HOUSINGGASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
-
627-33796 GASKET, DRIVE SHAFT HOUSING TO BELL HOUSINGGASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
-
710-8M2021674 SCREW, DRIVE SHAFT HOUSING TO BELL HOUSINGSCREW, DRIVE SHAFT HOUSING TO BELL HOUSING
-
710-33811 SCREW, DRIVE SHAFT HOUSING TO BELL HOUSING
NOTE) B-10-33811 SCREW (6) ARE INCLUDED WITH B-3379A1 BELL HOUSING ASSEMBLY.SCREW, DRIVE SHAFT HOUSING TO BELL HOUSING
NOTE) B-10-33811 SCREW (6) ARE INCLUDED WITH B-3379A1 BELL HOUSING ASSEMBLY. -
812-32648 WASHER, DRIVE SHAFT HOUSING TO BELL HOUSING SCREW
SERIAL 00000000-01536617WASHER, DRIVE SHAFT HOUSING TO BELL HOUSING SCREW
SERIAL 00000000-01536617 -
812-34567 WASHER, DRIVE SHAFT HOUSING TO BELL HOUSING SCREW
SERIAL 01536618-01684187WASHER, DRIVE SHAFT HOUSING TO BELL HOUSING SCREW
SERIAL 01536618-01684187 -
911-34933 NUT, DRIVE SHAFT HOUSING TO BELL HOUSING SCREWNUT, DRIVE SHAFT HOUSING TO BELL HOUSING SCREW
-
1037829A2 ARM, REVERSE HOOK - DRIVE SHAFT HOUSINGARM, REVERSE HOOK - DRIVE SHAFT HOUSING
-
1132520 HOOK, REVERSEHOOK, REVERSE
-
1224-33080 SPRING, TENSION - REVERSE HOOK TO REVERSE HOOK ARM
SERIAL 00000000-01537069SPRING, TENSION - REVERSE HOOK TO REVERSE HOOK ARM
SERIAL 00000000-01537069 -
1224-33761 SPRING, TENSION - REVERSE HOOK TO REVERSE HOOK ARM
SERIAL 01537070-01684187SPRING, TENSION - REVERSE HOOK TO REVERSE HOOK ARM
SERIAL 01537070-01684187 -
1310-32527 SCREW, REVERSE HOOKS TO REVERSE HOOK ARMSCREW, REVERSE HOOKS TO REVERSE HOOK ARM
-
1412-29245 WASHER, REVERSE HOOKS TO REVERSE HOOK ARM SCREWWASHER, REVERSE HOOKS TO REVERSE HOOK ARM SCREW
-
1511-826709109 NUT, REVERSE HOOKS TO REVERSE HOOK ARM SCREW
SERIAL 00000000-01537143NUT, REVERSE HOOKS TO REVERSE HOOK ARM SCREW
SERIAL 00000000-01537143 -
1511-826709109 NUT, REVERSE HOOKS TO REVERSE HOOK ARM SCREW
SERIAL 01537144-01684187NUT, REVERSE HOOKS TO REVERSE HOOK ARM SCREW
SERIAL 01537144-01684187 -
1610-32694 SCREW, REVERSE HOOK ARM TO DRIVE HOUSINGSCREW, REVERSE HOOK ARM TO DRIVE HOUSING
-
1712-25909 WASHER, REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCREW
SERIAL 00000000-01537143WASHER, REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCREW
SERIAL 00000000-01537143 -
1712-34016 WASHER, REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCREW
SERIAL 01537144-01684187WASHER, REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCREW
SERIAL 01537144-01684187 -
1824-32659 SPRING,TENSION-REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCREWSPRING,TENSION-REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCREW
-
1932588A1 STOP ASSEMBLY, REVERSE HOOK ARMSTOP ASSEMBLY, REVERSE HOOK ARM
-
2010-32524 SCREW, REVERSE HOOK ARM STOP TO REVERSE HOOK ARMSCREW, REVERSE HOOK ARM STOP TO REVERSE HOOK ARM
-
2111-8M0042636 NUT, REVERSE HOOK ARM STOP TO REVERSE HOOK ARM SCREW
SERIAL 00000000-01537143NUT, REVERSE HOOK ARM STOP TO REVERSE HOOK ARM SCREW
SERIAL 00000000-01537143 -
2111-33826 NUT, REVERSE HOOK ARM STOP TO REVERSE HOOK ARM SCREW
SERIAL 01537144-01684187NUT, REVERSE HOOK ARM STOP TO REVERSE HOOK ARM SCREW
SERIAL 01537144-01684187 -
2232628T SHAFT, SHIFT - INTERMEDIATESHAFT, SHIFT - INTERMEDIATE
-
2312-32666 WASHER, INTERMEDIATE SHIFT SHAFTWASHER, INTERMEDIATE SHIFT SHAFT
-
2418-32665 COTTER PIN, INTERMEDIATE SHIFT SHAFT RETAININGCOTTER PIN, INTERMEDIATE SHIFT SHAFT RETAINING
-
2511-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
-
2634140A1 BELL HOUSING ASSEMBLYBELL HOUSING ASSEMBLY
-
2652384A1 BELL HOUSING ASSEMBLYBELL HOUSING ASSEMBLY
-
2652384A1 BELL HOUSING ASSEMBLYBELL HOUSING ASSEMBLY
-
2711-32522 NUT, SPLINED - DRIVE SHAFT HOUSING TO BELL HOUSING SCREWNUT, SPLINED - DRIVE SHAFT HOUSING TO BELL HOUSING SCREW
-
2822-32125 CONNECTOR, SHIFT ACTUATING CABLE - BELL HOUSINGCONNECTOR, SHIFT ACTUATING CABLE - BELL HOUSING
-
2922-33066 CONNECTOR, WATER HOSE TO BELL HOUSINGCONNECTOR, WATER HOSE TO BELL HOUSING
-
3025-33504 "O" RING, BELL HOUSING"O" RING, BELL HOUSING
-
--27-32599A1 GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
SEE REFERENCE #6GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
SEE REFERENCE #6 -
--27-33507A1 GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
SEE REFERENCE #6GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
SEE REFERENCE #6 -
--27-33796 GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
SEE REFERENCE #6GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
SEE REFERENCE #6 -
3117-35166 ,PIN, DOWEL - BELL HOUSING TO DRIVE SHAFT HOUSING,PIN, DOWEL - BELL HOUSING TO DRIVE SHAFT HOUSING
Производитель Mercury-Mercruiser -
3223-814308 BUSHING, UPPER SHIFT SHAFT - BELL HOUSINGBUSHING, UPPER SHIFT SHAFT - BELL HOUSING
-
3223-814308 BUSHING, UPPER SHIFT SHAFT - BELL HOUSINGBUSHING, UPPER SHIFT SHAFT - BELL HOUSING
-
3310-25612 SCREW, DRIVE - BELL HOUSING FLANGESCREW, DRIVE - BELL HOUSING FLANGE
-
3436097A3 SHAFT ASSEMBLY, SHIFT - UPPERSHAFT ASSEMBLY, SHIFT - UPPER
-
3536097A3 LEVER ASSEMBLY, UPPER SHIFT SHAFT
SERIAL 00000000-01536976LEVER ASSEMBLY, UPPER SHIFT SHAFT
SERIAL 00000000-01536976 -
3536097A3 LEVER ASSEMBLY, UPPER SHIFT SHAFT
SERIAL 01536977-01684187LEVER ASSEMBLY, UPPER SHIFT SHAFT
SERIAL 01536977-01684187 -
3619-32525 WELCH PLUG, UPPER SHIFT SHAFT LEVERWELCH PLUG, UPPER SHIFT SHAFT LEVER
-
3725-32509 "O" RING, UPPER SHIFT SHAFT LEVER SEALING"O" RING, UPPER SHIFT SHAFT LEVER SEALING
-
3812-32510 WASHER, UPPER SHIFT SHAFT LEVERWASHER, UPPER SHIFT SHAFT LEVER
-
3918-328571 COTTER PIN, UPPER SHIFT SHAFT TO UPPERN SHIFT SHAFT LEVERCOTTER PIN, UPPER SHIFT SHAFT TO UPPERN SHIFT SHAFT LEVER
-
4032625 CRANK, BELL - REVERSE HOOK RELEASE LINK RODCRANK, BELL - REVERSE HOOK RELEASE LINK ROD
-
4132626 HANDLE, REVERSE HOOK RELEASE - BELL HOUSINGHANDLE, REVERSE HOOK RELEASE - BELL HOUSING
-
4210-32651 SCREW, BELL CRANK AND HANDLE TO BELL HOUSINGSCREW, BELL CRANK AND HANDLE TO BELL HOUSING
-
4332745 LINK ROD REVERSE HOOK RELEASE HANDLE TO REVERSE HOOK RELEASELINK ROD REVERSE HOOK RELEASE HANDLE TO REVERSE HOOK RELEASE
-
4432629A1 LEVER ASSEMBLY, REVERSE HOOK RELEASE - BELL HOUSINGLEVER ASSEMBLY, REVERSE HOOK RELEASE - BELL HOUSING
-
4524-36102 SPRING, TORSION - REVERSE HOOK RELEASE LEVERSPRING, TORSION - REVERSE HOOK RELEASE LEVER
-
4617-20302 PIN, PIVOT - REVERSE HOOK RELEASE LEVER TO BELL HOUSINGPIN, PIVOT - REVERSE HOOK RELEASE LEVER TO BELL HOUSING
-
4736222A2 BELLOWS, UNIVERSAL JOINT COVERINGBELLOWS, UNIVERSAL JOINT COVERING
-
4854-815504372 CLAMP, UNIVERSAL JOINT BELLOWS TO BELL HOUSING 1CLAMP, UNIVERSAL JOINT BELLOWS TO BELL HOUSING 1
-
4954-815504372 CLAMP, UNIVERSAL JOINT BELLOWS TO GIMBAL HOUSINGCLAMP, UNIVERSAL JOINT BELLOWS TO GIMBAL HOUSING
-
5032-32461 HOSE, WATER - BELL HOUSING TO GIMBAL HOUSINGHOSE, WATER - BELL HOUSING TO GIMBAL HOUSING
-
5154-815504310 CLAMP, WATER HOSE TO BELL HOUSING CONNECTORCLAMP, WATER HOSE TO BELL HOUSING CONNECTOR
-
5254-815504310 CLAMP, WATER HOSE TO GIMBAL HOUSING WATER TUBECLAMP, WATER HOSE TO GIMBAL HOUSING WATER TUBE
-
5318654A1 BELLOWS, EXHAUST - BELL HOUSING TO GIMBAL HOUSINGBELLOWS, EXHAUST - BELL HOUSING TO GIMBAL HOUSING
-
5454-815504348 CLAMP, EXHAUST HOSE TO BELL HOUSINGCLAMP, EXHAUST HOSE TO BELL HOUSING
-
5554-815504348 CLAMP, EXHAUST HOSE TO GIMBAL HOUSINGCLAMP, EXHAUST HOSE TO GIMBAL HOUSING
-
5631014 BUMPER, BELL HOUSINGBUMPER, BELL HOUSING
