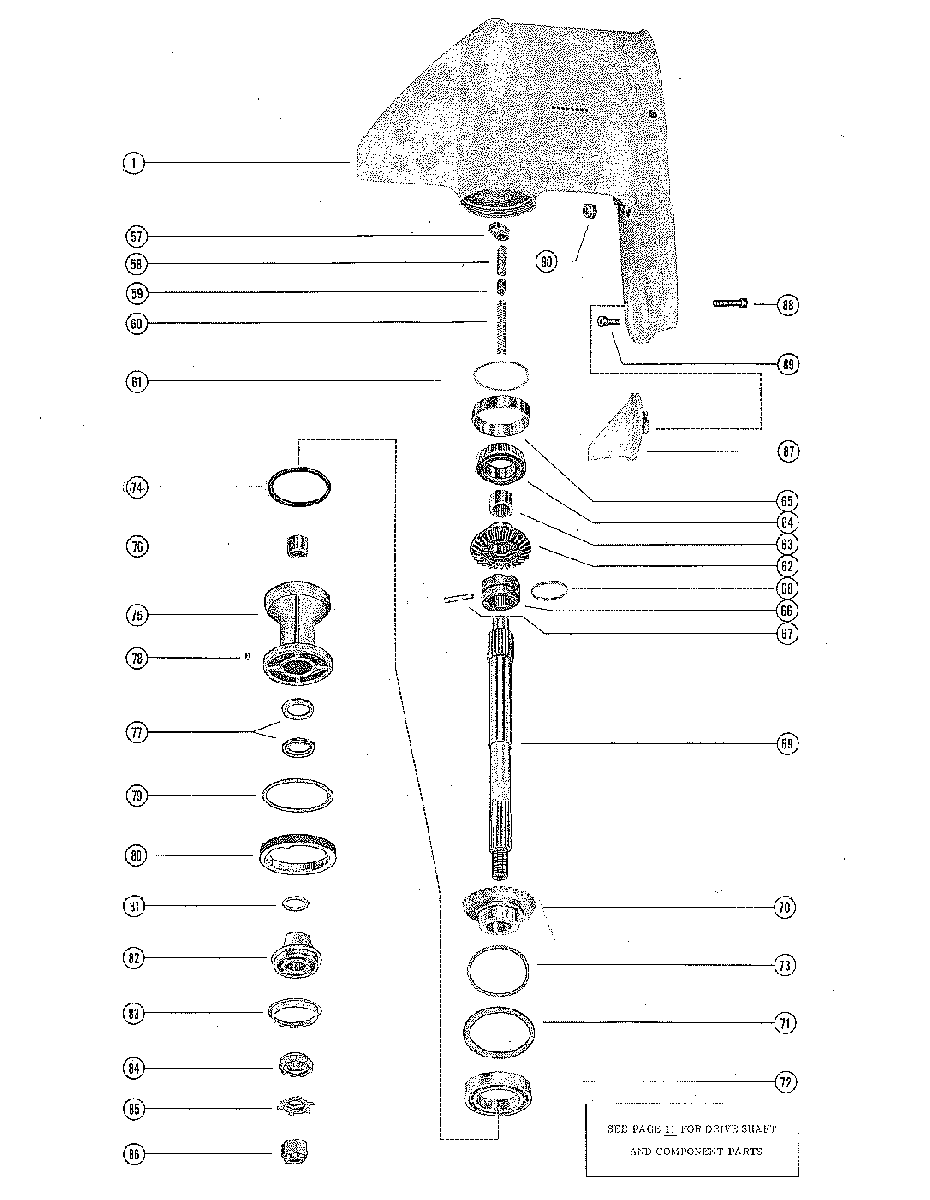

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercruiser - I 1963 1534570 THRU 1684187

  • №
    Артикул
    Название
  • -
    1623-2078A3 GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • -
    1623-20748A2 GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • -
    1623-2078A3 GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • 1
    1623-2022A1 GEAR HOUSING ASSEMBLY SEE PAGE 11 FOR PARTS BREAKDOWN
    GEAR HOUSING ASSEMBLY SEE PAGE 11 FOR PARTS BREAKDOWN
  • 1
    1623-2078A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 57
    760394 CAM, SHAFT
    CAM, SHAFT
  • 58
    30625 FOLLOWER, CAM
    FOLLOWER, CAM
  • 59
    30624 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 60
    24-30622 SPRING, COMPRESSION - CAM FOLLWER
    SPRING, COMPRESSION - CAM FOLLWER
  • 61
    15-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)
    SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)
  • 62
    43-53100A3 FOWARD GEAR ASSEMBLY
    FOWARD GEAR ASSEMBLY
  • 62
    43-55424A2 FOWARD GEAR ASSEMBLY
    FOWARD GEAR ASSEMBLY
  • 63
    31-30895T BEARING, ROLLER - FOWARD GEAR
    BEARING, ROLLER - FOWARD GEAR
  • 64
    31-30894A1 TAPERED ROLLER BEARING ASEMBLY
    TAPERED ROLLER BEARING ASEMBLY
  • 65
    31-31092 CUP, TAPERED ROLLER BEARING
    CUP, TAPERED ROLLER BEARING
  • 66
    52-822539T RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 67
    17-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 68
    24-30893 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 69
    44-47900A2 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 70
    43-31887 REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 70
    43-55428 REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 71
    12-71143A1 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
    WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
  • 72
    30-31265 BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
  • 73
    15-29955A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
    SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
  • 74
    25-29976 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 75
    31284T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 76
    31-30956T BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 77
    26-76868 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 78
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 79
    12-29957 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 80
    52699 OVER, GEAR HOUSING
    OVER, GEAR HOUSING
  • 81
    12-31013 WASHER, THRUST - BEARING CARRIER
    WASHER, THRUST - BEARING CARRIER
  • 82
    30581A1 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 83
    12-29590 WASHER, CUPPED - THRUST HUB
    WASHER, CUPPED - THRUST HUB
  • 84
    12-31211Q03 WASHER, SPLINED - PROPELLER SHAFT
    WASHER, SPLINED - PROPELLER SHAFT
  • 85
    14-816629Q TAB WASHER, PROPELLER HUT
    TAB WASHER, PROPELLER HUT
  • 86
    11-29594 NUT, PROPELLER
    NUT, PROPELLER
  • 87
    34127T2 TRIM TAB, GEAR HOUSING
    TRIM TAB, GEAR HOUSING
  • 88
    10-32470 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
  • 89
    10-30206 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
  • 90
    11-34933 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
