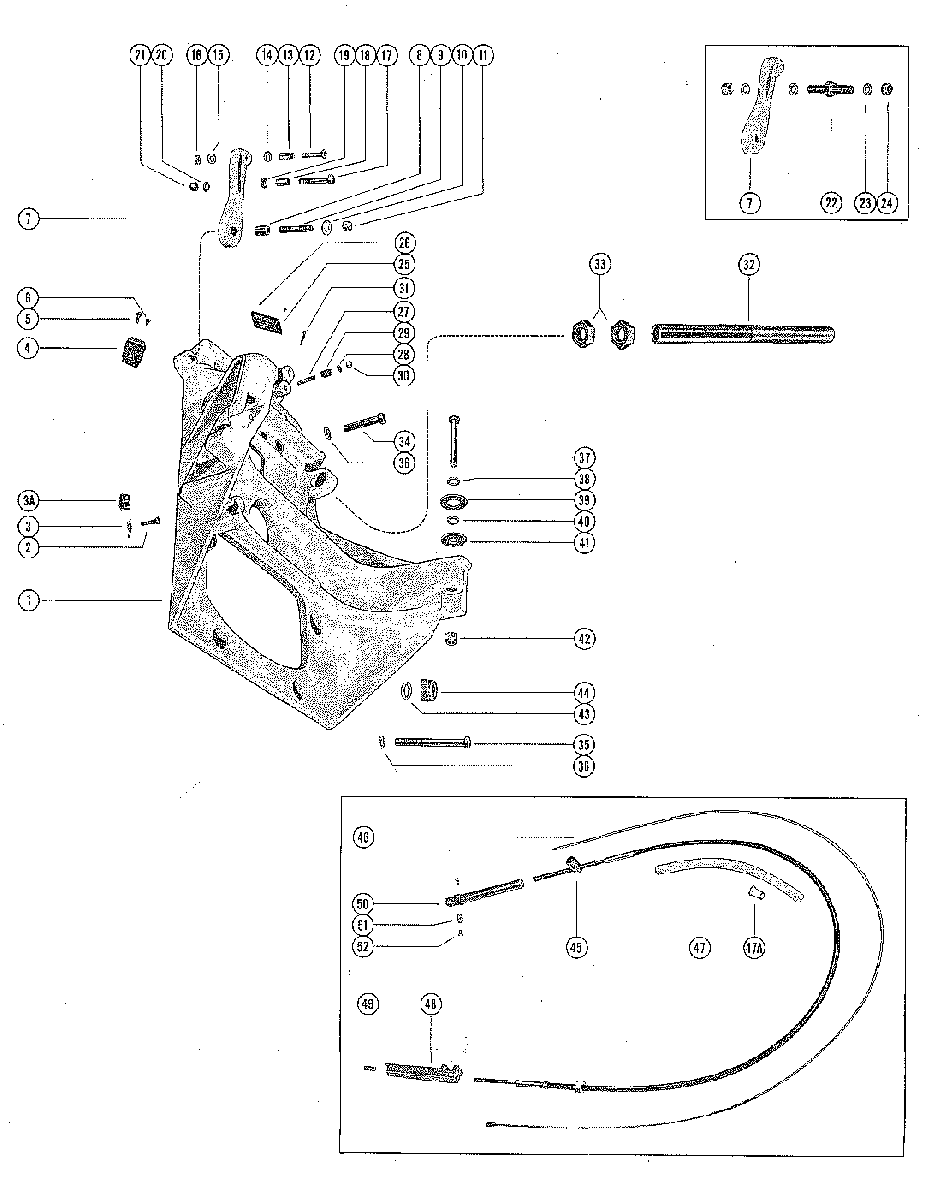

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - I 1963 1534570 THRU 1684187

  • №
    Артикул
    Название
  • 1
    32498 PLATE, TRANSOM
    SERIAL 00000000-01641940
    PLATE, TRANSOM
    SERIAL 00000000-01641940
  • 1
    37278 PLATE, TRANSOM
    SERIAL 00161941-01684187
    PLATE, TRANSOM
    SERIAL 00161941-01684187
  • 2
    10-32737 SCREW, SHIFT ACTUATING CABLE TO TRANSOM PLATE
    SERIAL 00000000-01537369
    SCREW, SHIFT ACTUATING CABLE TO TRANSOM PLATE
    SERIAL 00000000-01537369
  • 3
    14-43589 TAB WASHER, SHIFT ACTUATING CABLE TO TRANSOM PLATE
    SERIAL 00000000-01537369
    TAB WASHER, SHIFT ACTUATING CABLE TO TRANSOM PLATE
    SERIAL 00000000-01537369
  • 2
    10-26668 SCREW, SHIFT ACTUATING CABLE CLAMP TO TRANSOM PLATE
    SERIAL 01562900-01684187
    SCREW, SHIFT ACTUATING CABLE CLAMP TO TRANSOM PLATE
    SERIAL 01562900-01684187
  • 3A
    54-34050 CLAMP, SHIFT ACTUATING CABLE TO TRANSOM PLATE
    SERIAL 01562900-01684187
    CLAMP, SHIFT ACTUATING CABLE TO TRANSOM PLATE
    SERIAL 01562900-01684187
  • 4
    32169 TERMINAL BLOCK, TRANSOM PLATE
    TERMINAL BLOCK, TRANSOM PLATE
  • 4
    30212 TERMINAL BLOCK, TRANSOM PLATE (NOT AS SHOWN)
    TERMINAL BLOCK, TRANSOM PLATE (NOT AS SHOWN)
  • 5
    10-33152 SCREW TERMINAL BLOCK TO TRANSOM PLATE
    SCREW TERMINAL BLOCK TO TRANSOM PLATE
  • 6
    10-28739 SCREW, TILT STOP SWITCH LEADS TO TERMINAL BLOCK
    SCREW, TILT STOP SWITCH LEADS TO TERMINAL BLOCK
  • 6
    10-62568 SCREW, TILT STOP SWITCH LEADS TO TERMINAL BLOCK
    SCREW, TILT STOP SWITCH LEADS TO TERMINAL BLOCK
  • 7
    32585 LEVER, SHIFT CONTROL-TRANSOM PLATE
    LEVER, SHIFT CONTROL-TRANSOM PLATE
  • 8
    23-31758 SPACER, SHIFT CONTROL LEVER STUD
    SPACER, SHIFT CONTROL LEVER STUD
  • 9
    16-32698 STUD, SHIFT CONTROL LEVER TO TRANSOM PLATE
    STUD, SHIFT CONTROL LEVER TO TRANSOM PLATE
  • 10
    12-26825 WASHER, SHIFT CONTROL LEVER STUD
    WASHER, SHIFT CONTROL LEVER STUD
  • 11
    11-82670911 NUT, SHIFT CONTROL LEVER TO TRANSOM PLATE STUD
    NUT, SHIFT CONTROL LEVER TO TRANSOM PLATE STUD
  • 12
    10-22659 SCREW, SHIFT CABLE ASSEMBLY TO SHIFT CONTROL LEVER
    SCREW, SHIFT CABLE ASSEMBLY TO SHIFT CONTROL LEVER
  • 13
    23-31866 SPACER, SHIFT CABLE ASSEMBLY SCREW
    SPACER, SHIFT CABLE ASSEMBLY SCREW
  • 14
    12-39143 WASHER, SHIFT CABLE ASSEMBLY SCREW
    WASHER, SHIFT CABLE ASSEMBLY SCREW
  • 14
    12-39143 WASHER, SHIFT CABLE ASSEMBLY SCREW
    WASHER, SHIFT CABLE ASSEMBLY SCREW
  • 15
    12-29245 WASHER, SHIFT CABLE ASSEMBLY SCREW
    WASHER, SHIFT CABLE ASSEMBLY SCREW
  • 16
    11-8267089 NUT, SHIFT CABLE ASSEMBLY TO SHIFT CONTROL LEVER SCREW
    NUT, SHIFT CABLE ASSEMBLY TO SHIFT CONTROL LEVER SCREW
  • 17
    10-22659 SCREW, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
    SERIAL 00000000-01537369
    SCREW, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
    SERIAL 00000000-01537369
  • 18
    23-31866 SPACER, SHIFT ACTUATING CABLE SCREW
    SERIAL 00000000-01537369
    SPACER, SHIFT ACTUATING CABLE SCREW
    SERIAL 00000000-01537369
  • 19
    12-39143 WASHER, SHIFT ACTUATING CABLE SCREW
    SERIAL 00000000-01537369
    WASHER, SHIFT ACTUATING CABLE SCREW
    SERIAL 00000000-01537369
  • 19
    12-39143 WASHER, SHIFT ACTUATING CABLE SCREW
    SERIAL 00000000-01537369
    WASHER, SHIFT ACTUATING CABLE SCREW
    SERIAL 00000000-01537369
  • 20
    12-29245 WASHER, SHIFT ACTUATING CABLE SCREW
    SERIAL 00000000-01537369
    WASHER, SHIFT ACTUATING CABLE SCREW
    SERIAL 00000000-01537369
  • 21
    11-8267089 NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER SCREW
    SERIAL 00000000-01537369
    NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER SCREW
    SERIAL 00000000-01537369
  • 22
    16-34069 STUD, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
    SERIAL 01562900-01684187
    STUD, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
    SERIAL 01562900-01684187
  • 23
    12-39143 WASHER, SHIFT ACTUATING CABLE STUD
    SERIAL 01562900-01684187
    WASHER, SHIFT ACTUATING CABLE STUD
    SERIAL 01562900-01684187
  • 24
    11-8267089 NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
    SERIAL 01562900-01684187
    NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
    SERIAL 01562900-01684187
  • 25
    38-32738 NAME PLATE, TRANSOM PLATE
    NAME PLATE, TRANSOM PLATE
  • 26
    10-22290 SCREW, DRIVE- NAME PLATE TO TRANSOM PLATE
    SCREW, DRIVE- NAME PLATE TO TRANSOM PLATE
  • 27
    16-20075 STUD, SHIFT ACTUATING CABLE END GUIDE TO TRANSOM PLATE
    SERIAL 00000000-01537369
    STUD, SHIFT ACTUATING CABLE END GUIDE TO TRANSOM PLATE
    SERIAL 00000000-01537369
  • 27
    16-20353 STUD, SHIFT ACTUATING CABLE END GUIDE TO TRANSOM PLATE
    SERIAL 01562900-01641940
    STUD, SHIFT ACTUATING CABLE END GUIDE TO TRANSOM PLATE
    SERIAL 01562900-01641940
  • 28
    12-29245 WASHER, SHIFT ACTUATING CABLE END GUIDE STUD
    SERIAL 00000000-01537369
    WASHER, SHIFT ACTUATING CABLE END GUIDE STUD
    SERIAL 00000000-01537369
  • 28
    12-39143 WASHER, SHIFT ACTUATING ABLE END GUIDE STUD
    SERIAL 01562900-01641940
    WASHER, SHIFT ACTUATING ABLE END GUIDE STUD
    SERIAL 01562900-01641940
  • 29
    23-31866 SPACER, SHIFT ACTUATING CABLE END GUIDE STUD
    SERIAL 01562900-01641940
    SPACER, SHIFT ACTUATING CABLE END GUIDE STUD
    SERIAL 01562900-01641940
  • 30
    11-8267089 NUT, SHIFT ACTUATING CABLE END GUIDE STUD
    SERIAL 00000000-01641940
    NUT, SHIFT ACTUATING CABLE END GUIDE STUD
    SERIAL 00000000-01641940
  • 31
    18-328571 COTTER PIN, SHIFT ACTUATING CABLE TO TRANSOM
    SERIAL 01641941-01684187
    COTTER PIN, SHIFT ACTUATING CABLE TO TRANSOM
    SERIAL 01641941-01684187
  • 32
    71565A2 TUBE, STEERING CABLE GUIDE (7/8'OD)
    TUBE, STEERING CABLE GUIDE (7/8'OD)
  • 33
    11-8M0041651 NUT, JAM - STEERING CABLE GUIDE TUBE
    NUT, JAM - STEERING CABLE GUIDE TUBE
  • 34
    10-32695 SCREW, TRANSOM PLATE TO GIMBAL HOUSING (2 1/4")
    SCREW, TRANSOM PLATE TO GIMBAL HOUSING (2 1/4")
  • 35
    10-46964 SCREW, TRANSOM PLATE TO GIMBAL HOUSING (4 3/16")
    SCREW, TRANSOM PLATE TO GIMBAL HOUSING (4 3/16")
  • 36
    12-22248 WASHER, TRANSOM PLATE TO GIMBAL HOUSING SCREW
    WASHER, TRANSOM PLATE TO GIMBAL HOUSING SCREW
  • 37
    10-67757 SCREW, TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING
    SCREW, TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING
  • 38
    12-30119 WASHER, TRANSOM PLATE SCREW
    WASHER, TRANSOM PLATE SCREW
  • 39
    12-32638 WASHER, TRANSOM PLATE SCREW
    SERIAL 00000000-01536496
    WASHER, TRANSOM PLATE SCREW
    SERIAL 00000000-01536496
  • 39
    12-32834 WASHER, TRANSOM PLATE SCREW
    SERIAL 01536497-01684187
    WASHER, TRANSOM PLATE SCREW
    SERIAL 01536497-01684187
  • 40
    13-33734 LOCKWASHER, TRANSOM PLATE SCREW
    LOCKWASHER, TRANSOM PLATE SCREW
  • 41
    12-32757 WASHER, TRANSOM PLATE SCREW
    SERIAL 00000000-01536286
    WASHER, TRANSOM PLATE SCREW
    SERIAL 00000000-01536286
  • 42
    11-82671317 NUT, TRANSOM PLATE TO ENGINE FLYWHEEL SCREW
    NUT, TRANSOM PLATE TO ENGINE FLYWHEEL SCREW
  • 43
    12-22248 WASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLT
    SERIAL 00000000-01641940
    WASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLT
    SERIAL 00000000-01641940
  • 44
    11-34933 NUT, GIMBAL HOUSING TO TRANSOM PLATE BOLT
    SERIAL 00000000-01641940
    NUT, GIMBAL HOUSING TO TRANSOM PLATE BOLT
    SERIAL 00000000-01641940
  • 43
    12-21900 WASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLT
    SERIAL 01641941-01684187
    WASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLT
    SERIAL 01641941-01684187
  • 44
    11-34087 NUT, GIMBAL HOUSING TO TRANSOM PLATE BOLT
    SERIAL 01641941-01684187
    NUT, GIMBAL HOUSING TO TRANSOM PLATE BOLT
    SERIAL 01641941-01684187
  • 45
    34048A3 CABLE ASSEMBLY, SHIFT ACTUATING
    NOTE) B-32642 CABLE IS NO LONGER AVAILABLE. FOR REPLACEMENT, ORDER B-34048A1 CORE WIRE, USED WITH B-32642 CABLE , IS STILL AVAILABLE AND MAY BE ORDERED AS REPLACEMENT. SERIAL 00000000-01641940
    CABLE ASSEMBLY, SHIFT ACTUATING
    NOTE) B-32642 CABLE IS NO LONGER AVAILABLE. FOR REPLACEMENT, ORDER B-34048A1 CORE WIRE, USED WITH B-32642 CABLE , IS STILL AVAILABLE AND MAY BE ORDERED AS REPLACEMENT. SERIAL 00000000-01641940
  • 45
    73723A01 CABLE ASSEMBLY, SHIFT ACTUATING
    SERIAL 01562900-01684187
    CABLE ASSEMBLY, SHIFT ACTUATING
    SERIAL 01562900-01684187
  • 46
    38399A2 CORE WIRE AND ANCHOR ASSEMBLY, INNER SHIFT ACTUATING CABLE
    CORE WIRE AND ANCHOR ASSEMBLY, INNER SHIFT ACTUATING CABLE
  • 47
    32-32605 TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
    SERIAL 00000000-01537369
    TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
    SERIAL 00000000-01537369
  • 47
    14705 TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
    SERIAL 01562900-01684187
    TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
    SERIAL 01562900-01684187
  • 48
    36097A3 SHIFT ACTUATING CABLE
    SERIAL 00000000-01536976
    SHIFT ACTUATING CABLE
    SERIAL 00000000-01536976
  • 48
    865436A02 SLIDE, SHIFT ACTUATING CABLE
    SERIAL 01536977-01684187
    SLIDE, SHIFT ACTUATING CABLE
    SERIAL 01536977-01684187
  • 49
    10-31700 SCREW, SET - SHIFT ACTUATING CABLE TO SLIDE
    SCREW, SET - SHIFT ACTUATING CABLE TO SLIDE
  • 50
    43433 GUIDE, SHIFT ACTUATING CABLE END
    GUIDE, SHIFT ACTUATING CABLE END
  • 51
    20007 ANCHOR, SHIFT ACTUATING CABLE END GUIDE
    ANCHOR, SHIFT ACTUATING CABLE END GUIDE
  • 52
    10-20518 SCREW, SET - ANCHOR TO SHIFT ACTUATING CABLE END GUIDE
    SCREW, SET - ANCHOR TO SHIFT ACTUATING CABLE END GUIDE
  • --
    91-32555 ROD, ALIGNMENT - TRANSOM PLATE TO ENGINE
    ROD, ALIGNMENT - TRANSOM PLATE TO ENGINE
