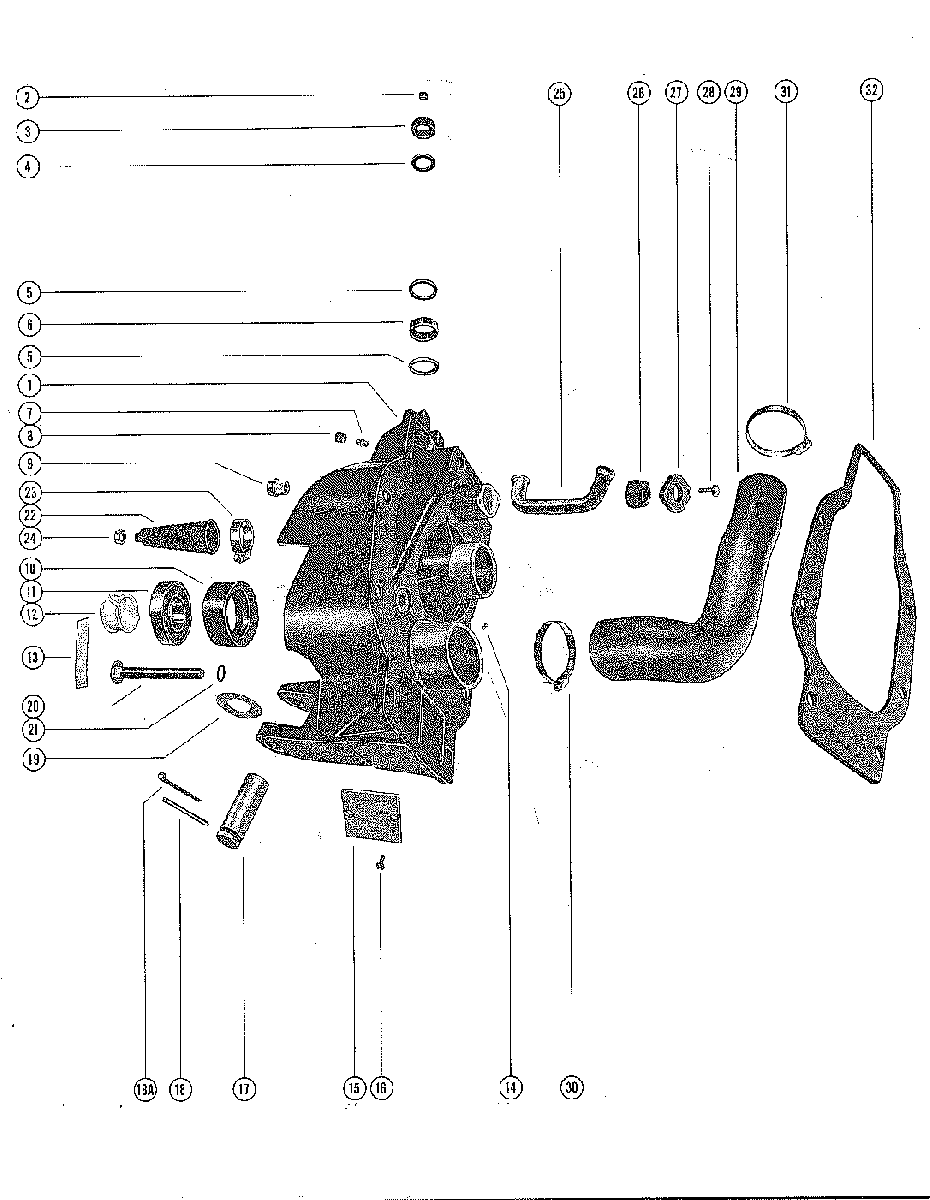

GIMBAL HOUSING ASSEMBLY AND EXHAUST HOSE для Mercruiser - I 1963 1534570 THRU 1684187

  • №
    Артикул
    Название
  • 1
    57751A1 GIMBAL HOUSING ASSEMBLY
    SERIAL 00000000-01642279
    GIMBAL HOUSING ASSEMBLY
    SERIAL 00000000-01642279
  • 1
    57751A1 GIMBAL HOUSING ASSEMBLY
    SERIAL 01642280-01684187
    GIMBAL HOUSING ASSEMBLY
    SERIAL 01642280-01684187
  • 2
    22-390721 PLUG, PIPE - GIMBAL HOUSING
    PLUG, PIPE - GIMBAL HOUSING
  • 3
    31-32535 BEARING, ROLLER - GIMBAL HOUSING (UPPER)
    BEARING, ROLLER - GIMBAL HOUSING (UPPER)
  • 4
    26-32540 OIL SEAL, UPPER GIMBAL HOUSING ROLLER BEARING
    OIL SEAL, UPPER GIMBAL HOUSING ROLLER BEARING
  • 5
    26-32911 OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
    OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
  • 6
    31-32536 BEARING, ROLLER - GIMBAL HOUSING (LOWER)
    BEARING, ROLLER - GIMBAL HOUSING (LOWER)
  • 7
    22-74036 FITTING, GREASE - GIMBAL HOUSING
    FITTING, GREASE - GIMBAL HOUSING
  • 8
    19-77633Q LUBRICAP, GIMBAL HOUSING GREASE FITTING
    LUBRICAP, GIMBAL HOUSING GREASE FITTING
  • 9
    11-32522 NUT, SPILINED - TRANSOM PLATE TO GIMBAL HOUSING SCREW
    NUT, SPILINED - TRANSOM PLATE TO GIMBAL HOUSING SCREW
  • 10
    31578 MOUNT, RUBBER - GIMBAL HOUSING BALL BEARING
    MOUNT, RUBBER - GIMBAL HOUSING BALL BEARING
  • 11
    30-32537T BEARING, BALL - GIMBAL HOUSING RUBBER MOUNT
    BEARING, BALL - GIMBAL HOUSING RUBBER MOUNT
  • 12
    23-32677 BUSHING, NYLON - GIMBAL HOUSING BALL BEARING
    BUSHING, NYLON - GIMBAL HOUSING BALL BEARING
  • 13
    15-33195010 SHIM, GIMBAL HOUSING BALL BEARING (.0010)
    SHIM, GIMBAL HOUSING BALL BEARING (.0010)
  • 13
    15-33195015 SHIM, GIMBAL HOUSING BALL BEARING (.0015)
    SHIM, GIMBAL HOUSING BALL BEARING (.0015)
  • 13
    15-33195020 SHIM, GIMBAL HOUSING BALL BEARING (.0020)
    SHIM, GIMBAL HOUSING BALL BEARING (.0020)
  • 14
    10-25612 SCREW, DRIVE - GIMBAL HOUSING EXHAUST FLANGE
    SCREW, DRIVE - GIMBAL HOUSING EXHAUST FLANGE
  • 15
    34762A1 PLATE ASSEMBLY, INHIBITOR - GIMBAL HOUSING
    PLATE ASSEMBLY, INHIBITOR - GIMBAL HOUSING
  • 16
    10-34763 SCREW, INHIBITOR PLATE TO GIMBAL HOUSING
    SCREW, INHIBITOR PLATE TO GIMBAL HOUSING
  • 17
    17-32508 PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
    PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
  • 18
    17-31769 PIN, RETAINING - LOWER SWIVEL PIN
    PIN, RETAINING - LOWER SWIVEL PIN
  • 18A
    18-34212 COTTER PIN, RETAINING - LOWER SWIVEL PIN
    COTTER PIN, RETAINING - LOWER SWIVEL PIN
  • 19
    12-32518 WASHER, GIMBAL HOUSING TO GIMBAL RING LOWER SWIVEL PIN
    WASHER, GIMBAL HOUSING TO GIMBAL RING LOWER SWIVEL PIN
  • 20
    10-32528 BOLT, HOUSING TO PLATE (3 3/4")
    SERIAL 00000000-01536914
    BOLT, HOUSING TO PLATE (3 3/4")
    SERIAL 00000000-01536914
  • 20
    10-33823 BOLT, HOUSING TO PLATE (4")
    SERIAL 01536915-01641940
    BOLT, HOUSING TO PLATE (4")
    SERIAL 01536915-01641940
  • 20
    10-43691 BOLT, HOUSING TO PLATE (3 3/4")
    SERIAL 01641941-01642279
    BOLT, HOUSING TO PLATE (3 3/4")
    SERIAL 01641941-01642279
  • 20
    10-43691 BOLT, HOUSING TO PLATE (4")
    2 SERIAL 01642280-01684187
    BOLT, HOUSING TO PLATE (4")
    2 SERIAL 01642280-01684187
  • 21
    25-32509 "O" RING, GIMBAL HOUSING BOLT
    SERIAL 00000000-01641940
    "O" RING, GIMBAL HOUSING BOLT
    SERIAL 00000000-01641940
  • 21
    12-32620 WASHER, GIMBAL HOUSING BOLT
    2 SERIAL 01641941-01684187
    WASHER, GIMBAL HOUSING BOLT
    2 SERIAL 01641941-01684187
  • 22
    74639A2 BELLOWS, SHIFT ACTUATING CABLE COVERING
    BELLOWS, SHIFT ACTUATING CABLE COVERING
  • 23
    54-815504320 CLAMP, CHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
    CLAMP, CHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
  • 24
    54-20386 CLAMP, ACTUAING CABLE BELLOWS TO SHIFT ACTUATING CABLE
    CLAMP, ACTUAING CABLE BELLOWS TO SHIFT ACTUATING CABLE
  • 25
    32-41672A01 TUBE, WATER - GIMBAL HOUSING
    TUBE, WATER - GIMBAL HOUSING
  • 26
    23-28055 BUSHING, RUBBER - WATER TUBE SEALING
    BUSHING, RUBBER - WATER TUBE SEALING
  • 27
    32517 COVER, WATER TUBE SEALING DBUSHING - GIMBAL HOUSING
    COVER, WATER TUBE SEALING DBUSHING - GIMBAL HOUSING
  • 28
    10-28635 SCREW, WATER TUBE SEALING COVER TO GIMBAL HOUSING
    SCREW, WATER TUBE SEALING COVER TO GIMBAL HOUSING
  • 29
    32-32787 HOSE, EXHAUST - GIMBAL HOUSING
    HOSE, EXHAUST - GIMBAL HOUSING
  • 30
    54-815504352 CLAMP, EXHAUST HOSE TO GIMBAL HOUSING
    CLAMP, EXHAUST HOSE TO GIMBAL HOUSING
  • 31
    54-815504352 CLAMP, EXHAUST HOSE TO ENGINE
    CLAMP, EXHAUST HOSE TO ENGINE
  • 32
    27-70974 HASKET, GIMBAL HOUSING TO TRANSOM
    HASKET, GIMBAL HOUSING TO TRANSOM
  • --
    92-651501 SEALER, EXHAUST HOSE TO GIMBAL HOUSING
    SEALER, EXHAUST HOSE TO GIMBAL HOUSING
