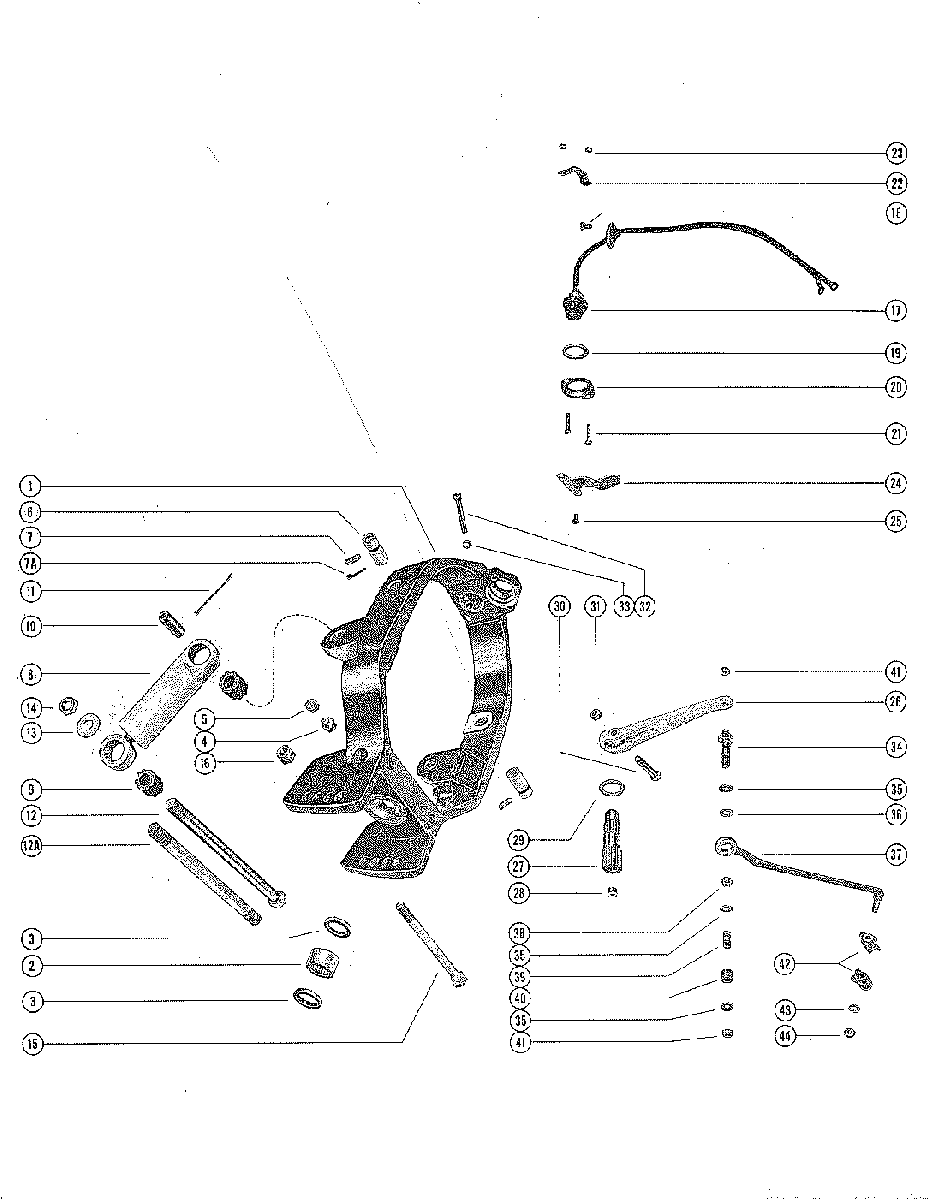

GIMBAL RING ASSEMBLY AND STEERING LEVER для Mercruiser - I 1963 1534570 THRU 1684187

№

Артикул

Название
1

78293A1 GIMBAL RING ASSEMBLY
SERIAL 00000000-01607918

GIMBAL RING ASSEMBLY
SERIAL 00000000-01607918
1

78293A1 GIMBAL RING ASSEMBLY
SERIAL 01607919-01684187

GIMBAL RING ASSEMBLY
SERIAL 01607919-01684187
2

31-32538 BEARING, ROLLER - GIMBAL RING

BEARING, ROLLER - GIMBAL RING
3

26-32541 OIL SEAL, GIMBAL RING

OIL SEAL, GIMBAL RING
4

22-69059 FITTING, GREASE - GIMBAL RING

FITTING, GREASE - GIMBAL RING
5

19-77633Q LUBRICAP, GIMBAL RING GREASE FITTING

LUBRICAP, GIMBAL RING GREASE FITTING
6

17-32566 PIN, HINGE - GIMBAL RING BELL HOUSING
SERIAL 00000000-01607918

PIN, HINGE - GIMBAL RING BELL HOUSING
SERIAL 00000000-01607918
6

17-34286 PIN, HINGE - GIMBAL RING TO BELL HOUSING
SERIAL 01607919-01684187

PIN, HINGE - GIMBAL RING TO BELL HOUSING
SERIAL 01607919-01684187
7

10-32571 SCREW, HINGE PIN RETAINING - GIMBAL RING
SERIAL 00000000-01537143

SCREW, HINGE PIN RETAINING - GIMBAL RING
SERIAL 00000000-01537143
7

10-33805 SCREW, HINGE PIN RETAINING - GIMBAL RING
SERIAL 01537144-01607918

SCREW, HINGE PIN RETAINING - GIMBAL RING
SERIAL 01537144-01607918
7A

18-35017 COTTER PIN, HINGE PIN RETAINING - GIMBAL RING
SERIAL 01607919-01684187

COTTER PIN, HINGE PIN RETAINING - GIMBAL RING
SERIAL 01607919-01684187
8

55-67356A1 SHOCK ABSORBER

SHOCK ABSORBER
9

23-32848 BUSHING, RUBBER - SHOCK ABSORBER

BUSHING, RUBBER - SHOCK ABSORBER
10

55-32607 PIN, SHOCK ABSORBER RO GIMBAL RING

PIN, SHOCK ABSORBER RO GIMBAL RING
11

18-35017 COTTER PIN, SHOCK ABSORBER PIN RETAINING - GIMBAL RING

COTTER PIN, SHOCK ABSORBER PIN RETAINING - GIMBAL RING
12

17-35779A1 BOLT, SHOCK ABSORBER TO DRIVE SHAFT HOUSING
SERIAL 00000000-01563601

BOLT, SHOCK ABSORBER TO DRIVE SHAFT HOUSING
SERIAL 00000000-01563601
12A

17-35779A1 STUD, SHOCK ABSORBER TO DRIVE SHAFT HOUSING
SERIAL 01563602-01684187

STUD, SHOCK ABSORBER TO DRIVE SHAFT HOUSING
SERIAL 01563602-01684187
13

12-28025 WASHER, SHOCK ABSORBER TO DRIVE SHAFT HOUSING BOLT OR STUD

WASHER, SHOCK ABSORBER TO DRIVE SHAFT HOUSING BOLT OR STUD
14

11-22339 NUT, SOCK ABSORBER TO DRIVE SHAFT HOUSING BOLT OR STUD
NOTE) WHEN USING B-16-33943 STUD , THE QUANTITY OF C-11-22339 NUT MUST BE INCREASED FROM 1 TO 2.

NUT, SOCK ABSORBER TO DRIVE SHAFT HOUSING BOLT OR STUD
NOTE) WHEN USING B-16-33943 STUD , THE QUANTITY OF C-11-22339 NUT MUST BE INCREASED FROM 1 TO 2.
15

17-35813A1 BOLT, TILT ADJUSTMENT - GIMBAL RING
SERIAL 00000000-01537143

BOLT, TILT ADJUSTMENT - GIMBAL RING
SERIAL 00000000-01537143
16

11-23161 NUT, TILT ADJUSTMENT BOLT
SERIAL 00000000-01537143

NUT, TILT ADJUSTMENT BOLT
SERIAL 00000000-01537143
15

17-35813A1 BOLT, TILT ADJUSTMENT - GIMBAL RING
SERIAL 01537144-01684187

BOLT, TILT ADJUSTMENT - GIMBAL RING
SERIAL 01537144-01684187
16

11-82670911 NUT, TILT ADJUSTMENT BOLT
SERIAL 01537144-01684187

NUT, TILT ADJUSTMENT BOLT
SERIAL 01537144-01684187
17

32688A1 TILT STOP SWITCH ASSEMBLY, GIMBAL RING

TILT STOP SWITCH ASSEMBLY, GIMBAL RING
18

10-20367 SCREW, TILT STOP SWITCH COVER TO GIMBAL RING

SCREW, TILT STOP SWITCH COVER TO GIMBAL RING
19

23-31902 SPACER, TILT STOP SWITCH TO RETAINING PLATE

SPACER, TILT STOP SWITCH TO RETAINING PLATE
20

31899 PLATE, RETAINING - TILT STOP SWITCH TO GIMBAL RING

PLATE, RETAINING - TILT STOP SWITCH TO GIMBAL RING
21

10-34994 SCREW, TILT STOP SWITCH RETAINING OPLATE AND STRAP TO GIMBAL

SCREW, TILT STOP SWITCH RETAINING OPLATE AND STRAP TO GIMBAL
22

32637 STRAP, TILT STOP SWITCH RETAINING

STRAP, TILT STOP SWITCH RETAINING
23

11-20110 NUT, TILT STOP SWITCH RETAINING AND STRAP SCREW

NUT, TILT STOP SWITCH RETAINING AND STRAP SCREW
24

49343 LEVER, TILT STOP SWITCH ACTUATING - GIMBAL RING

LEVER, TILT STOP SWITCH ACTUATING - GIMBAL RING
25

10-31903 SCREW, TILT STOP SWITCH ACTUATING LEVER TO GIMBAL RING

SCREW, TILT STOP SWITCH ACTUATING LEVER TO GIMBAL RING
26

88771A1 LEVER, STEERING - UPPER SWIVEL SHAFT

LEVER, STEERING - UPPER SWIVEL SHAFT
27

32582 SHAFT, UPPER SWIVEL - GIMBAL RING TO GIMBAL HOUSING

SHAFT, UPPER SWIVEL - GIMBAL RING TO GIMBAL HOUSING
28

22-32561 PLUG, PIPE - UPPER SWIVEL SHAFT

PLUG, PIPE - UPPER SWIVEL SHAFT
29

12-32996 WASHE, UPPER SWIVEL SHAFT (.015)

WASHE, UPPER SWIVEL SHAFT (.015)
29

12-32997 WASHER, UPPER SWIVEL SHAFT (.063)

WASHER, UPPER SWIVEL SHAFT (.063)
30

10-807204 SCREW, STEERING LEVER TO UPPER SWIVEL SHAFT

SCREW, STEERING LEVER TO UPPER SWIVEL SHAFT
31

11-20696 NUT, STEERING LEVER PTO UPPER SWIVEL SHAFT SCREW

NUT, STEERING LEVER PTO UPPER SWIVEL SHAFT SCREW
32

10-33022 SCREW, UPPER SWIVEL SHAFT RETAINING - GIMBAL RING

SCREW, UPPER SWIVEL SHAFT RETAINING - GIMBAL RING
33

12-20546 WASHER, UPPER SWIVEL SHAFT RETAINING SCREW

WASHER, UPPER SWIVEL SHAFT RETAINING SCREW
--

68291A2 LINK ROD ASEMBLY

LINK ROD ASEMBLY
34

16-32568 STUD, PIVOT - STEERING LEVER

STUD, PIVOT - STEERING LEVER
35

12-25909 WASHER, STEERING LEVER PIVOT STUD

WASHER, STEERING LEVER PIVOT STUD
36

12-29330 WASHER, NYLON - STEERING LEVER PIVOT STUD

WASHER, NYLON - STEERING LEVER PIVOT STUD
37

79278 ROD, STEERING LINK - STEERING LEVER PIVOT STUD

ROD, STEERING LINK - STEERING LEVER PIVOT STUD
38

29698 ,BALL, STEEL - STEETING LEVER PIVOT STUD

,BALL, STEEL - STEETING LEVER PIVOT STUD
39

24-20510 SPRING, STEERING LEVER PIVOT STUD

SPRING, STEERING LEVER PIVOT STUD
40

23-31293 BUSHING, STEERING LEVER PIVOT STUD

BUSHING, STEERING LEVER PIVOT STUD
41

11-8M0042636 NUTM STEERING LEVER PIVOT STUD

NUTM STEERING LEVER PIVOT STUD
42

27872 COUPLER HALVES, STEERING LINK ROD - CABLE END

COUPLER HALVES, STEERING LINK ROD - CABLE END
43

12-20086 WASHER, STEERING LINK ROD

WASHER, STEERING LINK ROD
44

11-8M0042636 NUT, STEERING LINK ROD

NUT, STEERING LINK ROD
