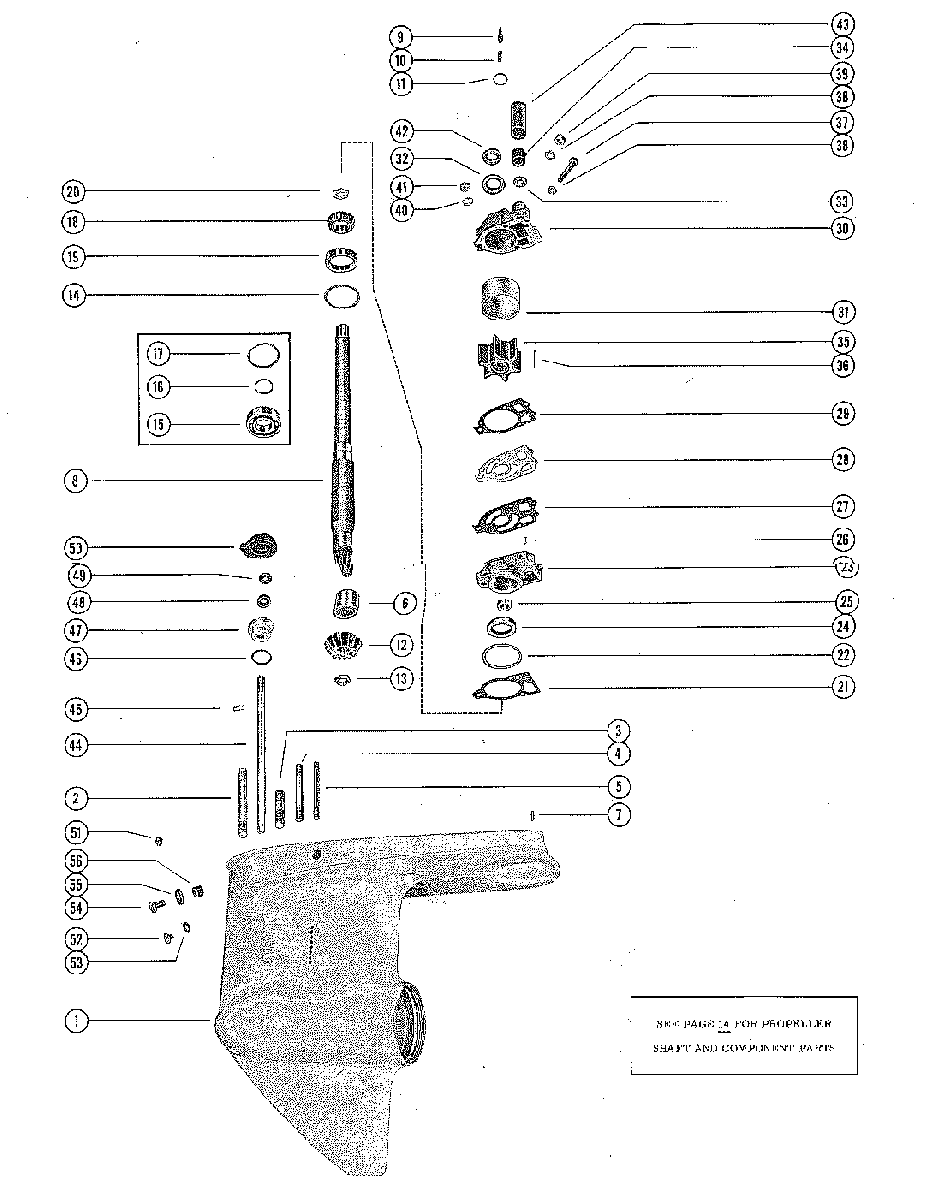

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercruiser - I 1963 1534570 THRU 1684187

  • №
    Артикул
    Название
  • -
    1623-2078A3 GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • -
    1623-2078A3 GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • -
    1623-2078A3 GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • 1
    1623-2022A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 1
    1623-2078A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    16-46911 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 3/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 3/16")
  • 3
    16-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")
  • 4
    16-30669 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4")
  • 5
    16-306671 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
  • 6
    31-32898T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 6
    31-32898T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 7
    17-21438 PIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSING
    PIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 8
    45-32594 DRIVE SHAFT
    DRIVE SHAFT
  • 8
    45-38579A2 DRIVE SHAFT ASSEMBLY
    DRIVE SHAFT ASSEMBLY
  • 8
    45-38579A1 DRIVE SHAFT ASSEMBLY
    DRIVE SHAFT ASSEMBLY
  • 9
    17-30545 PIN, DRIVE SHAFT
    PIN, DRIVE SHAFT
  • 10
    24-20254 SPRING, COMPRESSION - DRIVE SHAFT
    SPRING, COMPRESSION - DRIVE SHAFT
  • 10
    24-34576 SPRING, COMPRESSION - DRIVE SHAFT
    SPRING, COMPRESSION - DRIVE SHAFT
  • 11
    25-30613 "O" RING, UPPER - DRIVE SHAFT
    "O" RING, UPPER - DRIVE SHAFT
  • 12
    43-31419 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 12
    43-55425 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 13
    11-30932 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 14
    15-30278A1 SHIM, DRIVE SHAFT BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, DRIVE SHAFT BEARING TO GEAR HOUSING (.002-3-5-10)
  • 14
    15-57007A1 SHIM, DRIVE SHAFT BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, DRIVE SHAFT BEARING TO GEAR HOUSING (.002-3-5-10)
  • 15
    30464 BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 16
    53-30726 RING, RETAINING - BALL BEARING
    RING, RETAINING - BALL BEARING
  • 17
    15-30278A1 SHIM, DRIVE SHAFT BEARING TO WATER PUMP BASE (.002-3-5-10)
    SHIM, DRIVE SHAFT BEARING TO WATER PUMP BASE (.002-3-5-10)
  • 18
    31-33138A1 TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
    TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
  • 18
    31-34448A1 TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
    TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
  • 19
    31-33139 CUP, TAPERED ROLLER BEARING
    CUP, TAPERED ROLLER BEARING
  • 20
    11-33672 NUT, ROLLER BEARING TO DRIVE SHAFT
    NUT, ROLLER BEARING TO DRIVE SHAFT
  • 21
    27-32438 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 21
    27-856704 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 22
    25-30224 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 22
    25-33145 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 23
    46-48758A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 23
    46-33132A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 23
    46-48762A4 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 24
    26-94038 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 24
    26-89238 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 25
    26-16977 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 26
    17-29596T DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
  • 27
    27-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
  • 28
    324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
  • 29
    27-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
  • 30
    46-96148A8 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 31
    30915 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 32
    26-16977 OIL SEAL, WATER PUMP BODY
    OIL SEAL, WATER PUMP BODY
  • 33
    12-36446 WASHER, WATER PUMP BODY
    WASHER, WATER PUMP BODY
  • 34
    26-36557 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 35
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 36
    17-8M0034466 PIN, IMPELLER DRIVE
    PIN, IMPELLER DRIVE
  • 37
    10-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4)
    SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4)
  • 38
    13-26992 LOCKWASHER, WATER PUMP BODY SCREW AND STUDS (1/4)
    LOCKWASHER, WATER PUMP BODY SCREW AND STUDS (1/4)
  • 39
    11-29598 NUT, WATER PUMP BODY STUDS (1/4)
    NUT, WATER PUMP BODY STUDS (1/4)
  • 40
    13-26993 LOCKWASHER, WATER PUMP BODY STUD (5/16)
    LOCKWASHER, WATER PUMP BODY STUD (5/16)
  • 41
    11-28770 NUT, WATER PUMP BODY STUD (5/16)
    NUT, WATER PUMP BODY STUD (5/16)
  • 42
    25-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 43
    23-29804T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 44
    25136 SHAFT, SHIFT - LOWER
    SHAFT, SHIFT - LOWER
  • 45
    53-29641 CLIP, RETAINING - SHIFT SHAFT
    CLIP, RETAINING - SHIFT SHAFT
  • 46
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 47
    23-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 48
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 49
    12-31266 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 50
    32544 STOP, SHIFT SHAFT
    STOP, SHIFT SHAFT
  • 51
    22-390721 PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE
    PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE
  • 52
    10-79953Q04 SCREW, GEAR HOUSING GREASE FILLER AND VENT HOLE
    SCREW, GEAR HOUSING GREASE FILLER AND VENT HOLE
  • 53
    12-191833 WASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREW
    WASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREW
  • 54
    10-29608 SCREW, GEAR HOUSING FLUSHING HOLE
    SCREW, GEAR HOUSING FLUSHING HOLE
  • 55
    27-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREW
    GASKET, GEAR HOUSING FLUSHING HOLE SCREW
  • 56
    26-29612 SEAL, GEAR HOUSING FLUSHING HOLE SCREW
    SEAL, GEAR HOUSING FLUSHING HOLE SCREW
